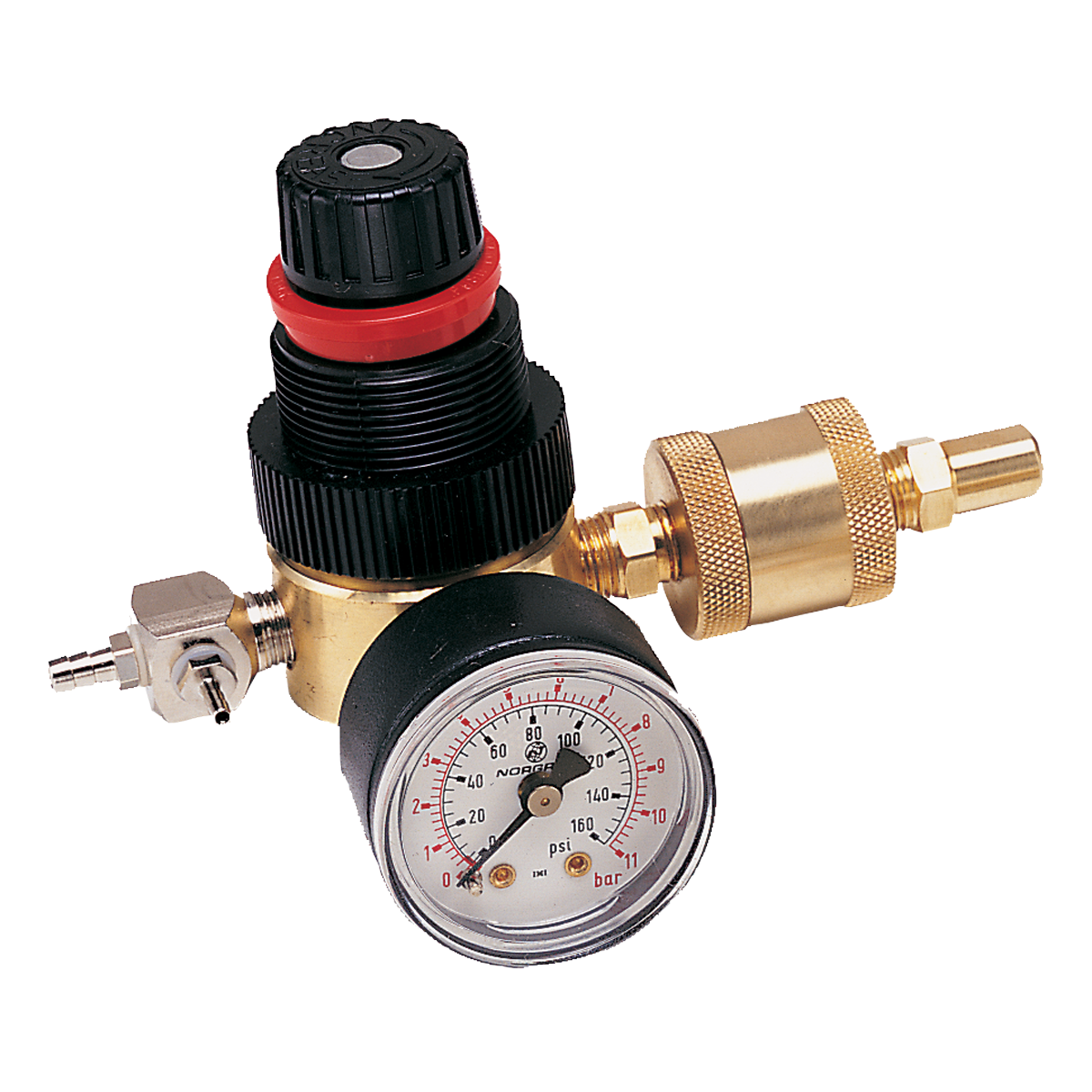

Air/Water Regulator With Filter Assembly
Product Number:
07-06
Regulator with filter and gauge assembly for air/water pressure up to 125 PSI. Precisely control the pressure of the air and water supply going to the delivery unit. There will be one regulator for air and one for water.
These regulators will have a pressure adjustment should you need to adjust the air or water pressure. Normally the adjustment valve screws in (clockwise) to increase the pressure and out (counter-clockwise) to decrease the pressure. REMEMBER: Whenever adjusting the pressure, make certain to have an “active flow”- most easily accomplished by holding down the air or water button on your syringe while adjusting the corresponding regulator.
Gauges display the pressure of air or water in pounds per square inch (PSI) being sent to the unit. For most delivery units, proper supply pressure is 80 PSI for air – 40 PSI for water.
Air/Water regulator with filter assembly includes: (1) 3 barb port (#14-63), (2) port plugs (#14-64), (1) 1/8 MPT X 3/8" nipple connector (#13-62), 1/4" and 1/8" barbs, tubing connectors, and clamps.
Replacement Parts:
Regulator with filter and gauge assembly for air/water pressure up to 125 PSI. Precisely control the pressure of the air and water supply going to the delivery unit. There will be one regulator for air and one for water.
These regulators will have a pressure adjustment should you need to adjust the air or water pressure. Normally the adjustment valve screws in (clockwise) to increase the pressure and out (counter-clockwise) to decrease the pressure. REMEMBER: Whenever adjusting the pressure, make certain to have an “active flow”- most easily accomplished by holding down the air or water button on your syringe while adjusting the corresponding regulator.
Gauges display the pressure of air or water in pounds per square inch (PSI) being sent to the unit. For most delivery units, proper supply pressure is 80 PSI for air – 40 PSI for water.
Air/Water regulator with filter assembly includes: (1) 3 barb port (#14-63), (2) port plugs (#14-64), (1) 1/8 MPT X 3/8" nipple connector (#13-62), 1/4" and 1/8" barbs, tubing connectors, and clamps.
Replacement Parts:
