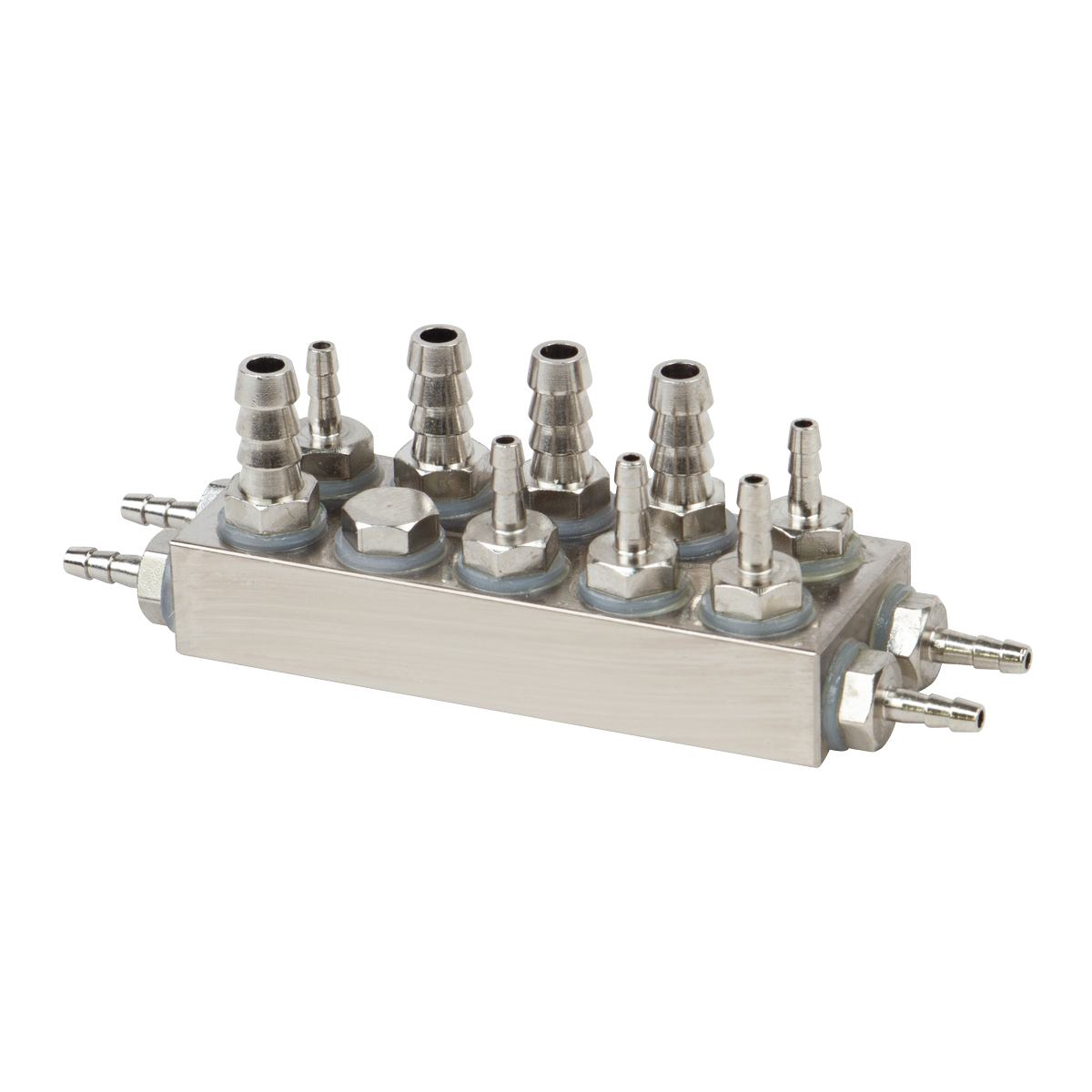

Manifold Routing Block
Price
Regular price
$46.95
Quantity
Couldn't load pickup availability
Manifold routing block routes main supply of water and air in delivery unit.
How Does It Work?
On most units (Marus, Beaverstate, DCI, etc.) the air outlet line from the foot control connects to a single large line at the end of the umbilical, which then connects to a routing manifold. The routing manifold then splits the drive air to send air to the air coolant adjustment knob, an air signal to the water on/off toggle (and then to the water relay), as well as a line to the drive air port of the handpiece block. Read more in Practice Tip #61.
Product Details:
- Has 4 ports in (supply) with 2 ports out.
- Ports accept barbs or barb port plugs.
- Includes: barbs (#14-01 or #14-02), sleeves (#14-90 or #14-91), and gaskets (#14-92).
- Port plugs are NOT included (#14-64).
Installation Instructions (PDF)
