NXT Hg5 Separation System (#AL-50)

Capacity: Designed for 1-10 operatories

Configuration: Standard size with 1½" inlet and outlet ports

Installation: Floor or wall mounted

Containers Required: One collection container

Best For: Standard dental practices with moderate patient volume

NXT Hg5 Mini Amalgam Separation System (#AL-52)

Capacity: Designed for 1-4 operatories

Configuration: Compact size with ¾" inlet and outlet diameter

Installation: Under counter, under sink, wall or floor mounted

Containers Required: One collection container

Best For: Smaller practices, tight spaces, or limited installation areas

Hg5 High Volume Separation System (#AL-54)

Capacity: Designed for 11-20 operatories

Configuration: Large capacity with 3" inlet and outlet ports

Installation: Wall mounted only

Containers Required: Two collection containers (unlike standard and mini models)

Best For: Large practices, dental schools, clinics with high patient volume

Important Note: This collection container is NOT compatible with legacy Hg5 systems (pre-NXT models). For legacy systems, use HG5-002CR replacement containers. Ensure you have the correct replacement container on hand before removing the existing container from your system.

Federal EPA Requirements

The EPA's Dental Effluent Guidelines (40 CFR Part 441), effective July 14, 2017 with a compliance date of July 14, 2020, require all dental practices that place or remove amalgam to install and maintain amalgam separators achieving at least 95% removal efficiency. The NXT Hg5 system, using this collection container, is certified to exceed this requirement with more than 99% separation rate.

Key EPA Requirements:

• Install and maintain ISO 11143:2008 certified or ANSI/ADA Standard No. 108 amalgam separator (95% minimum efficiency)
• Replace collection containers per manufacturer specifications or when design capacity is reached, whichever comes first
• Maintain documentation of inspections, maintenance, and recycling for minimum three years
• Use only line cleaners with pH between 6.0 and 8.0 (no oxidizing or acidic cleaners)
• Submit One-Time Compliance Report to local water authority
• Properly collect and recycle all scrap amalgam waste

Replacement Schedule Requirements

To maintain EPA compliance and ensure optimal performance, collection containers must be replaced according to specific guidelines:

Replace container when:

• Solids reach the clearly marked fill line on the container
• 12 months have elapsed since installation (whichever occurs first)

Why the 12-month maximum? After 12 months, the manufacturer cannot guarantee the 99% separation rate required for EPA compliance due to natural deterioration of the restrictor within the collection container. Regular replacement ensures continuous compliance and protects against system bypass.

Inspection Requirements: Visual inspection of the collection container should be conducted weekly to monitor sediment levels. The clear design of this container makes visual inspection quick and easy without opening the system.

Documentation & Record Keeping

This recycling kit simplifies compliance documentation through the included online access to the My Solutions Center portal, where you can:

• Print recycling shipping labels for UPS return
• Access recycling certificates 24/7
• Download compliance documentation for inspections
• Track container replacement dates
• Maintain three-year documentation history as required by EPA

The recycling certificate provided documents the name and address of the collection service, the amount by weight of dental amalgam waste collected, the date collected, and certification that mercury was destined for recycling at an EPA-approved facility - all required elements for regulatory compliance.

Step-by-Step Replacement Process

Replacing the collection container is a simple, tool-free process that takes approximately 2 minutes:

Recycling the Used Container

The included recycling kit makes disposal simple and compliant:

1. Place the used collection container in the original packaging (save the box when you receive the new container)
2. Access your My Solutions Center account at solmetex.com to print your pre-paid UPS shipping label
3. Affix the shipping label to the package
4. Drop off at any UPS location or schedule a pickup
5. Access your recycling certificate online within days of the recycling facility receiving your container
6. Download and save the certificate for your three-year compliance records

Pro Tip: Set up a subscription service through your dealer for automatic delivery of replacement containers based on your practice's typical usage schedule. This ensures you always have a replacement on hand when needed.

Superior Performance & Reliability

This collection container is part of a system engineered to deliver industry-leading performance. The NXT Hg5 series is certified to remove more than 99% of amalgam solids from wastewater, significantly exceeding the EPA's 95% minimum requirement. This superior separation rate provides an extra margin of compliance safety while maximizing environmental protection.

The robust, professionally engineered design ensures reliable operation throughout the container's service life. The internal restrictor and filtration components maintain consistent performance until the 12-month replacement point or fill line is reached, providing predictable, maintenance-free operation.

Complete Value Proposition

Unlike some competitors that charge separately for recycling services, this collection container includes the complete recycling solution in the purchase price. The pre-paid UPS shipping, EPA-approved recycling facility processing, and online documentation access are all included - no hidden fees or additional disposal costs.

This all-inclusive approach simplifies budgeting and eliminates the administrative burden of coordinating separate recycling services. Your practice gets a complete turnkey solution from purchase through final recycling documentation.

Simplified Compliance Management

The 24/7 online access to recycling certificates and compliance documentation through My Solutions Center transforms what could be a complex record-keeping challenge into a simple digital solution. During inspections or audits, you can instantly produce the required documentation demonstrating proper amalgam waste management.

The clear container design supports the visual inspection requirements mandated by EPA regulations and recommended by many local water authorities. Weekly inspections take seconds, and the clearly marked fill lines eliminate guesswork about replacement timing.

Environmental Stewardship

By properly capturing and recycling amalgam waste, this collection container system prevents mercury from entering community waterways where it can transform into toxic methylmercury and accumulate in fish and shellfish. According to EPA estimates, dentistry accounts for approximately 5.1 tons of mercury discharged to wastewater treatment facilities annually - mercury that these systems can effectively capture.

The eco-friendly packaging design reflects environmental responsibility throughout the product lifecycle. The 100% recyclable packaging serves dual purposes - protecting the new container during shipping and providing proper containment for returning the used container to the recycling facility.

How often should I replace the collection container?

Replace the collection container when solids reach the marked fill line OR every 12 months, whichever occurs first. The 12-month maximum is critical because the manufacturer cannot guarantee the 99% separation rate after this period due to natural deterioration of internal components. Weekly visual inspections help you monitor sediment levels and plan for timely replacement.

Is the recycling service really included in the price?

Yes, absolutely. Each replacement collection container includes a complete recycling kit with pre-paid UPS shipping to an EPA-approved recycling facility. The cost of recycling, shipping labels, and online certificate access are all included in the purchase price. There are no additional fees for the recycling service.

How do I access my recycling certificates?

Recycling certificates are available 24/7 through the My Solutions Center online portal at solmetex.com. After your used container is received and processed by the recycling facility, you can log in to your account to view, download, and print your certificate. These certificates include all information required for EPA compliance documentation and can be accessed at any time for inspections or audits.

Will this container fit my existing Hg5 system?

This container is specifically designed for the NXT Hg5 series systems, including the NXT Hg5 Separation System (#AL-50), NXT Hg5 Mini (#AL-52), and Hg5 High Volume (#AL-54). It is NOT compatible with legacy Hg5 systems (pre-NXT models). If you have a legacy system, you need the HG5-002CR replacement container instead. Check your system model before ordering to ensure compatibility.

Do I need any tools to replace the container?

No tools are required. The collection container uses a simple pin-release mechanism that allows for quick, tool-free replacement. The entire process takes approximately 2 minutes and can be performed by any trained staff member. Simply remove the two pins, pull down the old container, install the new container ensuring proper O-ring seal, and replace the pins.

What should I do with the packaging when the new container arrives?

Save the packaging! The box and packing materials are designed to be reused for shipping the used container back to the recycling facility. The eco-friendly packaging serves dual purposes - protecting the new container during delivery and providing proper containment for recycling. When it's time to recycle your used container, you'll place it in this same packaging, print your pre-paid shipping label, and send it via UPS.

How many containers does the High Volume system need?

The Hg5 High Volume Separation System (#AL-54) requires TWO collection containers, unlike the standard and mini models which use only one. If you have a High Volume system serving 11-20 operatories, you'll need to order two replacement containers when it's time for replacement. Both containers should be replaced at the same time to maintain system balance and performance.

What if I lost the packaging for my used container?

If you didn't save the original packaging, you can purchase a separate recycling kit from the manufacturer. Contact the manufacturer's sales team at 877-207-1551 to order replacement recycling packaging. However, alternative packaging cannot be used safely - you must use the proper recycling kit packaging to ensure safe transport of the mercury-containing waste.

Does this meet all EPA and state requirements?

Yes. This collection container is part of a system certified to ISO 11143:2008 standards, meeting and exceeding all EPA requirements for amalgam separation. The system achieves more than 99% removal efficiency, surpassing the EPA's 95% minimum requirement. When used according to manufacturer guidelines with proper replacement schedules, this container helps your practice maintain full compliance with federal EPA regulations and state requirements for mercury removal from dental wastewater.

Can this ship to Canada?

At this time, this product cannot ship to Canada. The recycling program and pre-paid shipping included with this kit are designed for the U.S. market only. Canadian customers should contact the manufacturer directly to inquire about collection containers with appropriate recycling programs for Canadian regulations.

Maintaining Optimal System Performance

To ensure your NXT Hg5 system continues to operate at peak efficiency and maintain EPA compliance:

• Conduct Weekly Visual Inspections: Check sediment levels through the clear container walls. Document inspection dates and observations in your maintenance log.
• Replace on Schedule: Never exceed the 12-month maximum or fill line, whichever comes first. Order replacement containers in advance to avoid running out.
• Use Approved Line Cleaners: Only use vacuum line cleaners with pH between 6.0 and 8.0. Avoid oxidizing or acidic cleaners (bleach, chlorine, iodine, peroxide) as these can leach mercury from captured amalgam and void your warranty.
• Verify Proper Seal: After installing a new container, check vacuum gauge readings to ensure O-rings sealed properly. Low vacuum may indicate improper seal.
• Keep Documentation: Maintain three-year records of all inspections, replacements, and recycling certificates as required by EPA regulations.
• Save Packaging: Always retain the container packaging for recycling the used container.
• Consider Subscription Service: Set up automatic delivery based on your practice's usage patterns to ensure you always have a replacement available.

Comprehensive Amalgam Waste Management

While this collection container captures amalgam from your vacuum system wastewater, remember that EPA Best Management Practices require proper handling of ALL amalgam waste:

• Chair-Side Traps: Empty regularly and recycle contents in appropriate amalgam waste containers
• Vacuum Pump Filters: Replace according to manufacturer schedules and recycle through approved services
• Scrap Amalgam: Collect in designated containers (never flush down drains or dispose in regular trash)
• Used Capsules: Store separately and recycle through amalgam recycling services
• Extracted Teeth with Amalgam: Collect and recycle - never dispose in biohazard waste
• Never Flush: Do not discharge any amalgam waste directly to drains, including from chair-side traps, screens, or collection devices

The collection container is one component of a comprehensive amalgam waste management program. Combining proper separator maintenance with best management practices for all amalgam waste ensures full regulatory compliance and environmental protection.

Essential for: NXT Hg5 Separation System (#AL-50) | NXT Hg5 Mini (#AL-52) | Hg5 High Volume (#AL-54)

Replace: When solids reach fill line or every 12 months (whichever comes first)

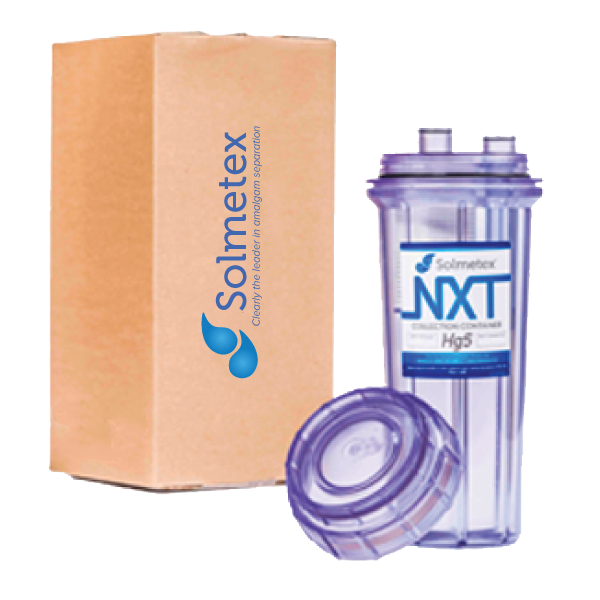

Product: Solmetex N XT Hg5 Collection Container Recycling Kit

Manufacturer: Solmetex

Includes: Collection container, pre-paid recycling mailer, disposal packaging, online documentation access

Shipping: Ships from manufacturer - allow 3-5 additional days processing time

Essential Maintenance Reminder

To maintain optimal performance and EPA compliance, remember these critical replacement guidelines:

• Visual Inspection: Weekly monitoring recommended to track sediment levels
• Replacement Timing: When solids reach fill line OR 12 months - whichever comes first
• Documentation: Keep 3-year records of all replacements and recycling certificates
• Stock Ahead: Always have a replacement container on hand before the current one needs changing

Proper maintenance ensures continuous 99%+ separation efficiency, protects your vacuum equipment, and keeps your practice in full regulatory compliance.

Complete Amalgam Waste Solution

The Solmetex NXT Hg5 Collection Container Recycling Kit delivers a comprehensive, hassle-free solution for dental practices committed to environmental responsibility and regulatory compliance. With included recycling, instant documentation access, and proven performance exceeding EPA standards, this replacement container makes amalgam waste management simple, compliant, and cost-effective.
