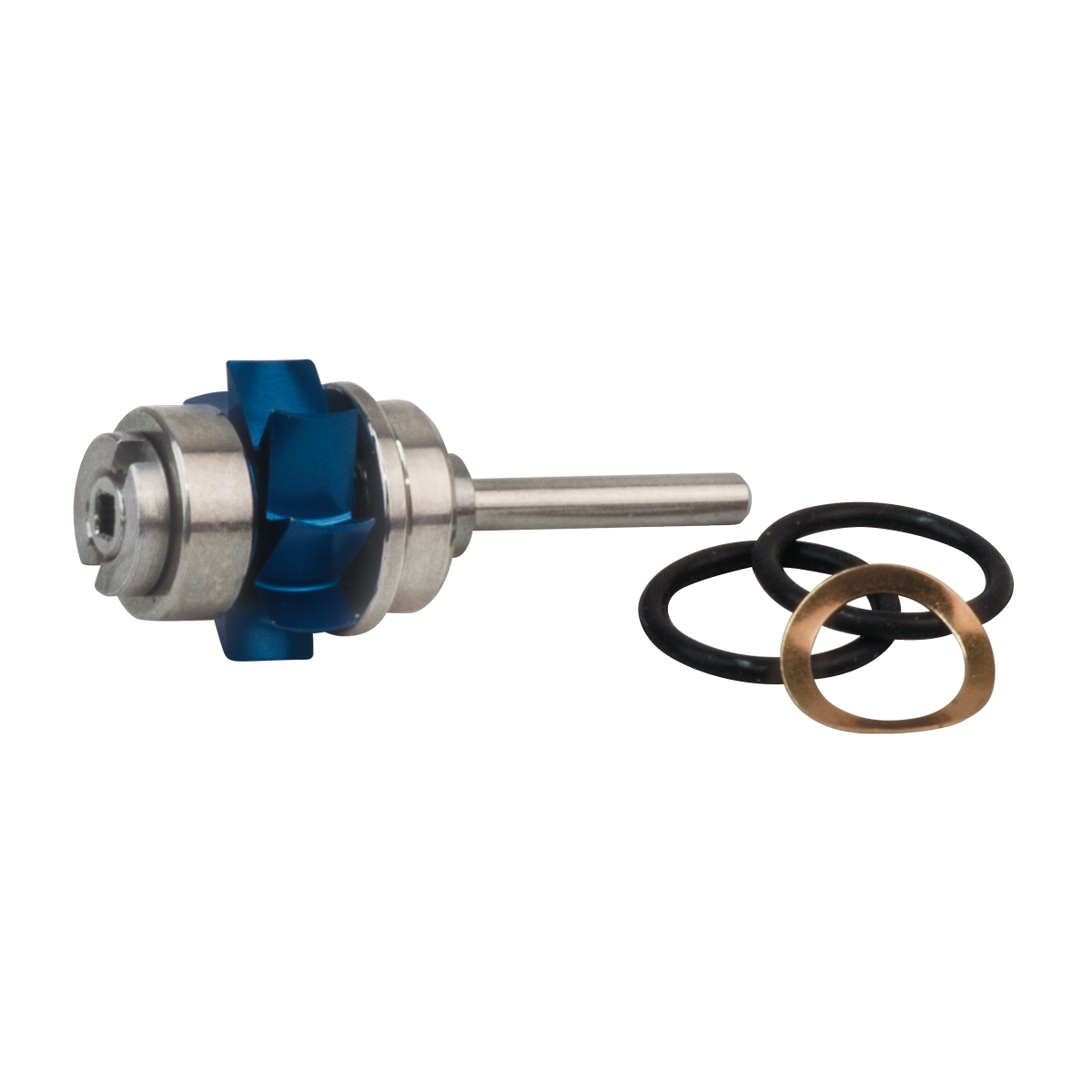

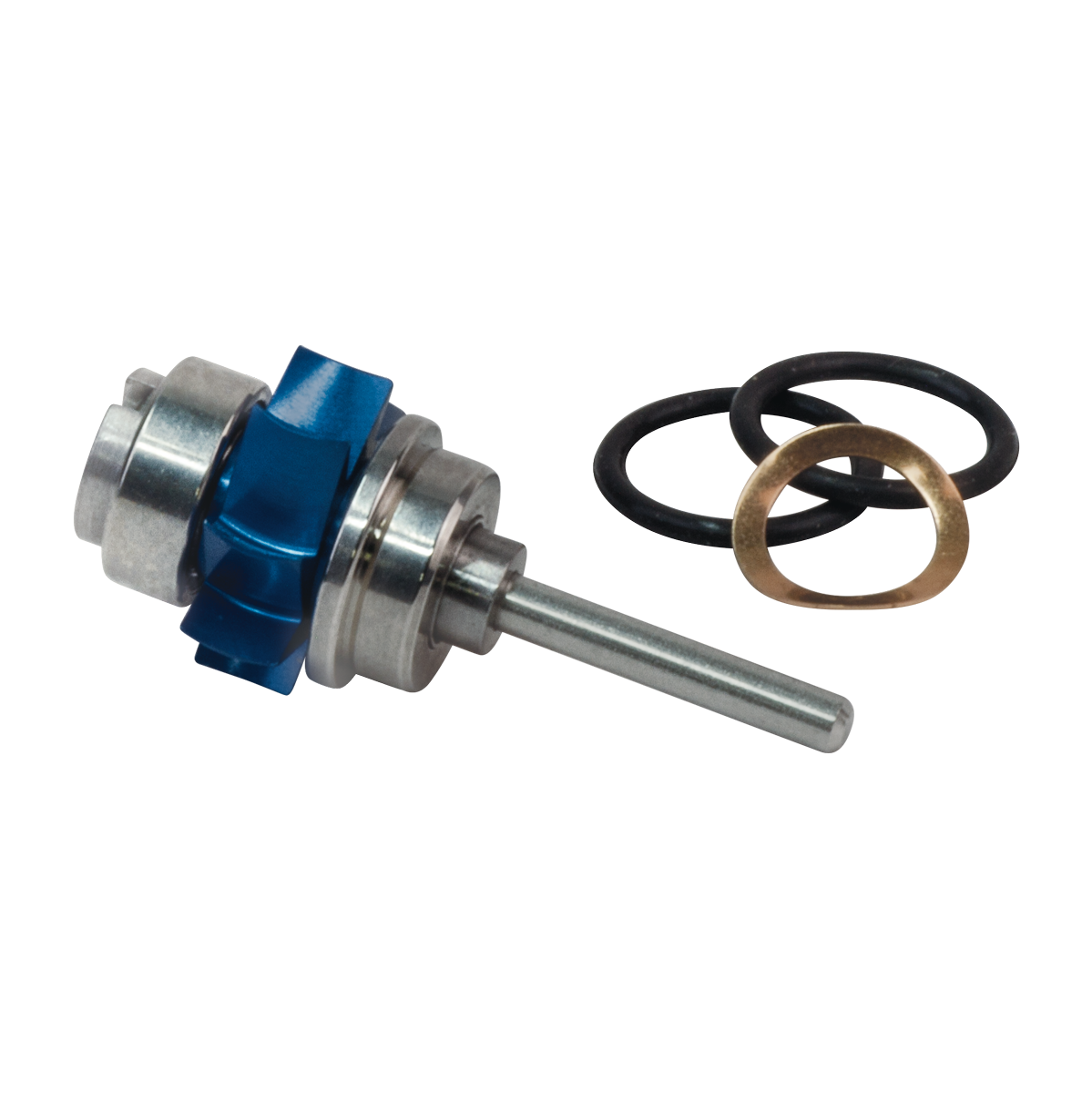

Midwest Tradition Lubefree Turbine
SALE
Midwest Tradition Lubefree Turbine

Midwest Tradition Lubefree Turbine

$85.85
Regular price $100.95 Sale price

SKU#:

15-831
Unit price  per

Midwest Tradition Lubefree turbine is a wrench chuck style. Works with both the fiber optic and the non-fiber optic Midwest Tradition high-speed handpieces. Does NOT include an end cap (#15-83-C).

Made in USA. Has a 6 month warranty.

Installation Instructions (PDF):

  1. Using specialized wrench provided with your handpiece, unscrew cap from handpiece head and remove worn turbine by pushing out from the front.
  2. Inspect interior of head for foreign material and debris and then move if present.
  3. Compare worn turbine to new turbine to identify any components that may still be present in your handpiece. Use a scaler or explorer to remove all old turbine components including any shims, o-rings, washers or bearing retainers.
  4. Once all old turbine components have been removed, use a cotton swab and handpiece lubricant to clean handpiece head. Using air from the air/water syringe, blow out handpiece head to remove any cotton fibers.
  5. You may need to use a scaler or explorer to remove the old o-rings. Ensure old o-rings are completely removed and the new ones are not mis-aligned, twisted, or otherwise out of place.
  6. Holding handpiece face down, insert turbine fully into handpiece head. Using the appropriate tool, screw end cap down until flush against handpiece head.
  7. Finally securely tighten the end cap with wrench to ensure safe positioning of turbine. If you are unable to fully seat the end cap, remove and check the end cap for debris/old turbine components.

Replacement Parts for Midwest Tradition Lubefree Turbine: end cap wrench (#15-97-W), bur wrench (#15-71), turbine o-rings (#15-82-OR), bearings (#25-221), spindle (#25-302), impeller (#25-402), & chuck (#15-852). For other parts available, please call.
