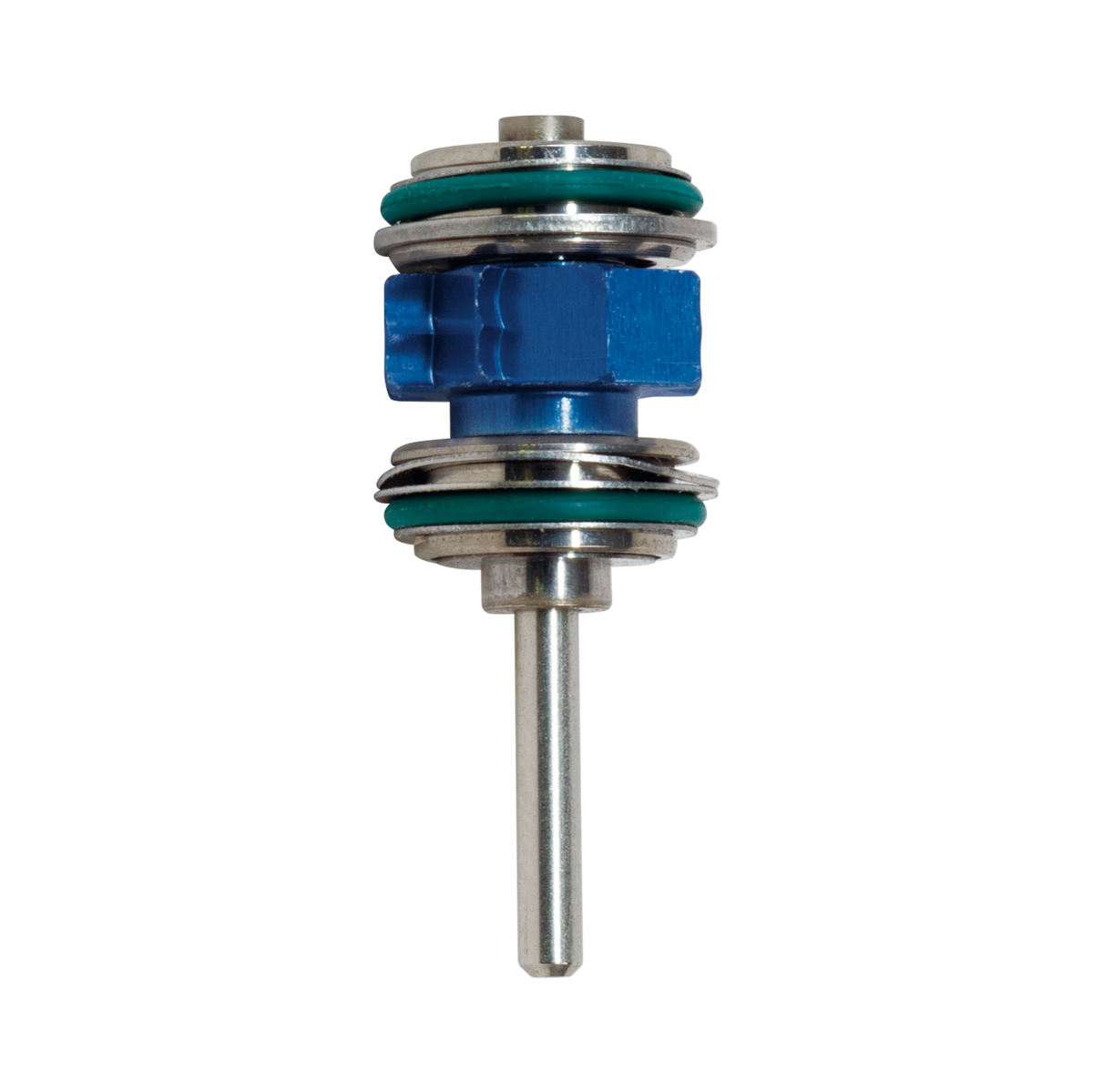

Star 430 Push Button Turbine

Replacement Star 430 push button turbine for high-speed dental handpieces.

Product Details:

• End cap NOT included.
• Six month warranty.
• Made in the USA.

Replacement Parts:

• End cap (#15-85-C)
• End cap o-ring (#15-85-O)
• End cap wrench (#15-97-W)
• Turbine o-rings (#15-87-OR)
• Bearings (#25-203)
• Spindle with chuck and impeller (#25-306)

Instructions (PDF):

1. Using a specialized wrench provided with your high-speed handpiece, unscrew cap from handpiece head.
2. Remove worn Star 430 turbine, by pushing out from the front.
3. Use appropriate tool to remove the end cap.
4. Clean interior of head of foreign material and debris.
5. Use scaler or explorer instrument to remove old turbine components (ie: shims, o-rings, washers, or bearing retainers).
6. Take a cotton swab and lubricate handpiece, so you have a clean area.
7. Use the air from your air/water syringe to blow out handpiece head, so you remove any cotton fibers placed during cleaning.
8. Then generously lubricate turbine.
9. Hold handpiece face down and then carefully insert the Star 430 push button turbine into the handpiece head.
10. Once the turbine is seated, use the appropriate tool to screw the end cap down, so it is flush against the handpiece head.
11. Secure the end cap tightly with a wrench, so the handpiece turbine is in a safe positioning. If you are unable to fully seat the end cap, remove and check the end cap for debris/old turbine components.

NOTE: Before operating your Star 430 handpiece, install a disposable bur into the turbine. Roll the bur between fingers, in order to make sure the bearing turns freely. If you feel any resistance, remove turbine and reinstall. Don't operate your handpiece, if turbine is still being difficult to install.
