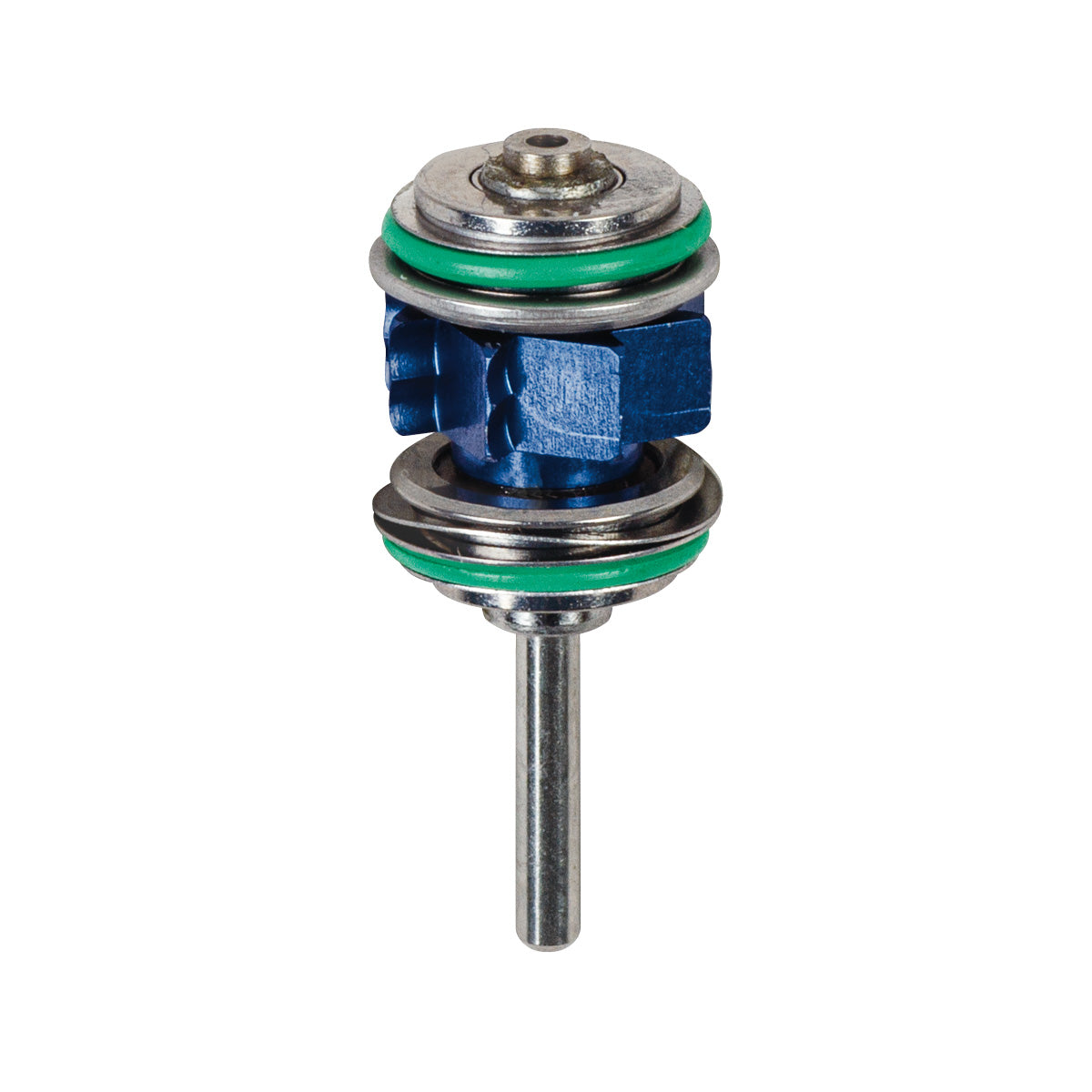

Star 430 Ceramic Lube Free Push Button Turbine

Lube free, push button style turbine for use with the Star 430 high-speed dental handpiece. Built with fully ceramic myonic and GRW lube free (LF) bearings. Does NOT include an end cap.

Made in USA. Six month repair warranty on turbine.

Replacement Parts:

• End cap (#15-85-C)
• End cap wrench (#15-97-W)
• Turbine o-rings (#15-87-OR)
• Bearings (#25-203)
• Spindle with chuck and impeller (#25-306)

Installation Instructions (PDF):

1. Using the specialized wrench provided with your handpiece, unscrew cap from handpiece head and remove worn turbine by pushing out from the front.
2. Remove any foreign material and debris.
3. Compare worn turbine to new turbine to identify any components that may still be present in your handpiece. Use a scaler or explorer to remove all old turbine components including any shims, o-rings, washers, or bearing retainers.
4. Once all old turbine components have been removed, use a cotton swab and handpiece lubricant to clean handpiece head. Using air from the air/water syringe, blow out handpiece head to remove any cotton fibers.
5. Generously lubricate the new turbine.
6. Holding the handpiece face down, carefully insert the turbine fully into the handpiece head.
7. Once the turbine is fully seated, use the appropriate tool to screw the end cap down until flush against the handpiece head.
