Syringe Button (DCI/A-dec Style)

Brand:

American Dental Accessories

SKU#:

01-35
Price
Regular price $11.95
Quantity

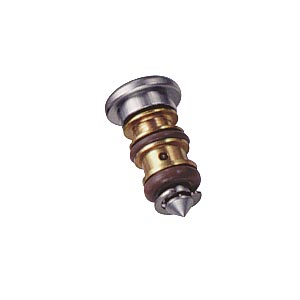

DCI/A-dec style air/water syringe button is held in by a holding pin and uses a spring. Does not include a spring.

Syringe button is compatible with major manufacturers including: A-dec®, Uniflow, DCI, Dentech, Proma, Ampco, and Pelton Crane. Works with our air/water syringes (#01-01Q and #01-85).

Instuctions on Replacing the Syringe Button:

  1. Remove retaining pin by pressing buttons down. Use the skinny end of a metalic syringe tip or a stiff paper clip to push the pin out. Take pliers to remove the remainder of the pin.
  2. Once the buttons are removed out of the syringe, then you can return the syringe spring back into the head of the syringe. The small end of the spring should be facing outwards toward the bottom of the buttons.
  3. Place new buttons back into the air/water syringe.
  4. Hold down both syringe buttons and return the syringe pin back into the syringe.

Replacement Parts:
