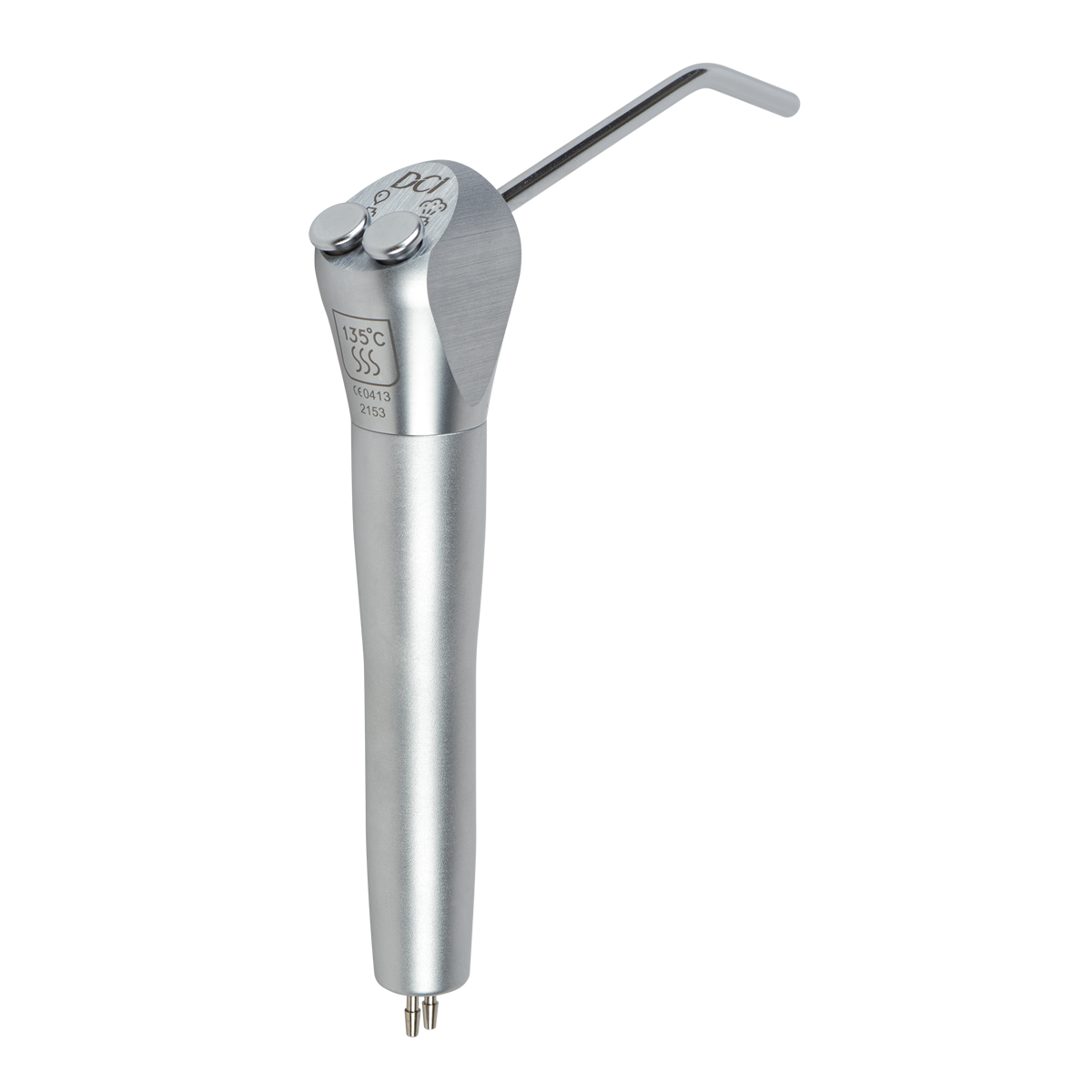

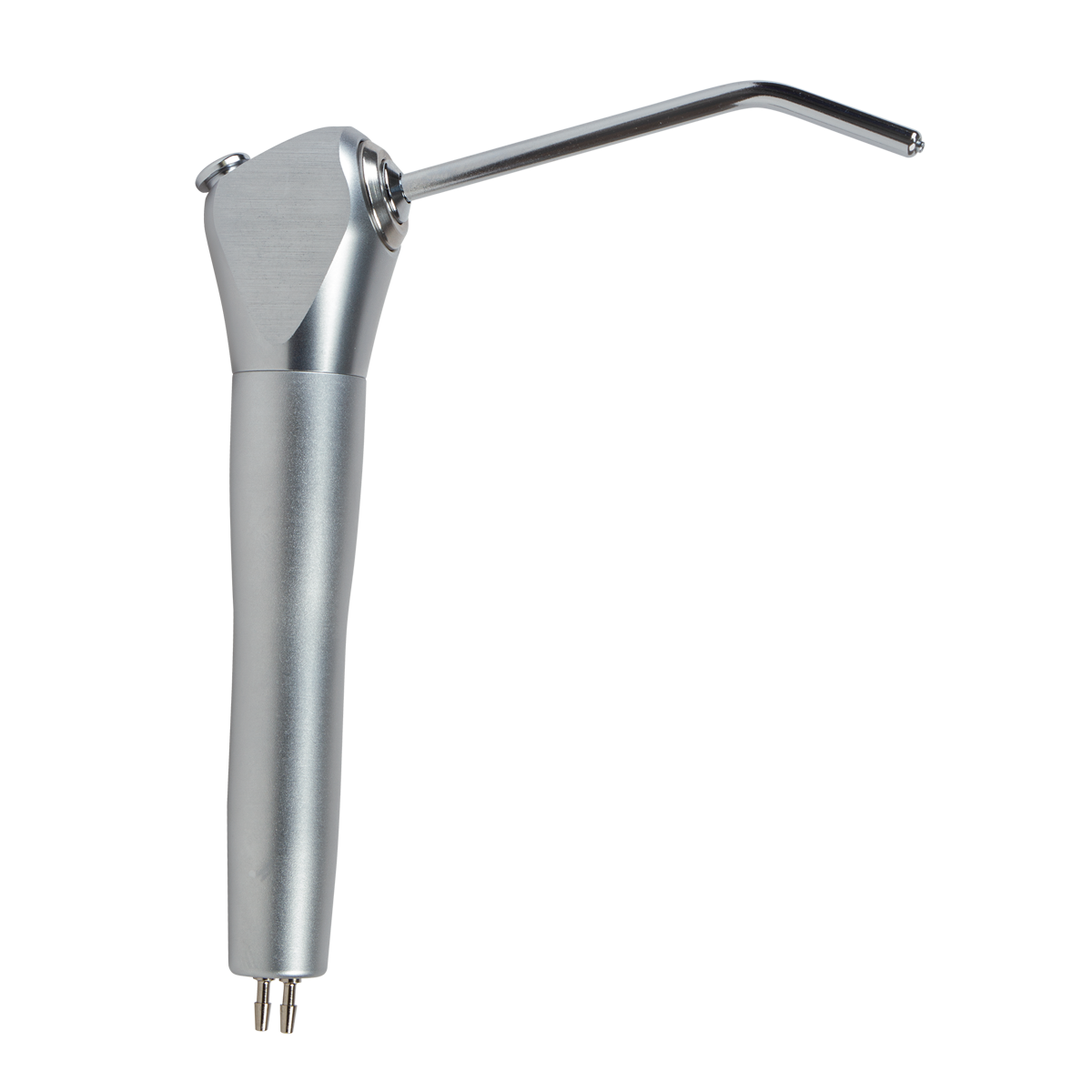

DCI Quick Disconnect Air/Water Syringe

DCI Quick Disconnect universal air/water syringe will attach to all delivery units and uses any universal tip (disposable and autoclavable).

Product Features:

• Syringe has a push collar tip release.
• Automatic shut-off for air and water when removed from the tubing.
• High quality plated brass construction. Autoclavable.
• One year warranty.

Installation Instructions for Quick Disconnect Air/Water Syringe (PDF):

1. Shut delivery unit off and then relieve pressure in existing syringe by depressing both buttons until flow stops.

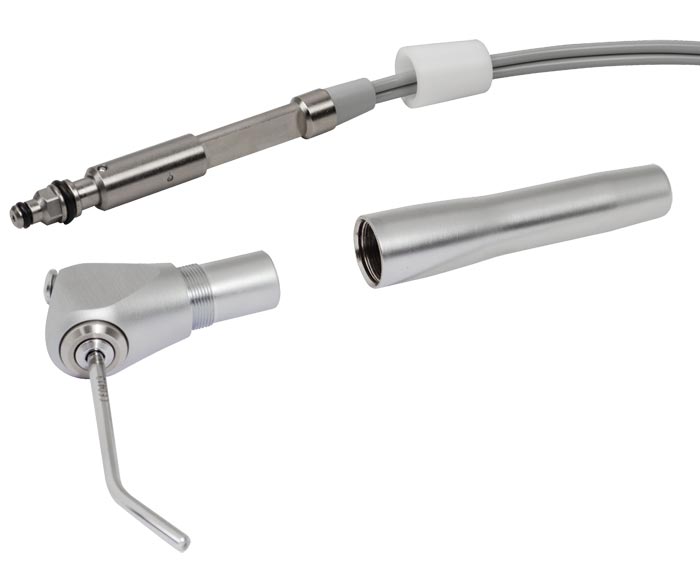

2. Disconnect existing syringe by unscrewing handle and cutting the tubing directly below the syringe head. Take care to note which tubing is for water and which is for air.
3. Insert tubing through handle and slip sleeve clamps over each line (approximately 3/8” from the end).
4. Slip tubing over barbs and lock tubing by sliding sleeve clamps over tubing portion on the barb with a pliers or sleeve tool.
5. Turn delivery unit on and test for leaks and proper function.

Repair Parts:
Repair kit (#01-42)
Button (#01-54)
Button spring (#01-54-S)
