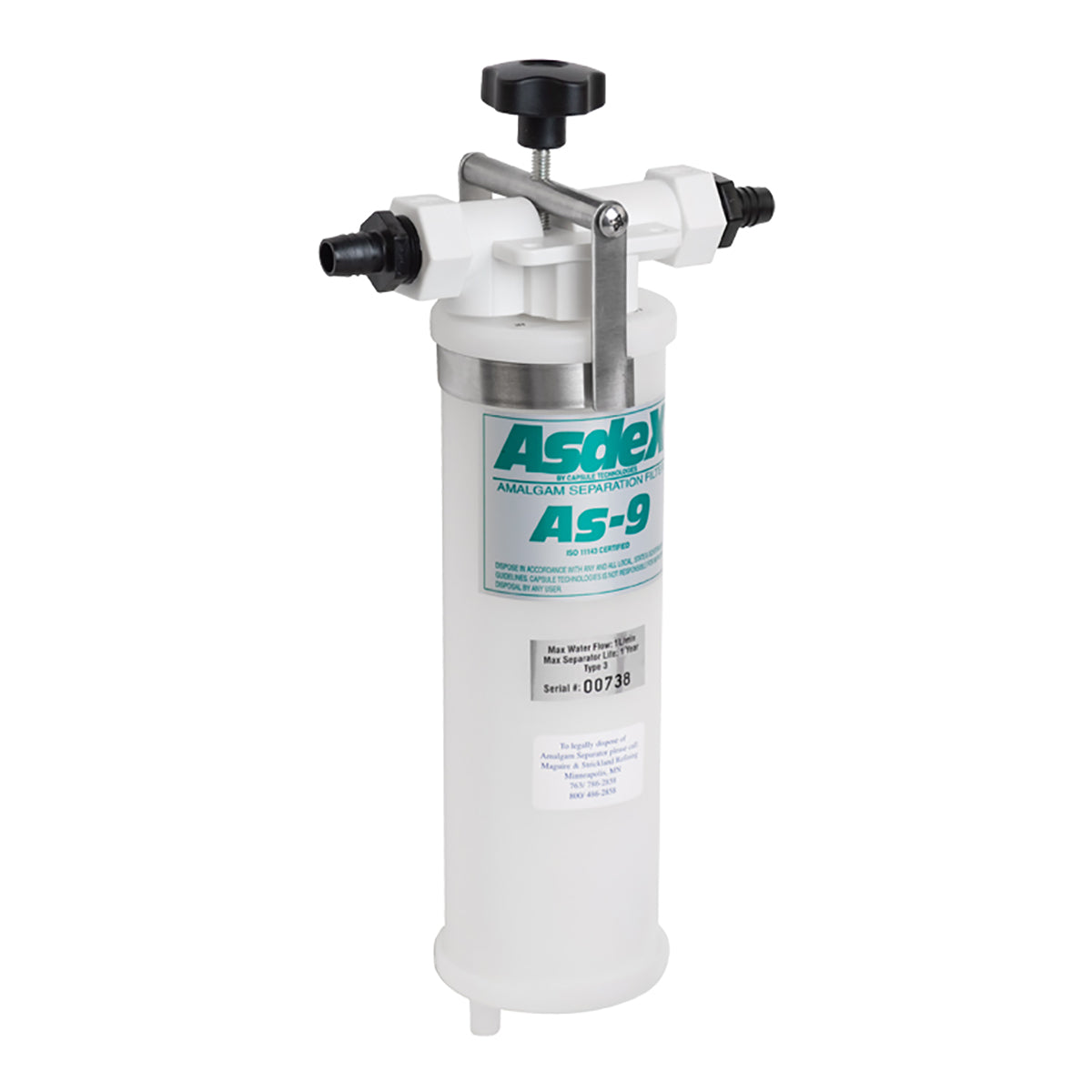

Asdex AS-9 Amalgam Separation System

The AS-9 amalgam separation system by Asdex is for a single operatory.

Product Details:

• Use with a wet or dry vacuum system.

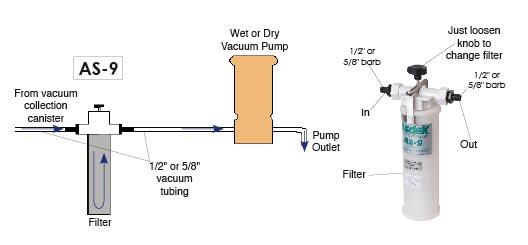

• Install system inline on the central vacuum line.
• Includes a mounting bracket.
• System is ISO 11143 certified at 99%.
• Filter changes out in seconds; just loosen knob and pull off filter.
• Recycling locations and instructions included.
• Two year warranty.

11" System:

• Overall Dimensions: 11-1/2" H X 3" D
• Filter lasts 6 months based on a single dentist at full time use (Filter #AL-11)

23" System:

• Overall dimensions: 23" H X 4" D
• Filter lasts 9 months based on 4 operatories at full time use (Filter #AL-14)

Installation Instructions (PDF)
