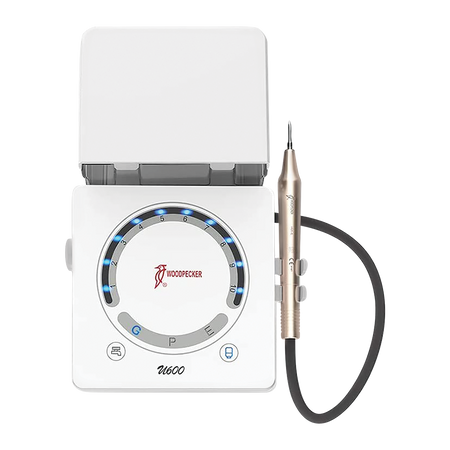

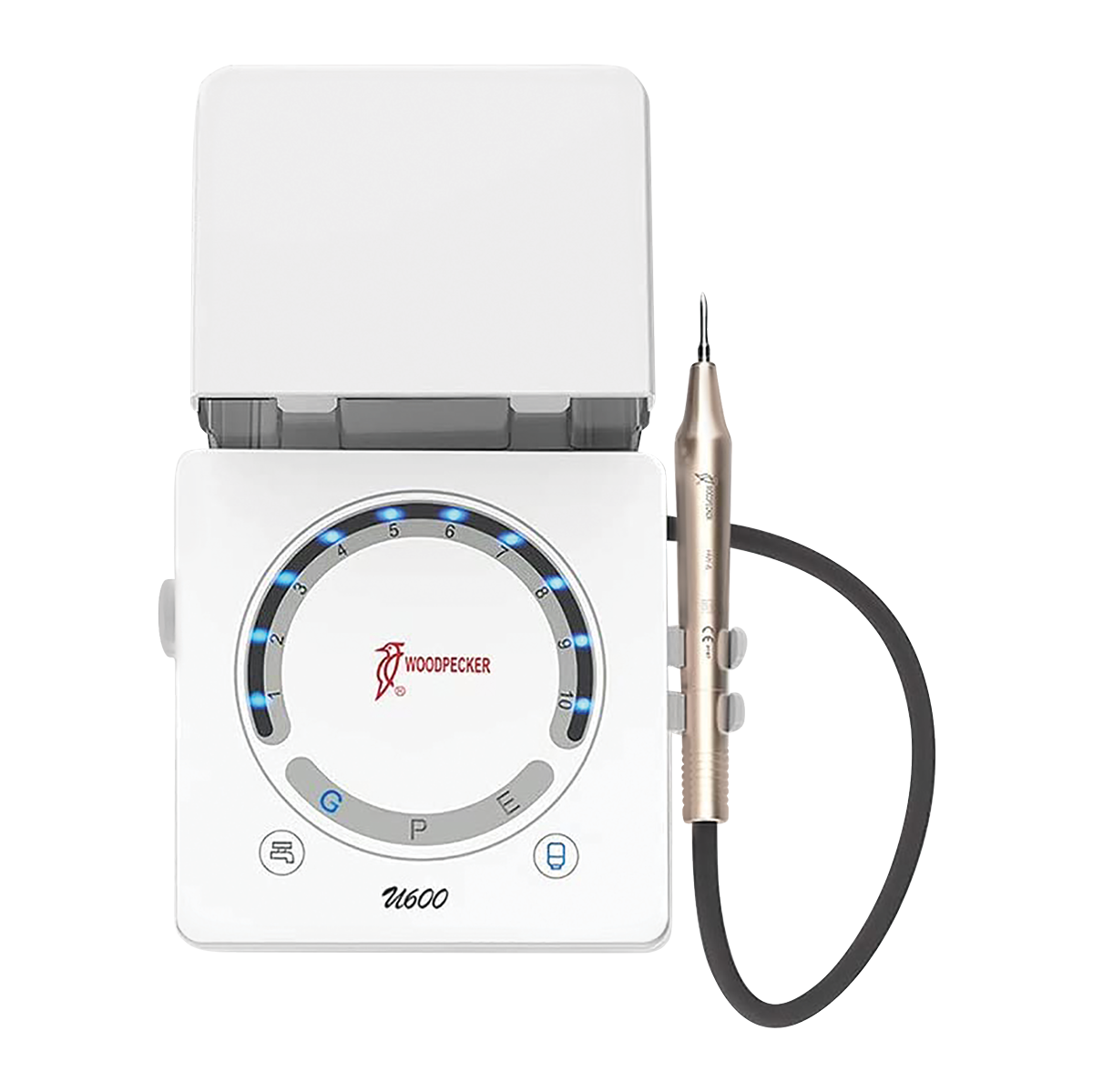

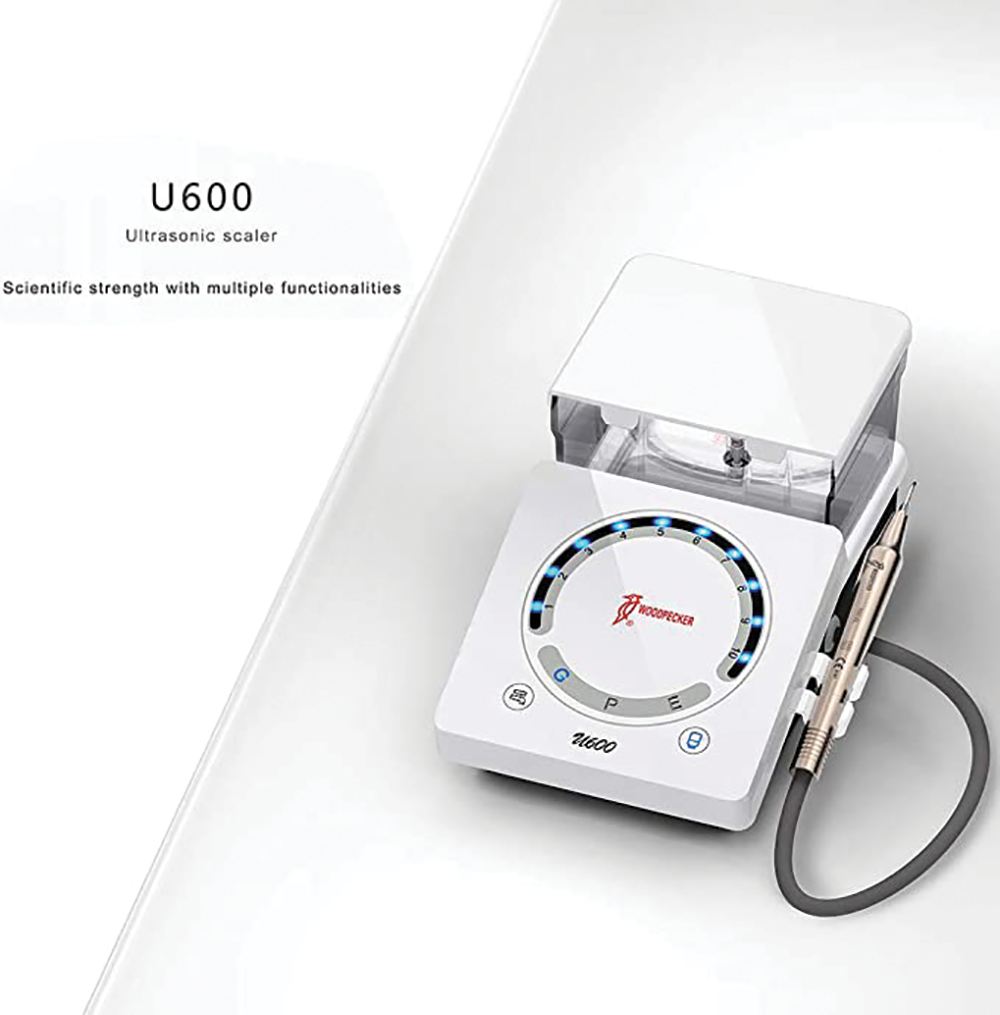

Woodpecker U600 LED Piezo Ultrasonic Scaler

Woodpecker U600 LED piezo ultrasonic scaler integrates ultrasonic scaling, perio, endo, and auto-water supply functions all into one unit.

Product Features:

• LED handpiece illuminates the point of contact for optimum visualization. Handpiece remains lit for 10 seconds after foot pedal releases.

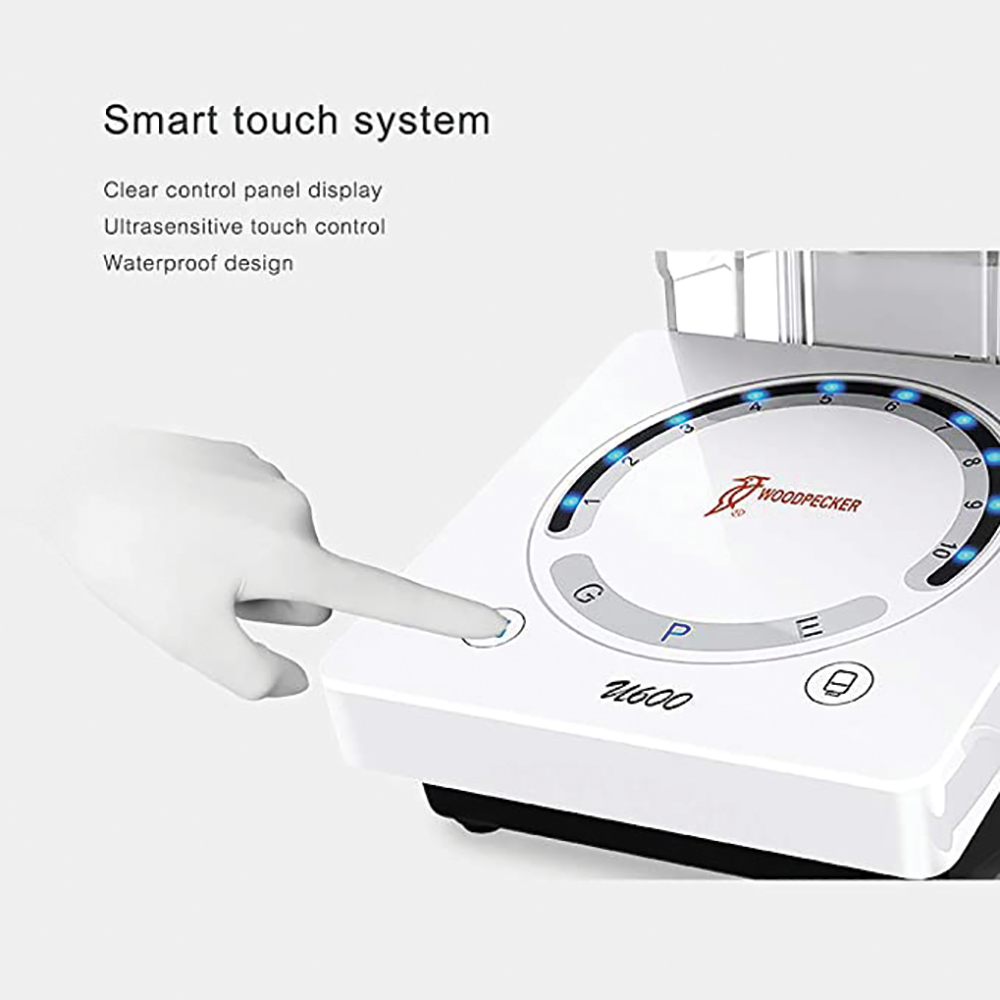

• Its smart touch system has a clear control panel display that is waterproof.
• Accurate automatic output power to the scaler tip, depending on different tooth surfaces.

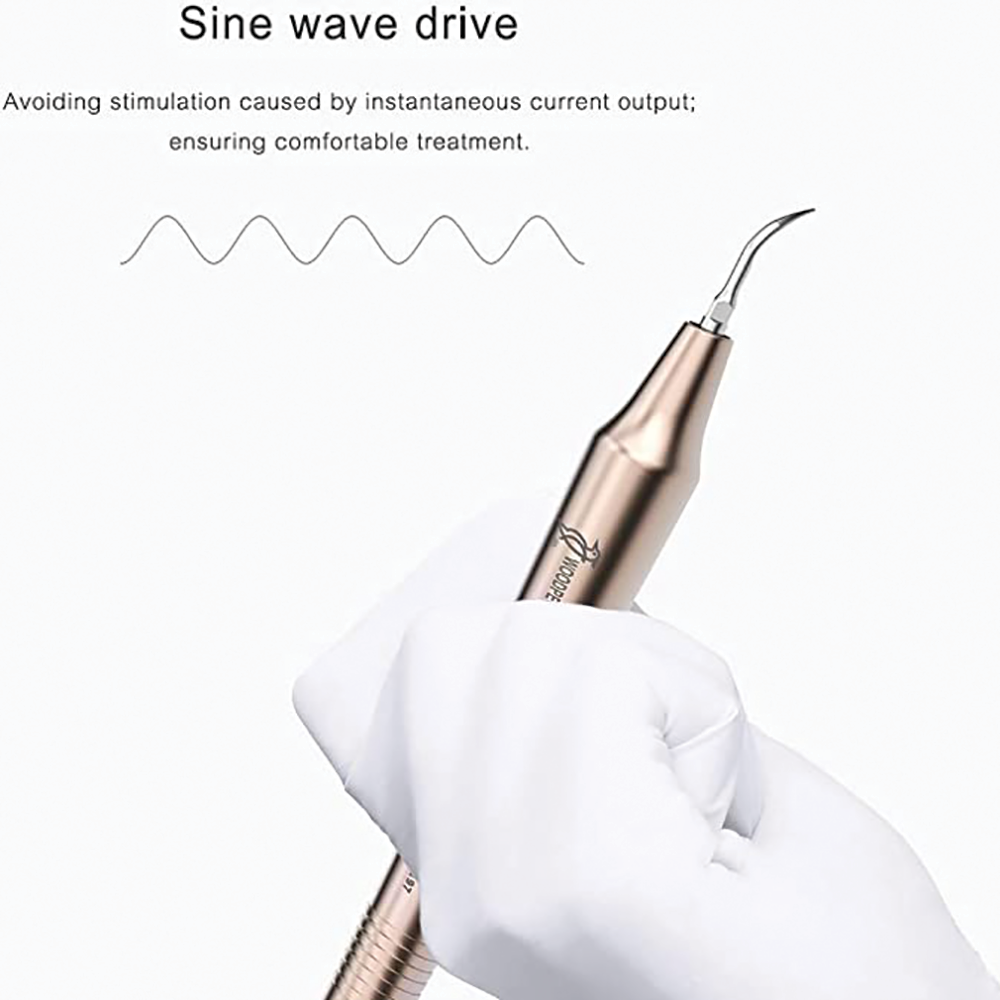

• Uses sine-wave technology for increased patient comort by decreasing the stimulation generated by the scaler tip's instantaneous current output.

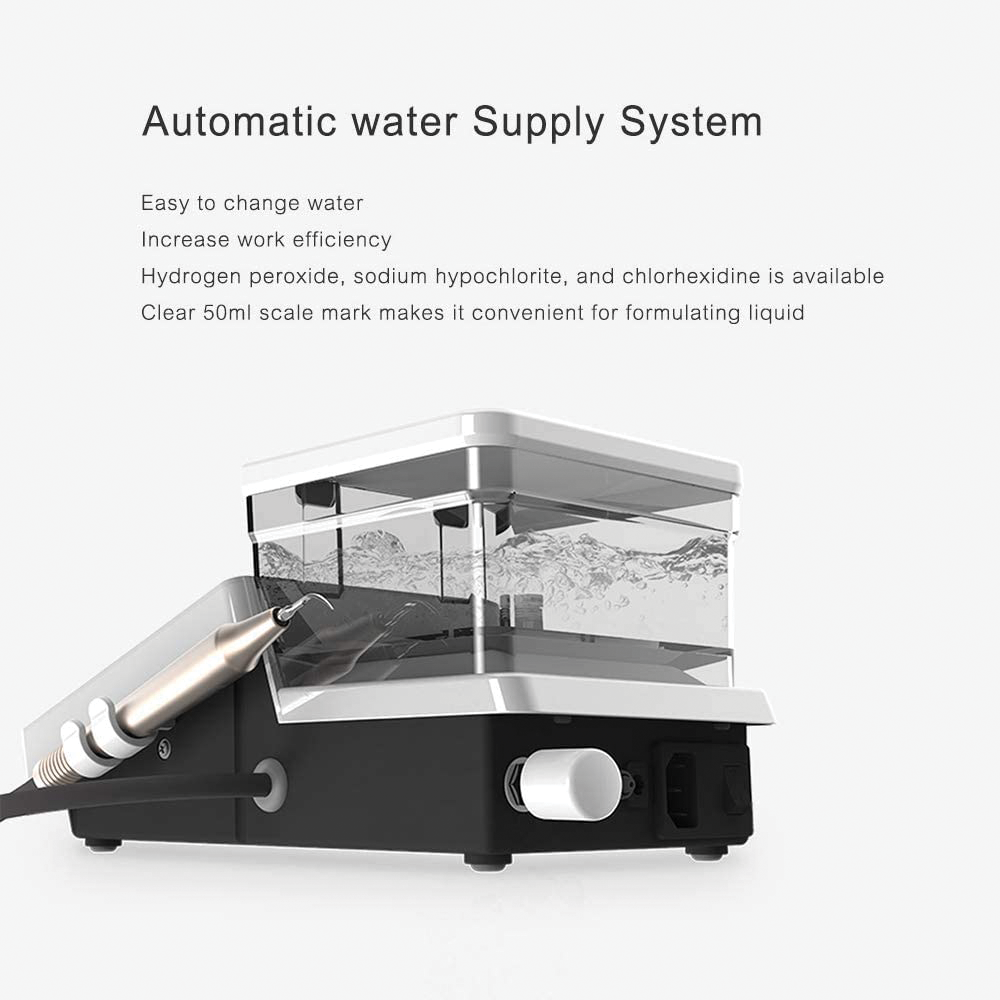

• Automatic water supply system using its 50 mL reservoir tank.
• Hydrogen peroxide, sodium hypochlorite, and chlorhexidine compatible.
• Includes: 5 EMS scaling tips, 2 endo tips, foot control, and reservoir tank.
• One year warranty.

Product Specifications:

• Main unit input: 120V
• Outpust vibrations excursion: ≤90μm
• Output tip vibration frequency: 28kHz±3kHz
• Output power: 3W to 20W
• Water pressure: 0.01MPa to 0.5MPa

Service Manual of Woodpecker U600 Scaler (PDF)

NOTE: For non LED option, see #60-039.

Choosing equipment products often comes down to which ones cause the fewest disruptions. Woodpecker built the Woodpecker U600 LED Piezo Ultrasonic Scaler with that bar in mind. Within the piezo scaler category, this product competes on specifications and exact-fit reliability rather than price alone.
