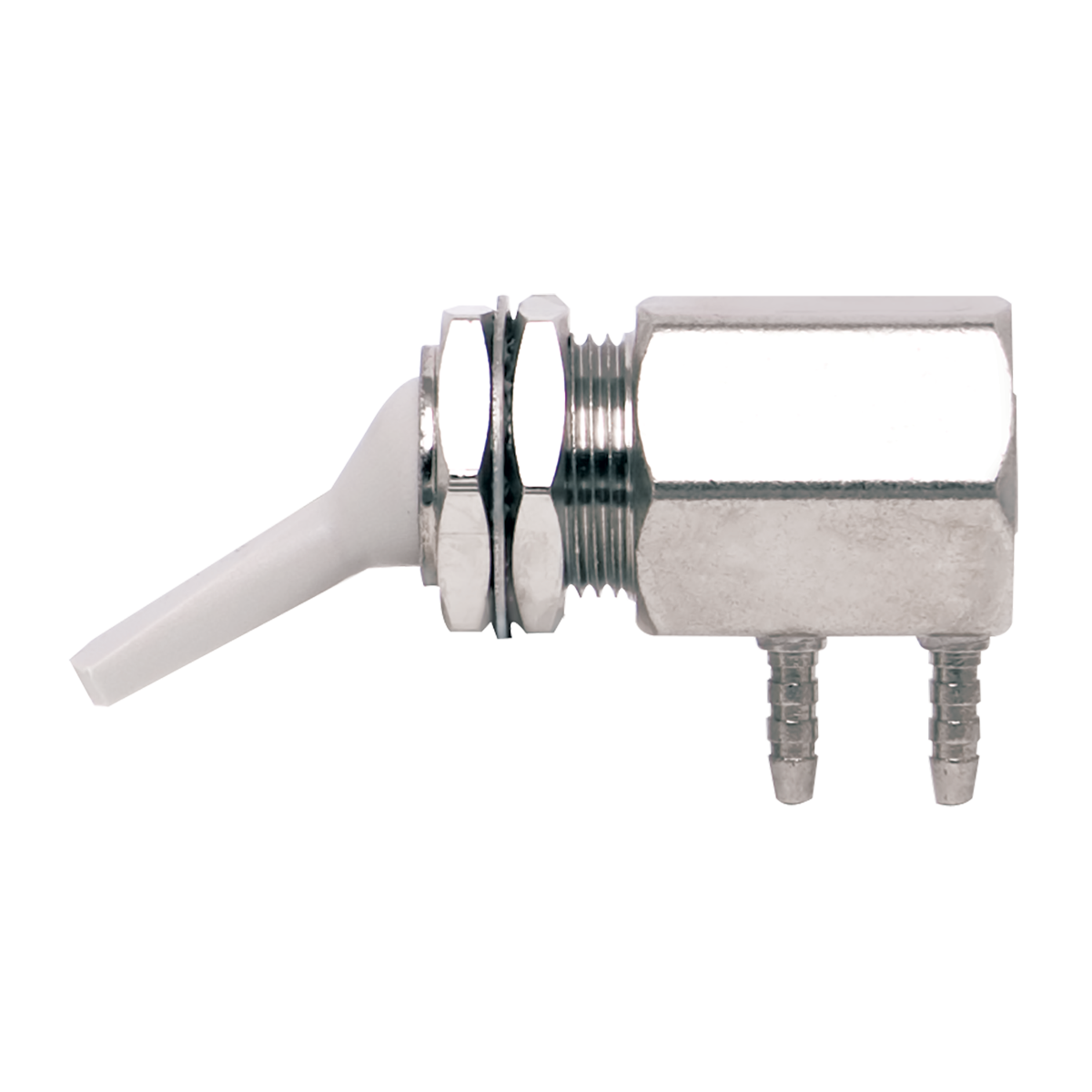

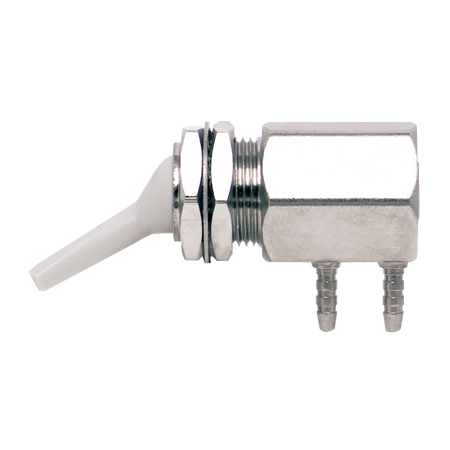

On/Off Relieving Toggle (A-dec Style)

Brand:

American Dental Accessories

SKU#:

05-16
Price
Regular price $26.95
Quantity

A-dec style on/off relieving toggle releases air when in the off position (makes a hissing sound).

Product Details:

  • For use with air to activate master on/off activation, water on/off activation, and arm locks on A-dec® units.
  • Only for use with 1/8" tubing.
  • Tubing clamps and gaskets included.

Installation Instructions (PDF):

  1. Shut off your delivery unit by depressing the buttons on the air/water syringe.
  2. Cut the tubing as close to the old toggle with a wire cutter and remove the toggle. Make sure to note which tubing connects to the inlet and outlet.
  3. Install the appropriate sized barbs with washers and tighten securely with a 1/4" open ended wrench.
  4. Apply liquid soap to the tubing or dip the ends in hot water. Slip the sleeve clamps over the tubing (approximately 3/8" from the end), which ensures the interior bevel of the sleeve clamp faces the barb.
  5. Slip tubing over barbs and lock tubing by using a pliers or sleeve tool to slide the sleeve clamps over tubing and barb.
  6. Mount to the delivery unit using provided nut.
  7. Finally, turn the unit on in order to test for leaks and proper function.

A-dec style on/off relieving toggle releases air when in the off position (makes a hissing sound).

Product Details:

  • For use with air to activate master on/off activation, water on/off activation, and arm locks on A-dec® units.
  • Only for use with 1/8" tubing.
  • Tubing clamps and gaskets included.

Installation Instructions (PDF):

  1. Shut off your delivery unit by depressing the buttons on the air/water syringe.
  2. Cut the tubing as close to the old toggle with a wire cutter and remove the toggle. Make sure to note which tubing connects to the inlet and outlet.
  3. Install the appropriate sized barbs with washers and tighten securely with a 1/4" open ended wrench.
  4. Apply liquid soap to the tubing or dip the ends in hot water. Slip the sleeve clamps over the tubing (approximately 3/8" from the end), which ensures the interior bevel of the sleeve clamp faces the barb.
  5. Slip tubing over barbs and lock tubing by using a pliers or sleeve tool to slide the sleeve clamps over tubing and barb.
  6. Mount to the delivery unit using provided nut.
  7. Finally, turn the unit on in order to test for leaks and proper function.
