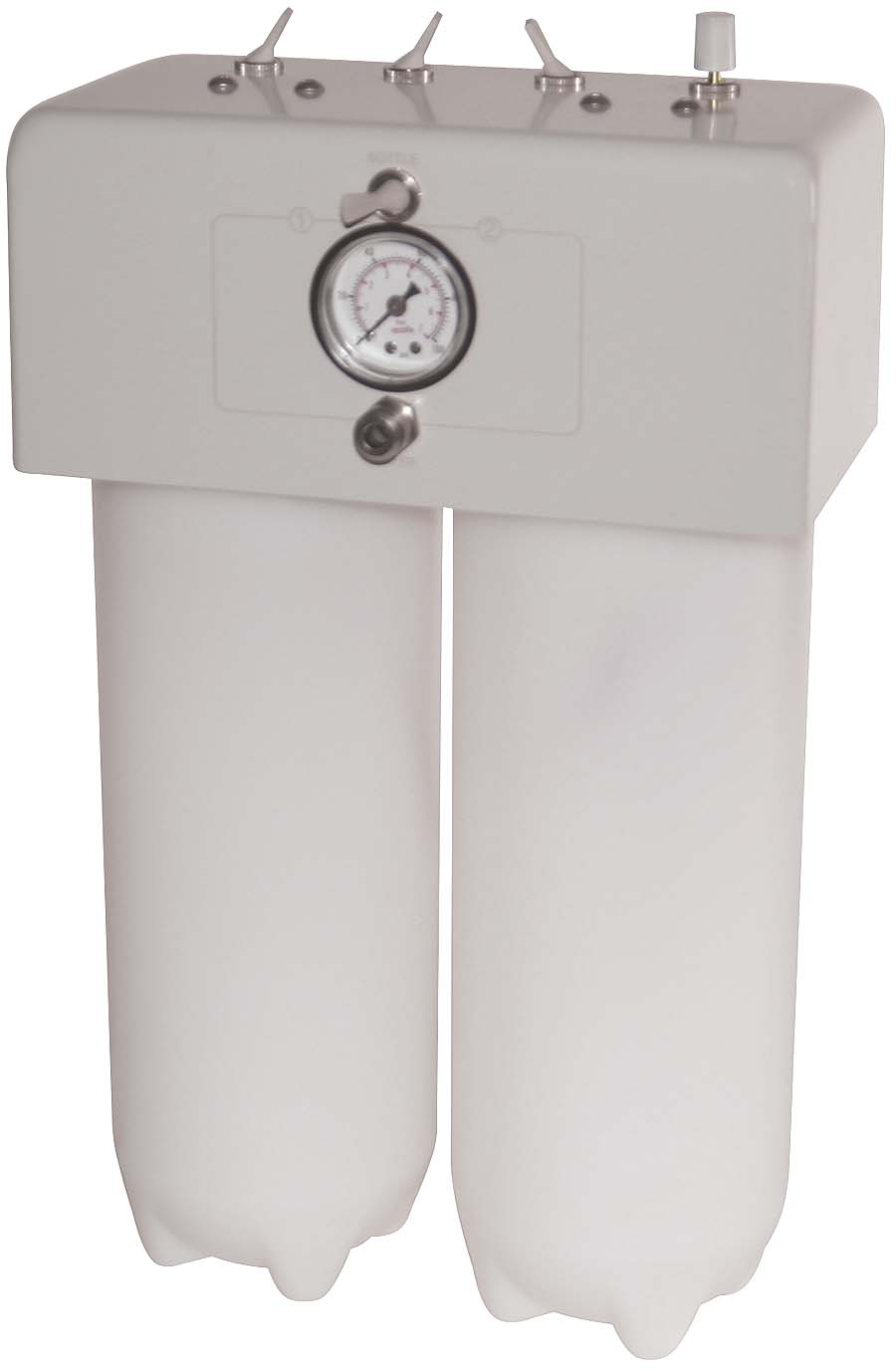

Deluxe Dual Bottle Clean Water System (Public Water)
Couldn't load pickup availability
Deluxe dual bottle clean water system attaches to your delivery units for use with air/water syringes, handpieces, scalers, and other equipment. Includes toggle to select from bottled water or public water.
System Includes:
- Air pressure gauge
- (2) 1.5-liter bottles
- Air purge
- All necessary tubing and connectors to install the unit, plus a 1/4" female quick disconnect to attach a scaler, or other attachment.
- Does NOT include a 2" diameter pole mounting bracket.
Unit Dimensions (not including bottles): 4" H X 9" W X 5" D (add approximately 13" to height for bottles).
Installation Instructions (PDF):
- Turn off master air and water valves.
- Using the three-port barb tee (#14-61), splice the yellow tubing into the master valve air line.
- Detach the main water line from the delivery unit and attach the solid blue tubing to the open fitting.
- Then detach the main water line from your unit to the junction box and attach clear blue tubing.
- Fill the water bottle, but leave a 2" space for air.
- Lastly test your water system for proper installation and function.
NOTE: If you need the Deluxe Dual Bottle Clean Water System for bottled water, see #49-32.
Deluxe dual bottle clean water system attaches to your delivery units for use with air/water syringes, handpieces, scalers, and other equipment. Includes toggle to select from bottled water or public water.
System Includes:
- Air pressure gauge
- (2) 1.5-liter bottles
- Air purge
- All necessary tubing and connectors to install the unit, plus a 1/4" female quick disconnect to attach a scaler, or other attachment.
- Does NOT include a 2" diameter pole mounting bracket.
Unit Dimensions (not including bottles): 4" H X 9" W X 5" D (add approximately 13" to height for bottles).
Installation Instructions (PDF):
- Turn off master air and water valves.
- Using the three-port barb tee (#14-61), splice the yellow tubing into the master valve air line.
- Detach the main water line from the delivery unit and attach the solid blue tubing to the open fitting.
- Then detach the main water line from your unit to the junction box and attach clear blue tubing.
- Fill the water bottle, but leave a 2" space for air.
- Lastly test your water system for proper installation and function.
NOTE: If you need the Deluxe Dual Bottle Clean Water System for bottled water, see #49-32.
