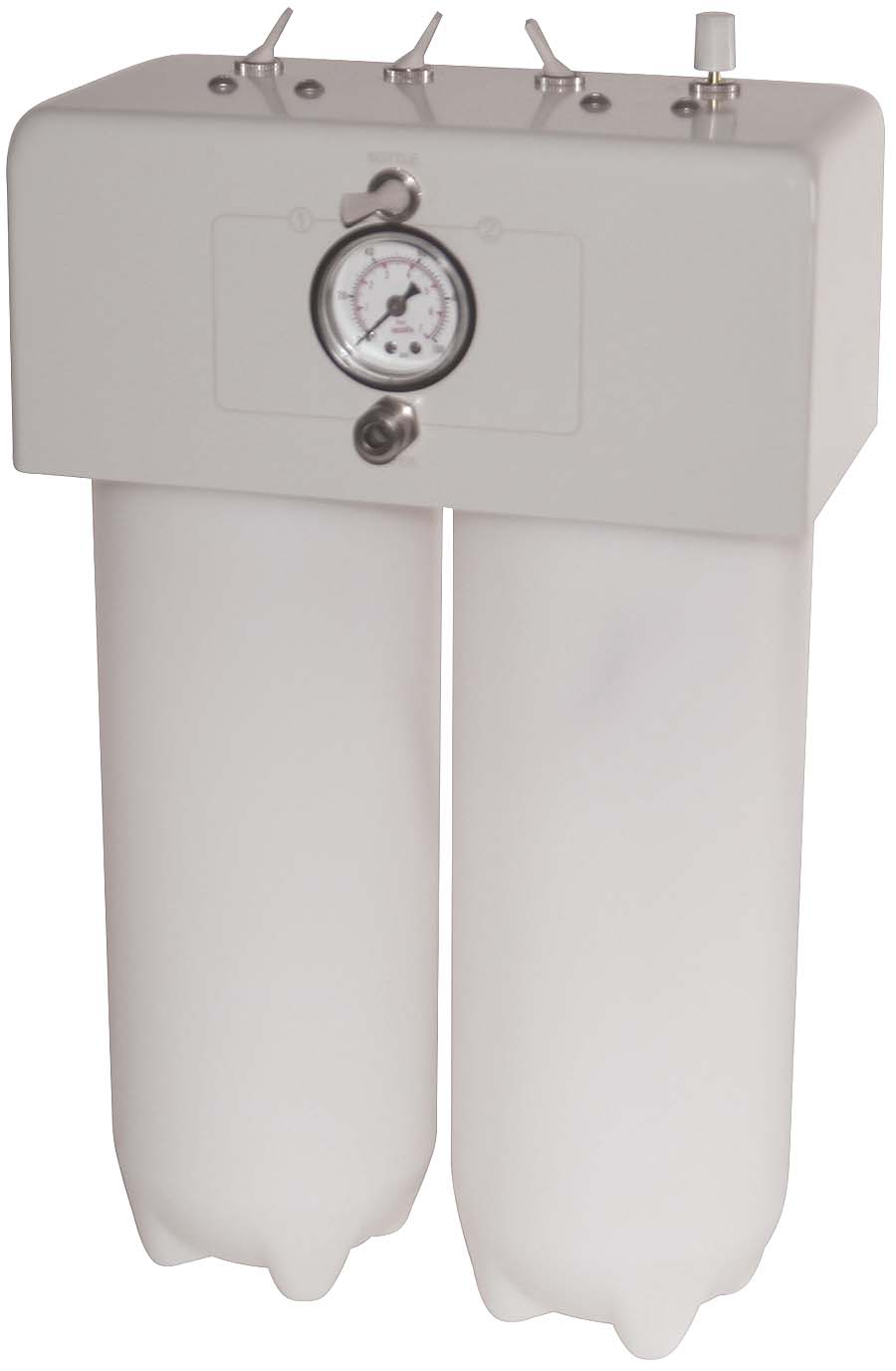

Deluxe Dual Bottle Clean Water System (Bottled Water)

Deluxe dual clean water bottle system attaches to a delivery system for use with air/water syringes, handpieces, scalers, and other equipment. System uses only the bottled water.

Product Details:

• Includes: air pressure gauge, (2) 1.5-liter bottles (#49-13), air purge, and all necessary tubing and connectors to install the unit. Also includes a 1/4" female quick disconnect to attach a scaler or other attachment.
• Unit dimensions (not including bottles): 4" H X 9" W X 5" D (add approximately 13" to height for bottles)
• A 2" diameter pole mounting bracket not included.

Installation Instructions (PDF):

1. Turn off your mater air and water valves.
2. Using the three-port barb tee (#14-61), splice the red tubing into the master valve air line.
3. Then detach the main water line from your unit and attach the blue tubing to the open fitting.
4. Next, detatch the main water line from the unit to your junction box and plug.
5. Fill the water bottle, but leave a 2" space for air.
6. Lastly, test your clean water system for proper installation and function.

NOTE: For a deluxe clean water system for public water instead of bottled water, see #49-33.
