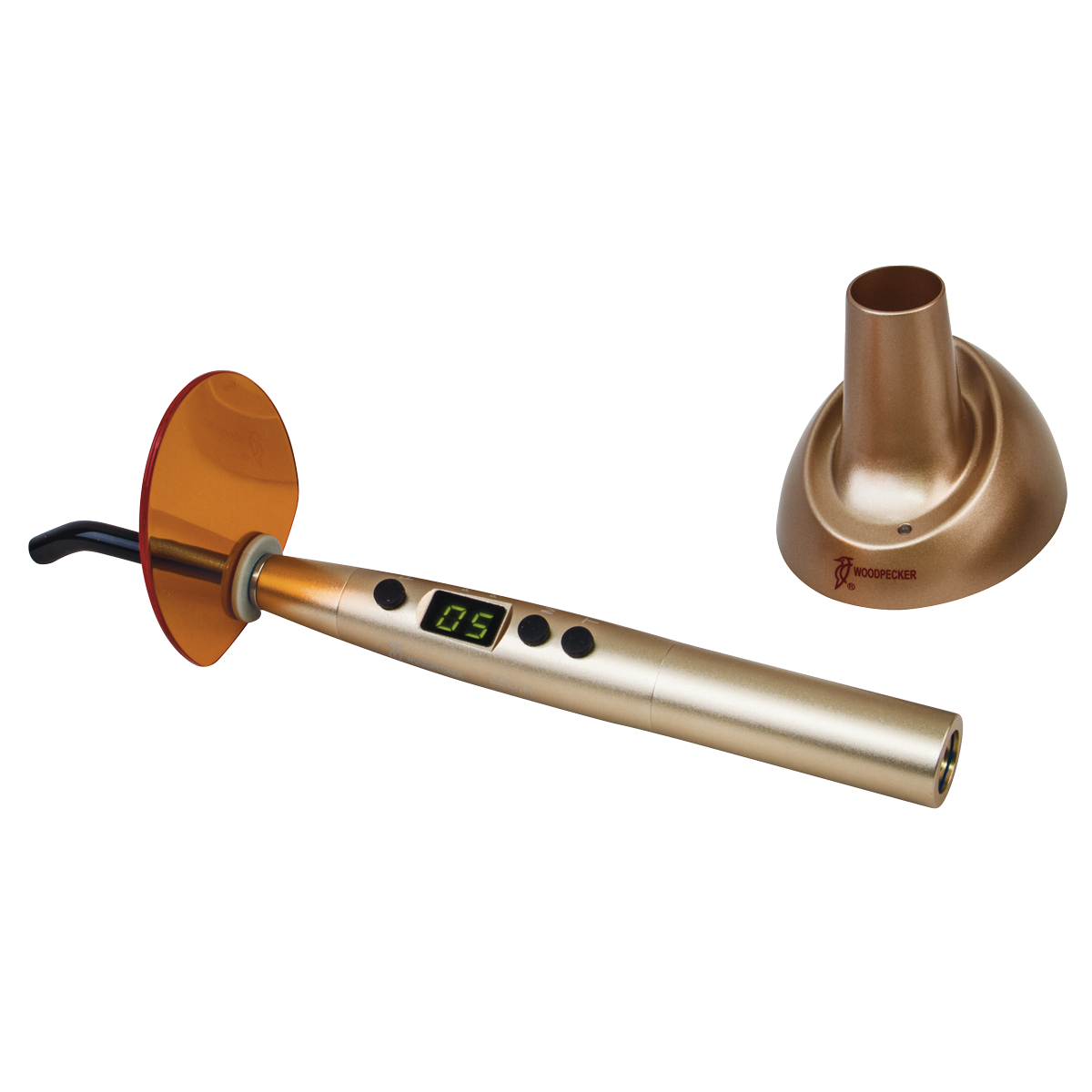

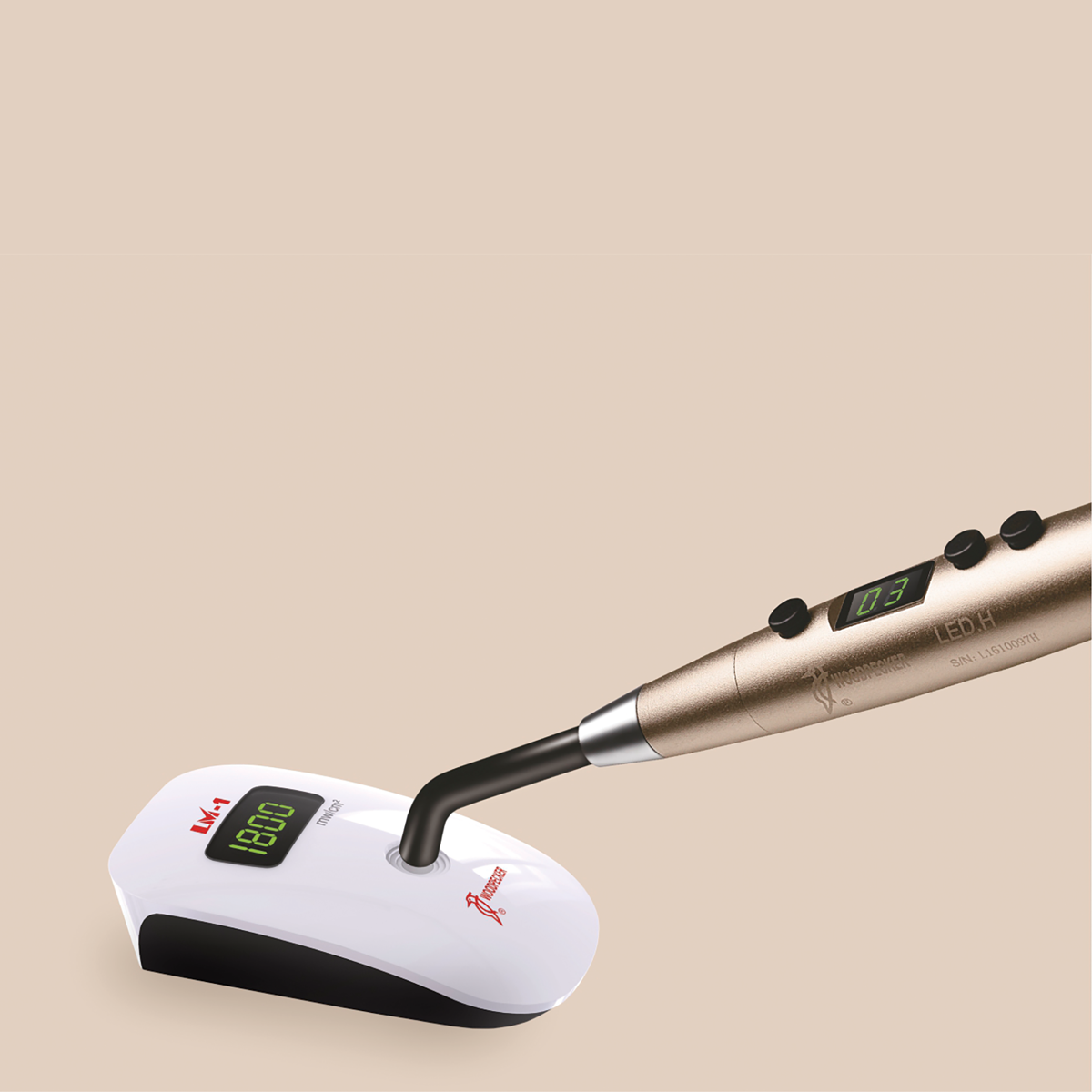

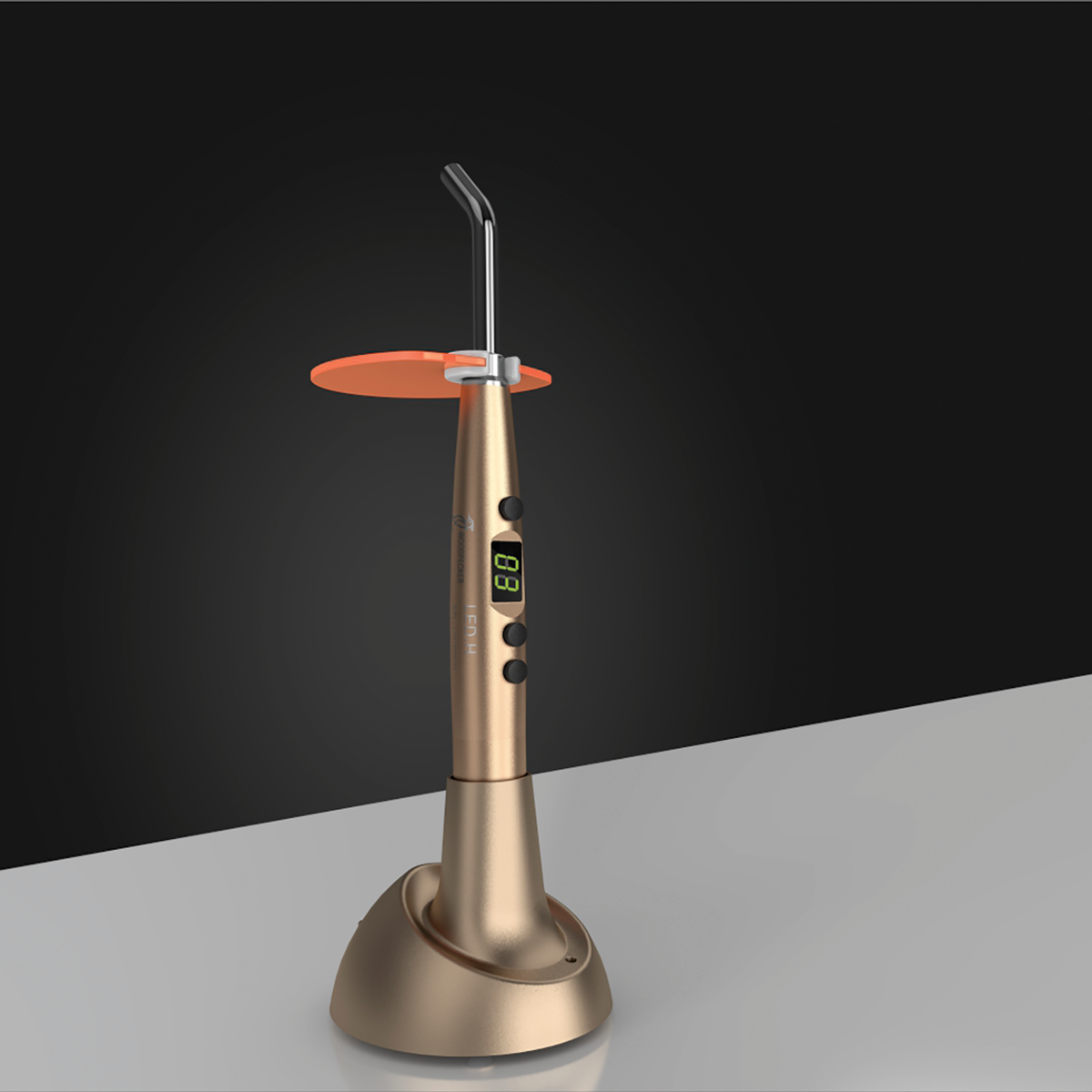

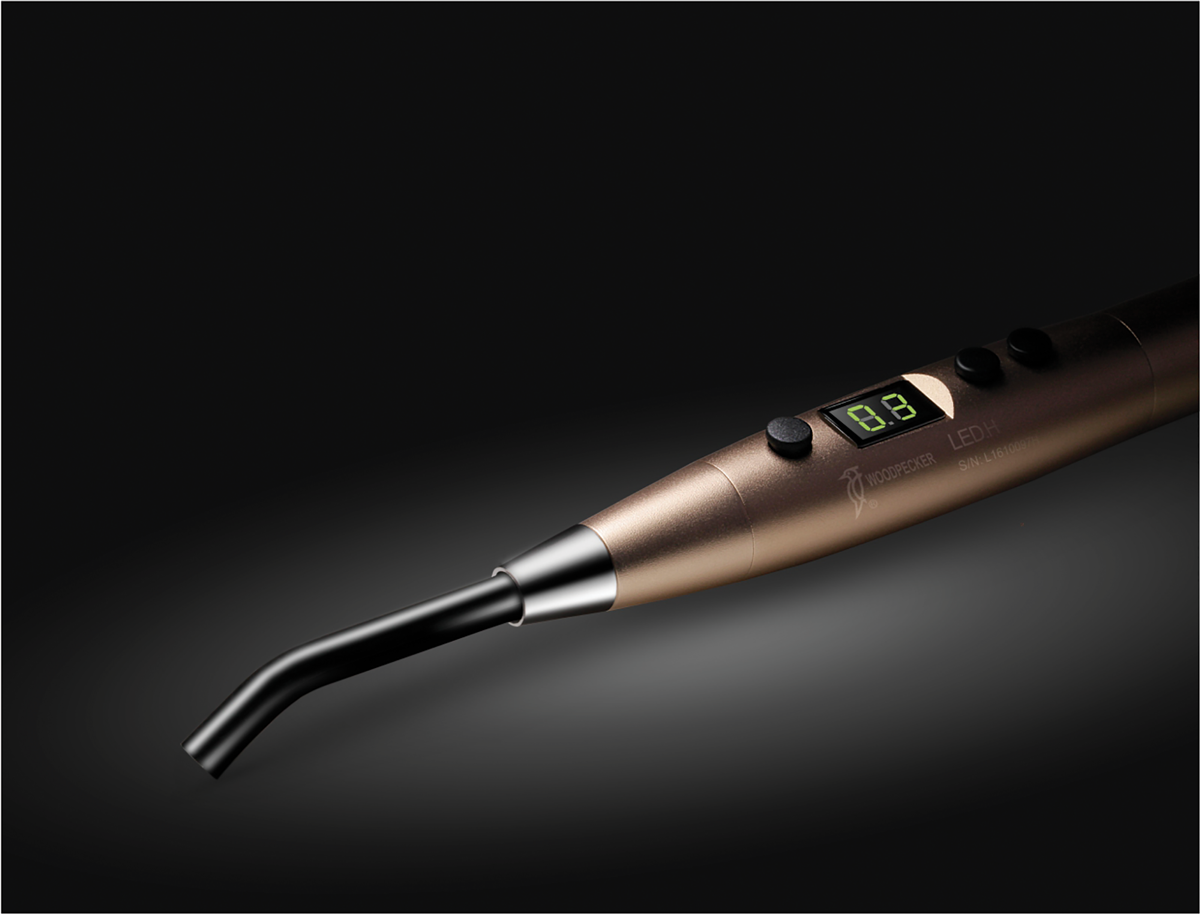

Woodpecker LED.H Ortho Curing Light

The Woodpecker LED.H Ortho Curing Light is a cordless device designed for efficient orthodontic procedures. It delivers powerful LED light that cures dental materials in just three seconds, significantly reducing treatment time. Its ergonomic design ensures ease of use and precision during application. This curing light offers consistent performance and reliable results, making it an essential tool for dental professionals seeking to enhance workflow and patient comfort.

Product Features:

• Has two settings for all of your dental procedures — orthodontic (P1) or standard (P2).
• Full metal body for intelligent cooling system to prevent overheating.
• Beveled optical fiber probe has a vertical rotation of 360°.
• Light will turn off automatically after two minutes of non-use.
• Two year warranty on the device and one year warranty on the battery.
• Includes: 2 autoclavable probes (1 has an inclined plane), light shield, adaptor, and rechargeable Lithium battery. Does NOT include a light meter.

Technical Information:

• Light source: 5W Blue LED
• Wavelength: 385nm - 515nm
• Weighs: 6.3 oz

Specifications for Othodontic Mode (P1):

• Timer Settings: 3, 5, & 10 seconds
• Light Intensity:1600-1800 mW/cm²

Specifications for Standard Mode (P2):

• Timer Settings: 5, 10, 15, & 20 seconds
• Light Intensity:1000-1200 mW/cm²

Instruction Manual

Replacement Parts:

• Beveled probe (#59-754)
• Regular probe (#59-755)
