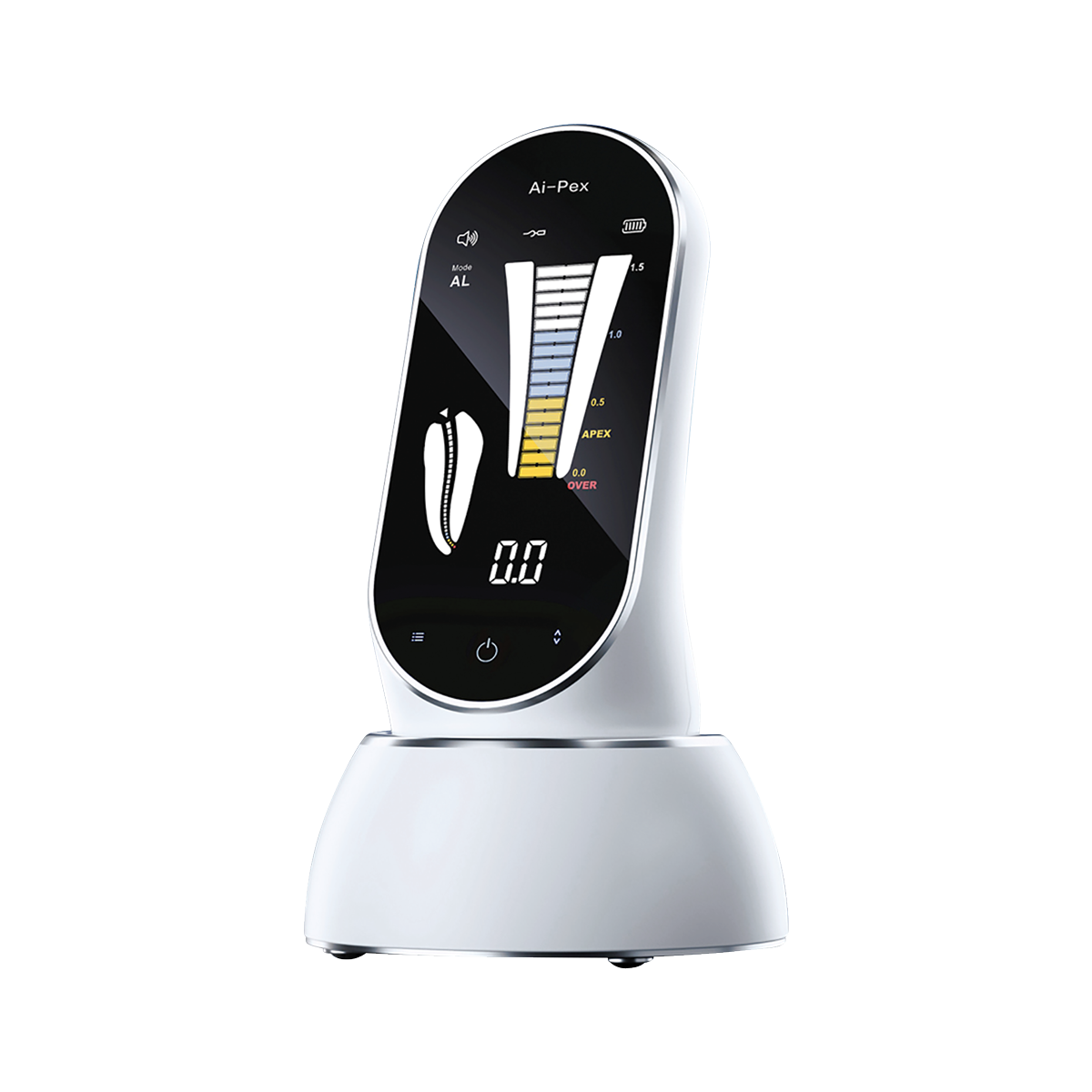

Woodpecker Ai-Pex Apex Locator With Pulp Tester

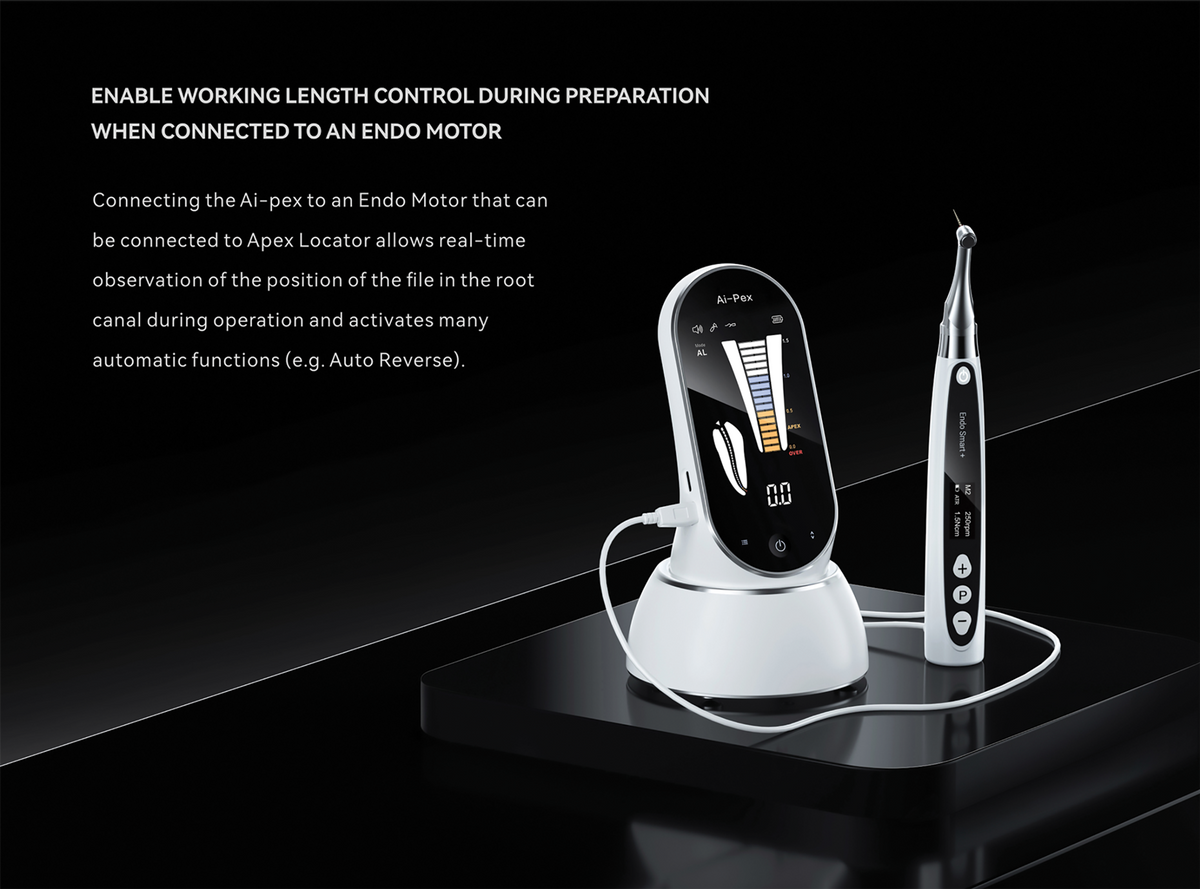

The Woodpecker Ai-Pex apex locator with a pulp tester for easier endodontic treatment. Locator connects to an endo motor handpiece for real-time observation of the position of the file in the root canal during operation and activates many automatic functions.

Use for various complex root canals and unaffected by blood and residual pulp, whether the root can is dry or wet. It automatically and precisely determines the position of apical foramen.

Product Features:

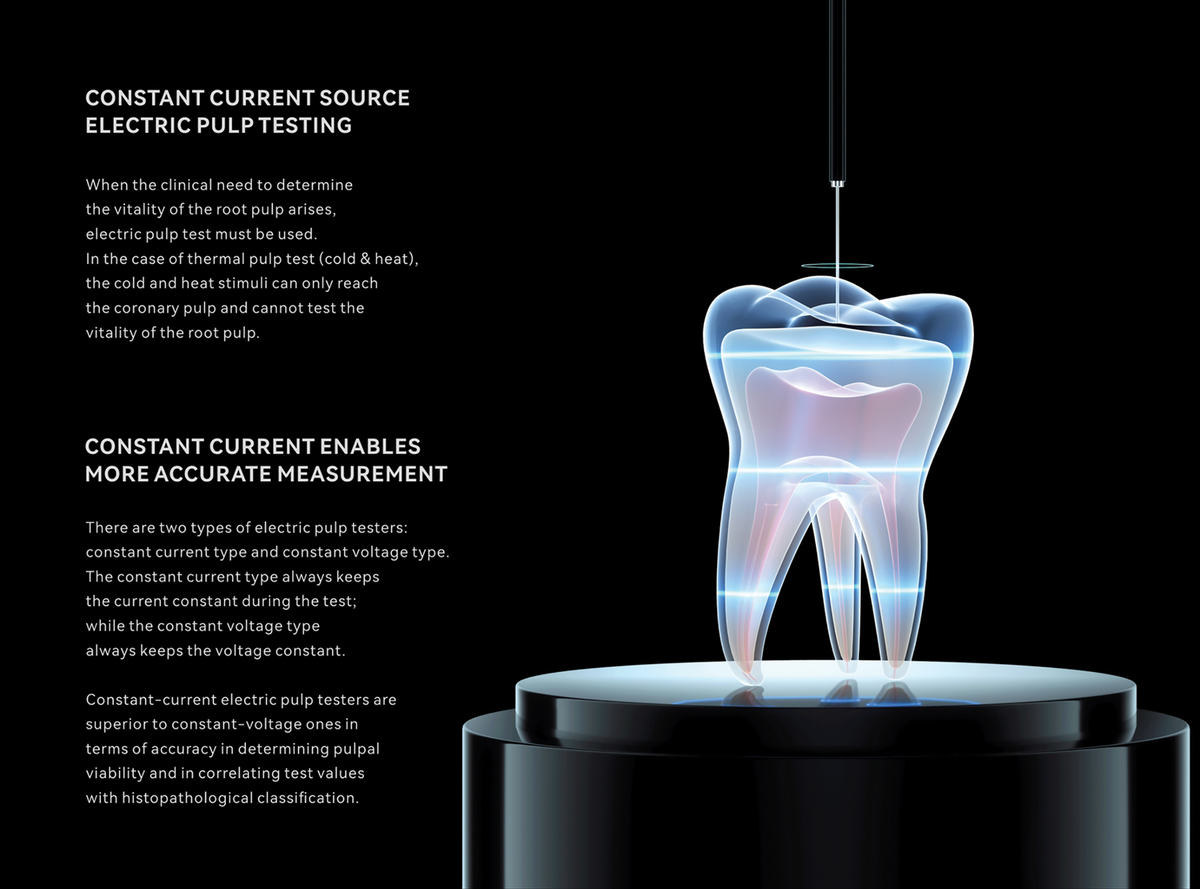

• Provides constant current sources using electrical pulp testing for more accurate measurements.

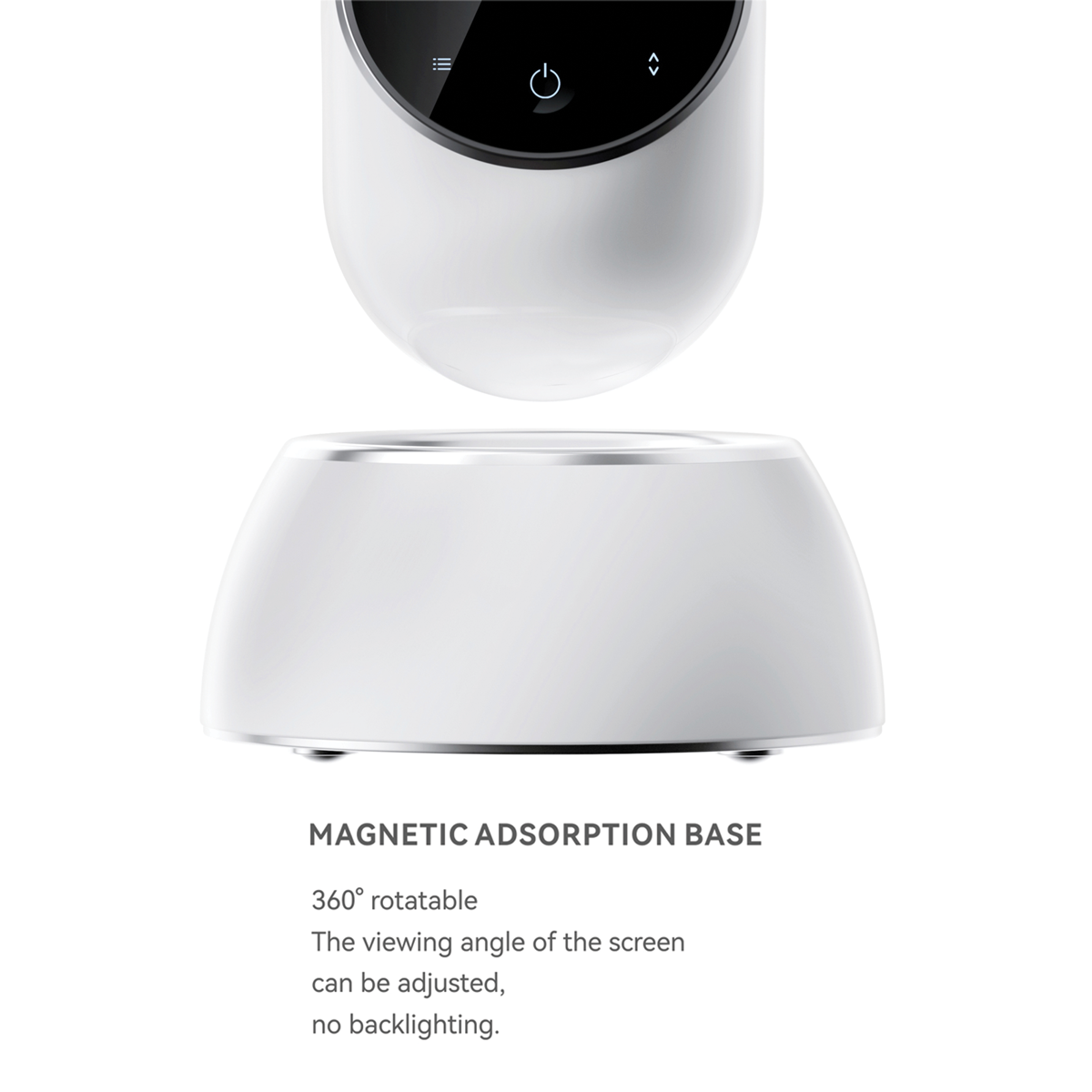

• Magnetic adsorption with a unique base design allowing it to rotate 360°. The viewing angle of the screen adjusts with no backlighting.
• Anti-interference with multi-frequency DSP technology.

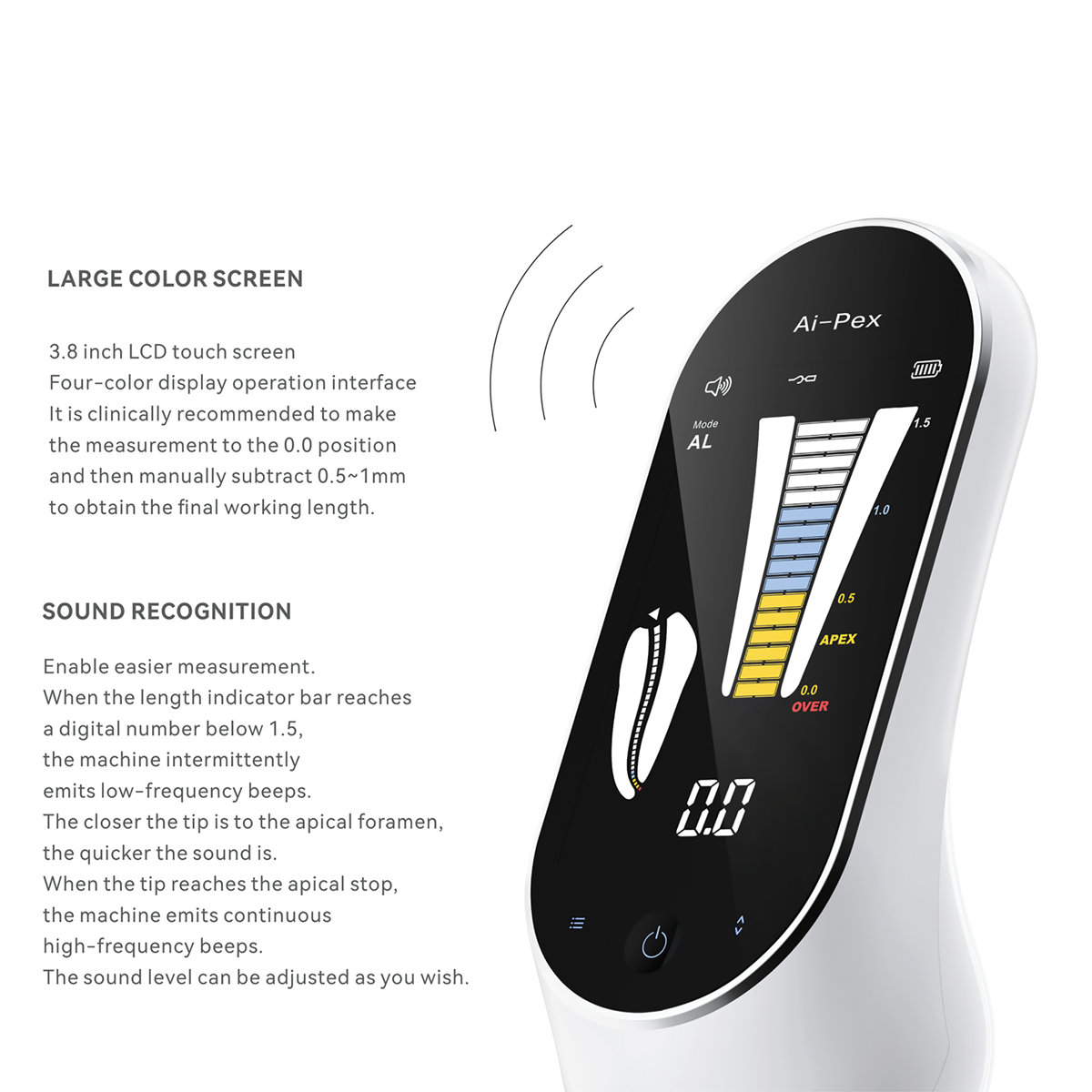

• Large (3.8 inch) LCD touch screen with four-color display operation interface.
• Sound recognition enables easier endodontic measurement. When the length indicator bar reaches a digital number below 1.5, the machine intermittently emits low frequency beeps. The closer the tip is to apical foramen, the quicker the sound gets. When the tip reaches the apical stop, Ai-Pex emits continuous high frequency beeps. Has adjustable sound levels.
• Auto calibration after start-up.
• U.S. central processing chip with DSP processing module.
• Information processing speed increases by 2.125 times.

How to Use the Woodpecker Ai-Pex Pulp Tester:

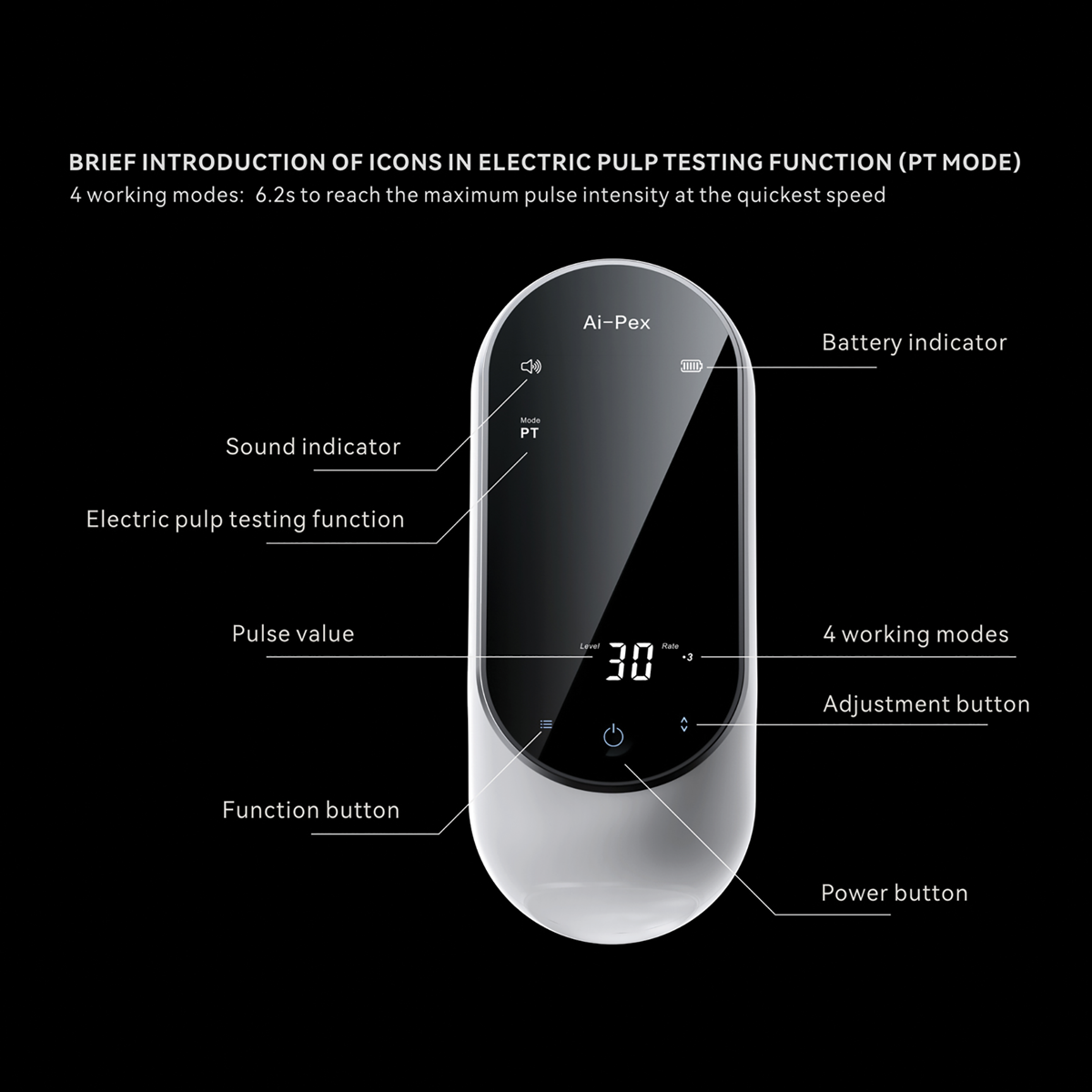

1. Long press the function button to switch to PT mode.
2. Press the speed button to adjust to the suitable working mode.

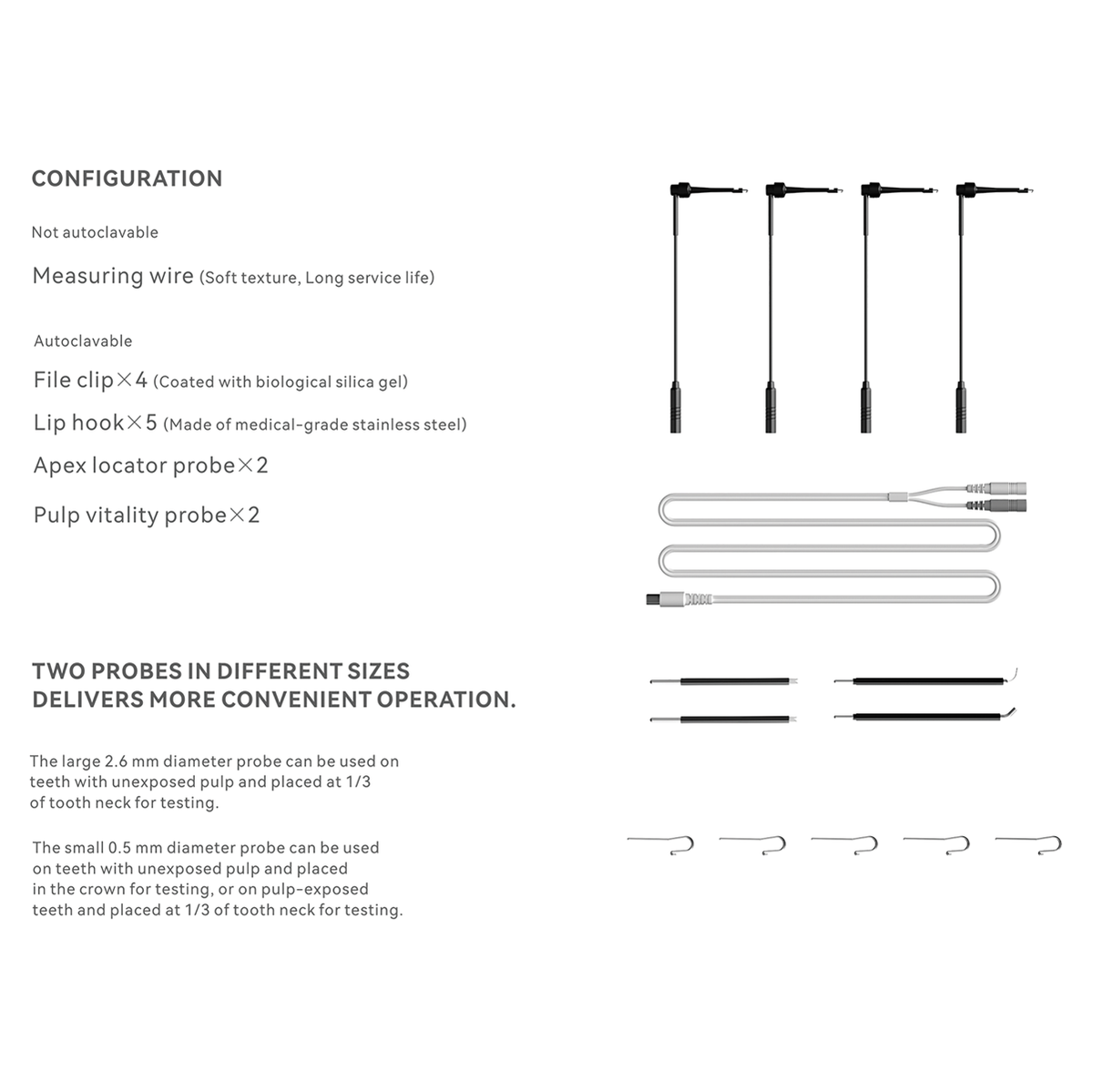

3. Connect the lip hook and probe.
4. Coat the head of the probe with a layer of conductive agent (toothpaste, etc.)
5. Place the probe at the 1/3 position of the tooth neck. Then test the tooth and its adjacent tooth separately and compare the values when the patient feels tingling.
6. Lastly determine the pulp vitality based on comparative numerical analysis.

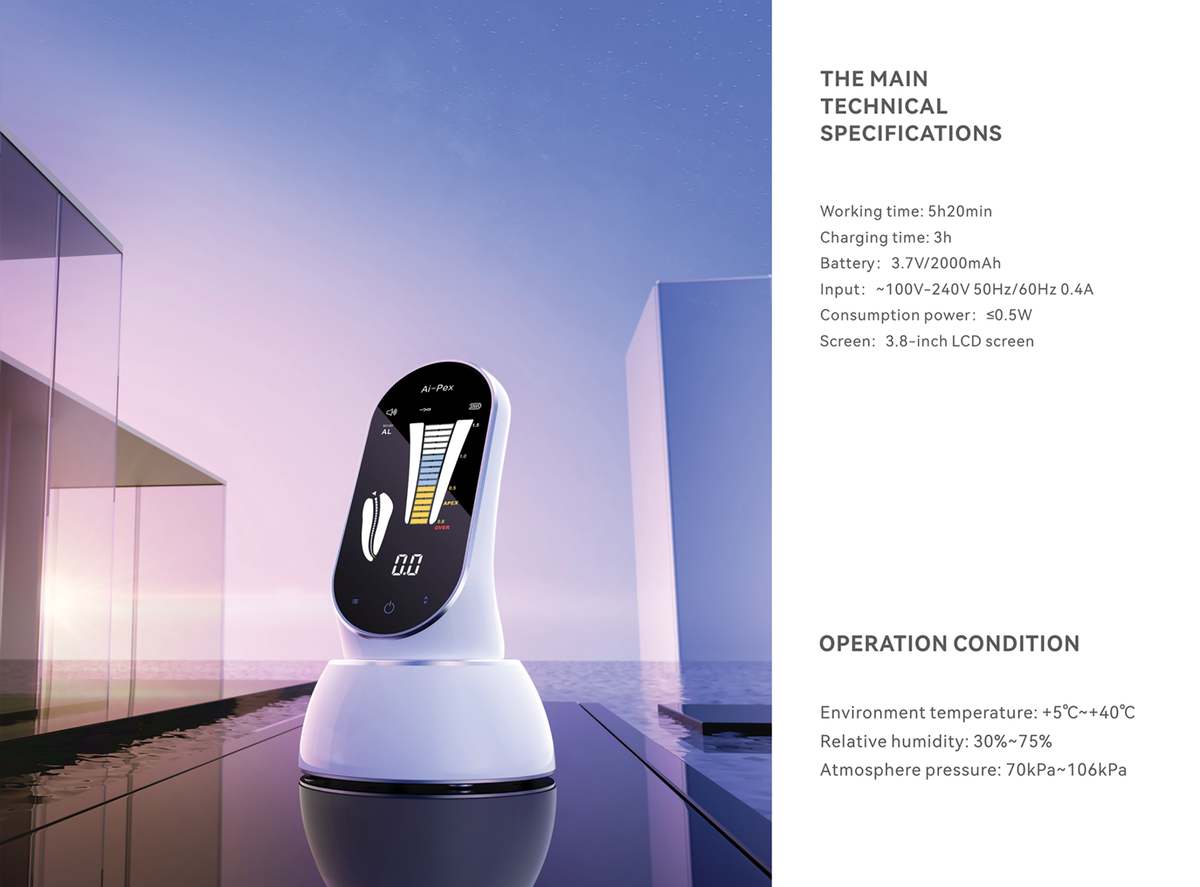

Technical Specifications:

• Dimensions: 3.98" (length) × 3.98" (width) × 6.91" (height)
• Weight: 1.51 lbs
• Battery: 3.7V/2000mAh (Model: 18500)
• Adapter (Model: DJ-0500100-A5/ADS-6AM-06N 05050):
• Input: ~100V-240V 50Hz/60Hz 0.4A MAX
• Output: DC5V/1A
• Consumption power: ≤0.5W
• Screen: 3.8’’ LCD
• Working Time: 5 hours, 20 minutes
• Charging Time: 3 hours
• Manufacturer Warranty: 1 year

Woodpecker Instruction Manual (link)

SHIPPING: Woodpecker Ai-Pex Apex Locator ships directly from the manufacturer. Please allow 7-10 business days for delivery. If returned, a 15% restocking fee will apply.
