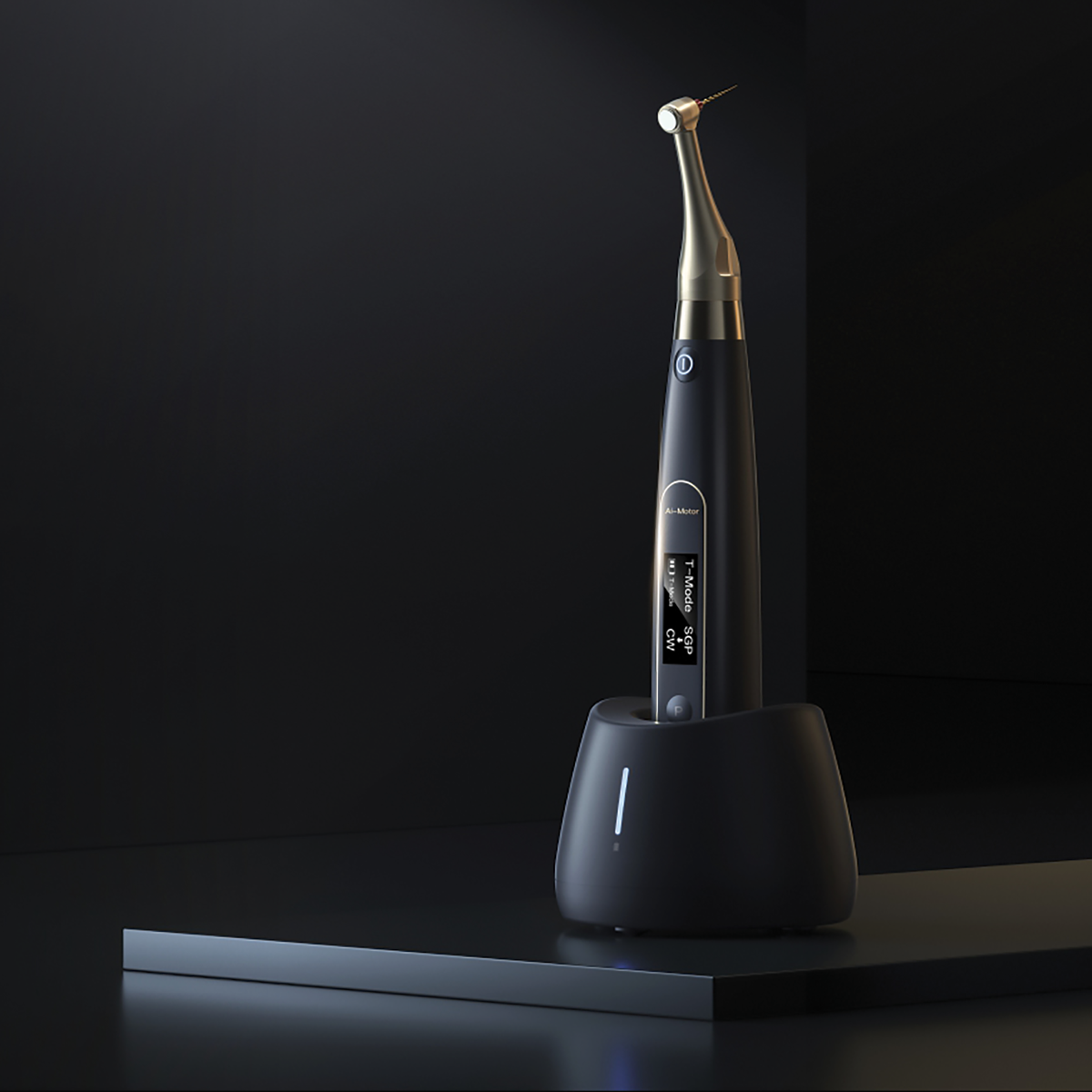

Woodpecker Ai-Motor Endo Handpiece

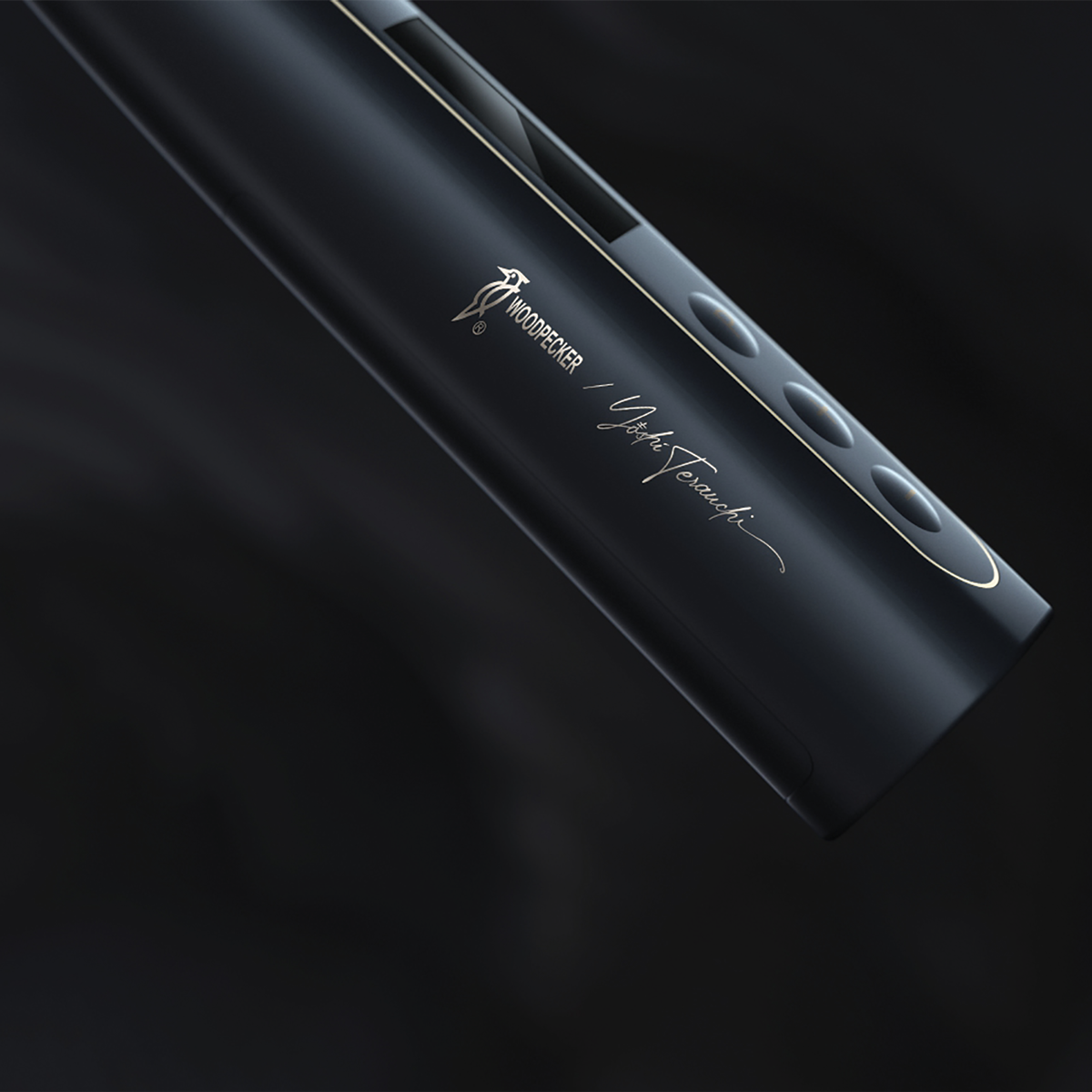

The Woodpecker Ai-Motor brushless endo motor handpiece was designed by internationally known endodontist Dr. Yoshi Terauchi. This complete endo motor has a built-in apex locator and high end features. Stable operation enables efficient preparation.

Product Features:

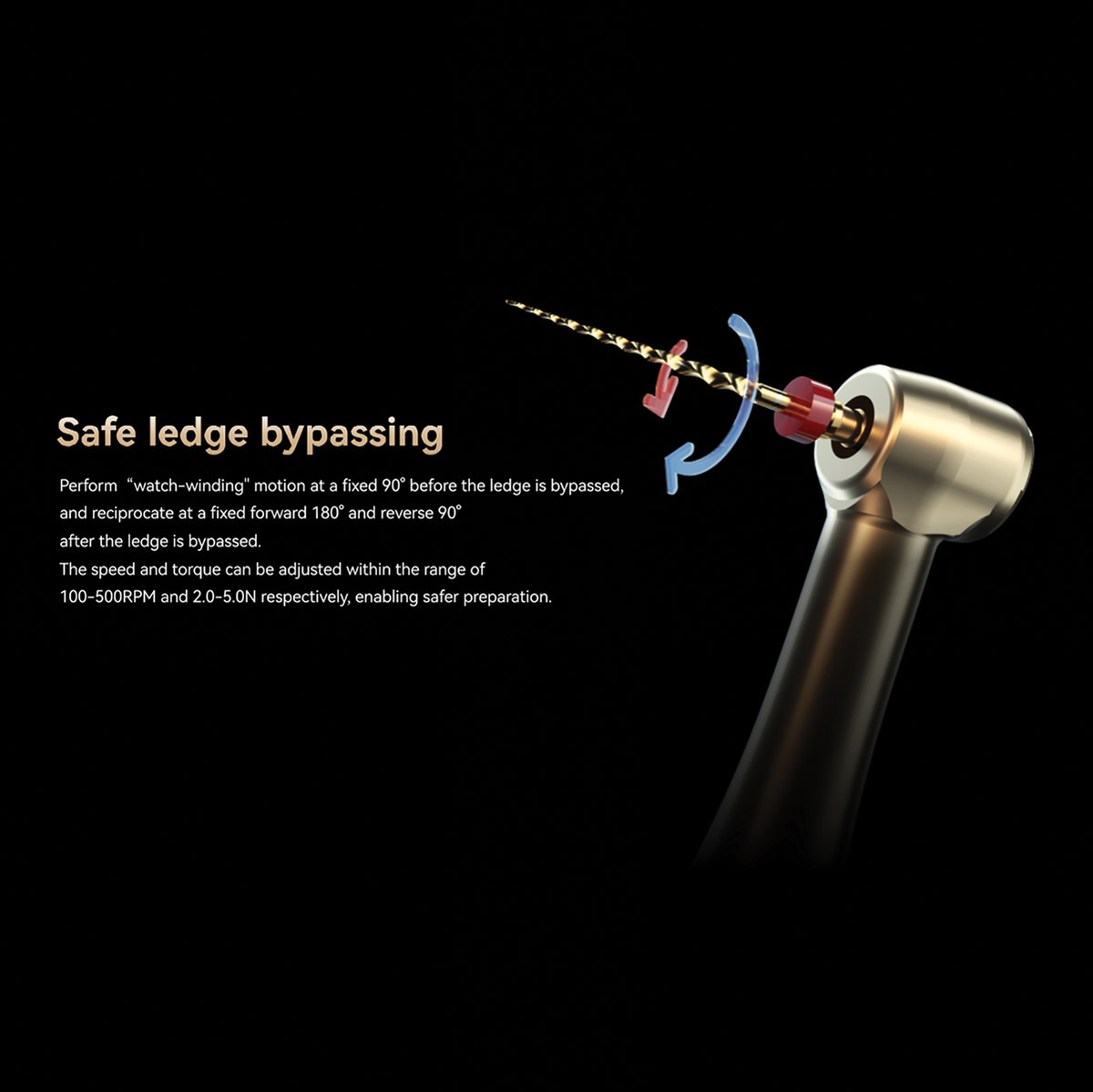

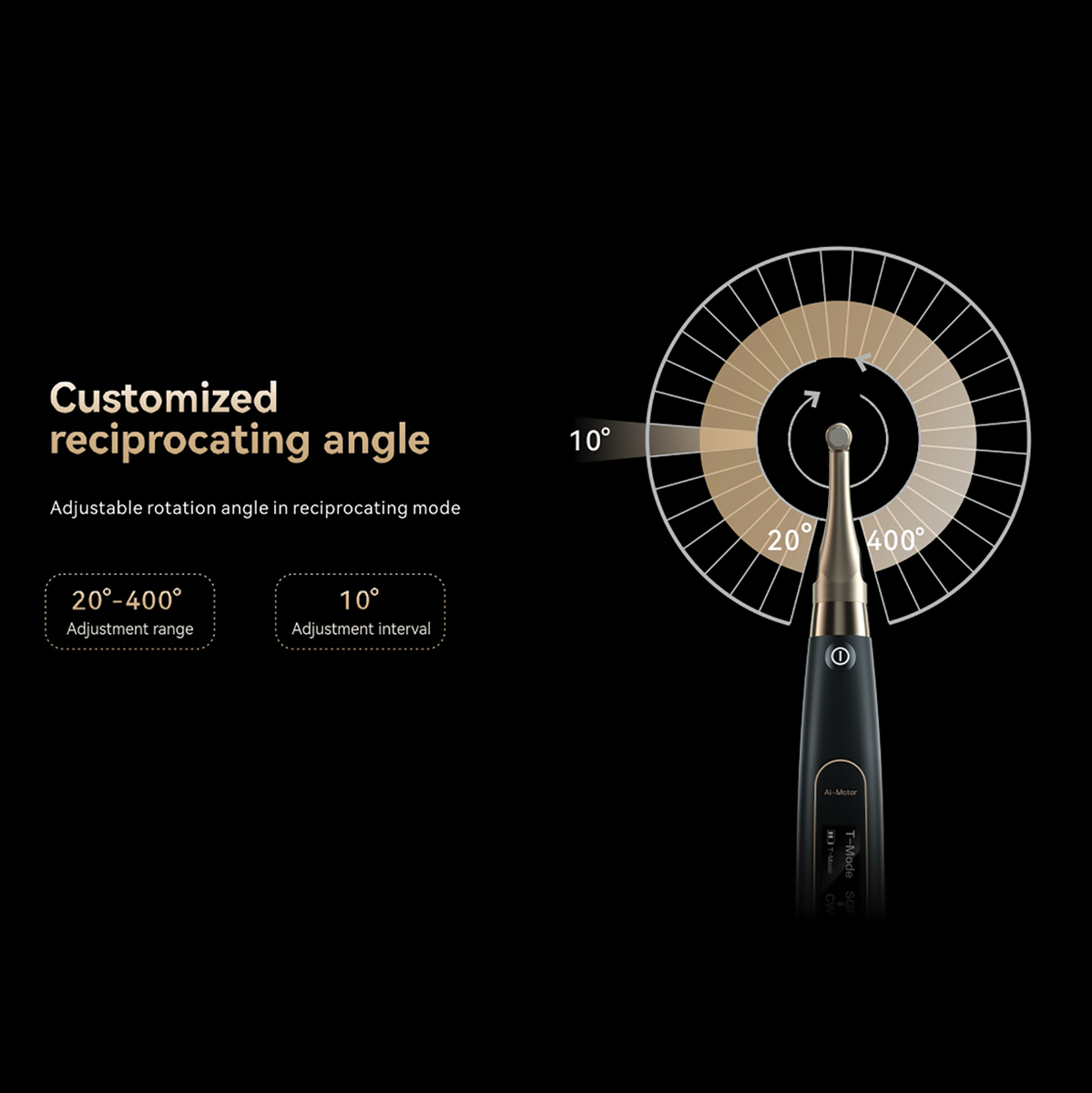

• Watch-winding for safe ledge bypassing at a fixed 90° before the ledge bypasses. It also reciprocates at a fixed forward 180° and reverse 90° after ledge bypasses.

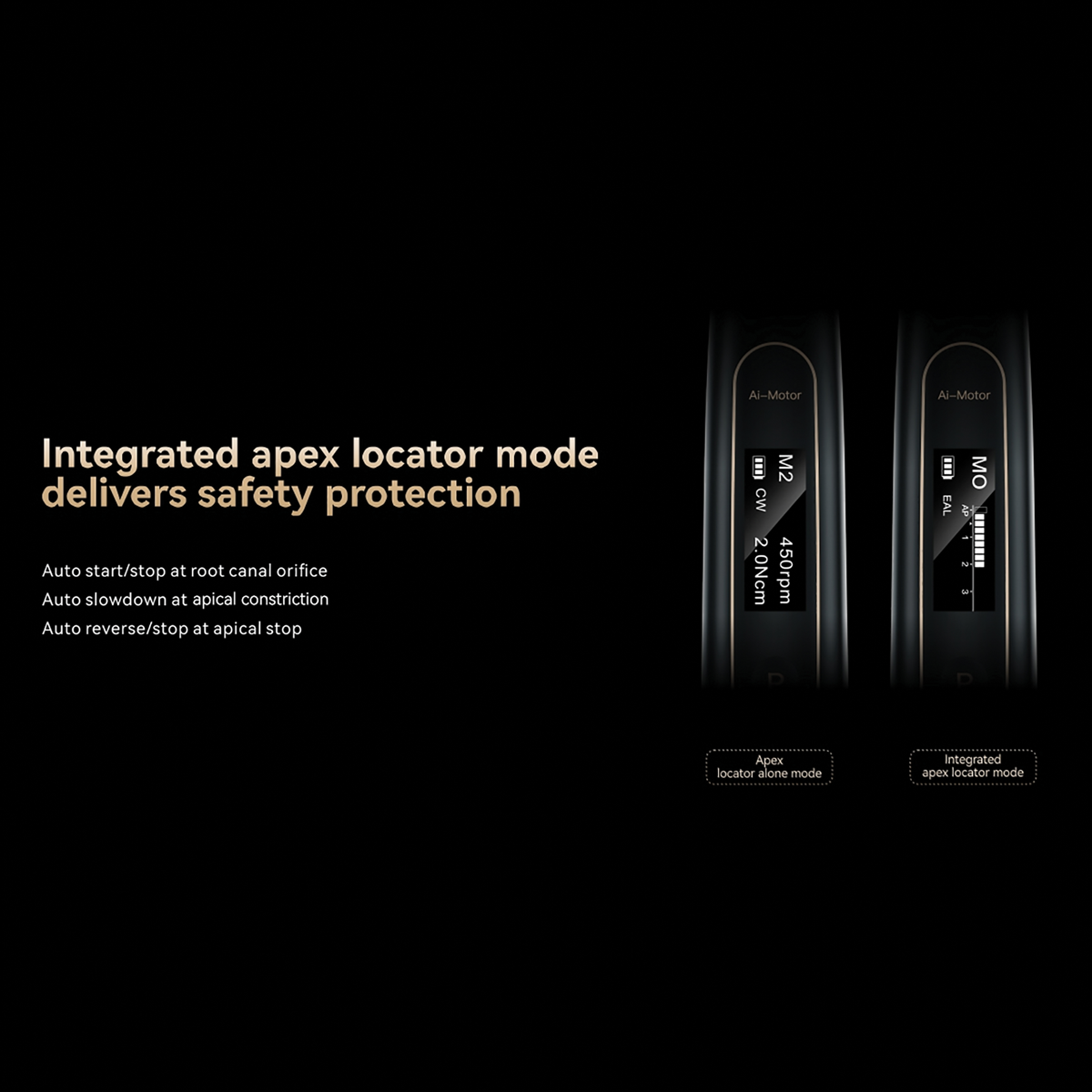

• Integrated apex locator with auto start and stop at orifice, slow down at narrow apex, and reverse and stop at apical stop.
• Speed and torque adjusts within the range of 100-500 RPM and 2.0 - 5.0 N respectively, which enables safer preparation of the tooth.
• Has a mini contra angle for easier preparation of posterior teeth and clearer surgical field.

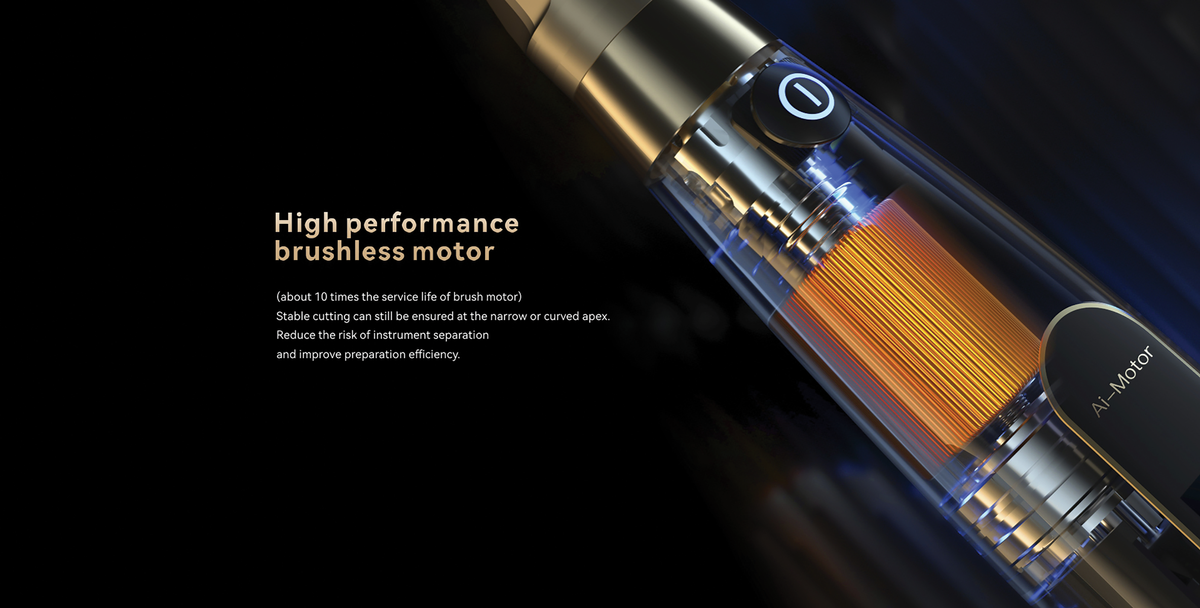

• High performance brushless motor last 10x longer than that of a brush motor.
• Stable cutting ensured at the narrow or curved apex - reducinging the risk of instrument separation and improved preparation.
• Compatible with most rotary file systems on market.
• Includes: Woodpecker Ai-Motor endo handpiece, measuring wire, (4) file clips, (2) lip hooks, and (2) probes.

Technical Specifications:

• Lithium battery in motor handpiece: 3.7V /2000mAh
• Power adapter (Model: ADS-6AM-06N 05050/UE08WCP- 050100SPA)
• Input: ~100V-240V 50Hz/60Hz 0.4A Max
• Output: 5.0V 1A
• Torque rang: 0.4Ncm - 5.0Ncm（4mNm ~ 50mNm）
• Speed rang: 100rpm ~ 2500rpm
• Two year manufacturer warranty on the main unit and 1 year warranty on the contra angle.
