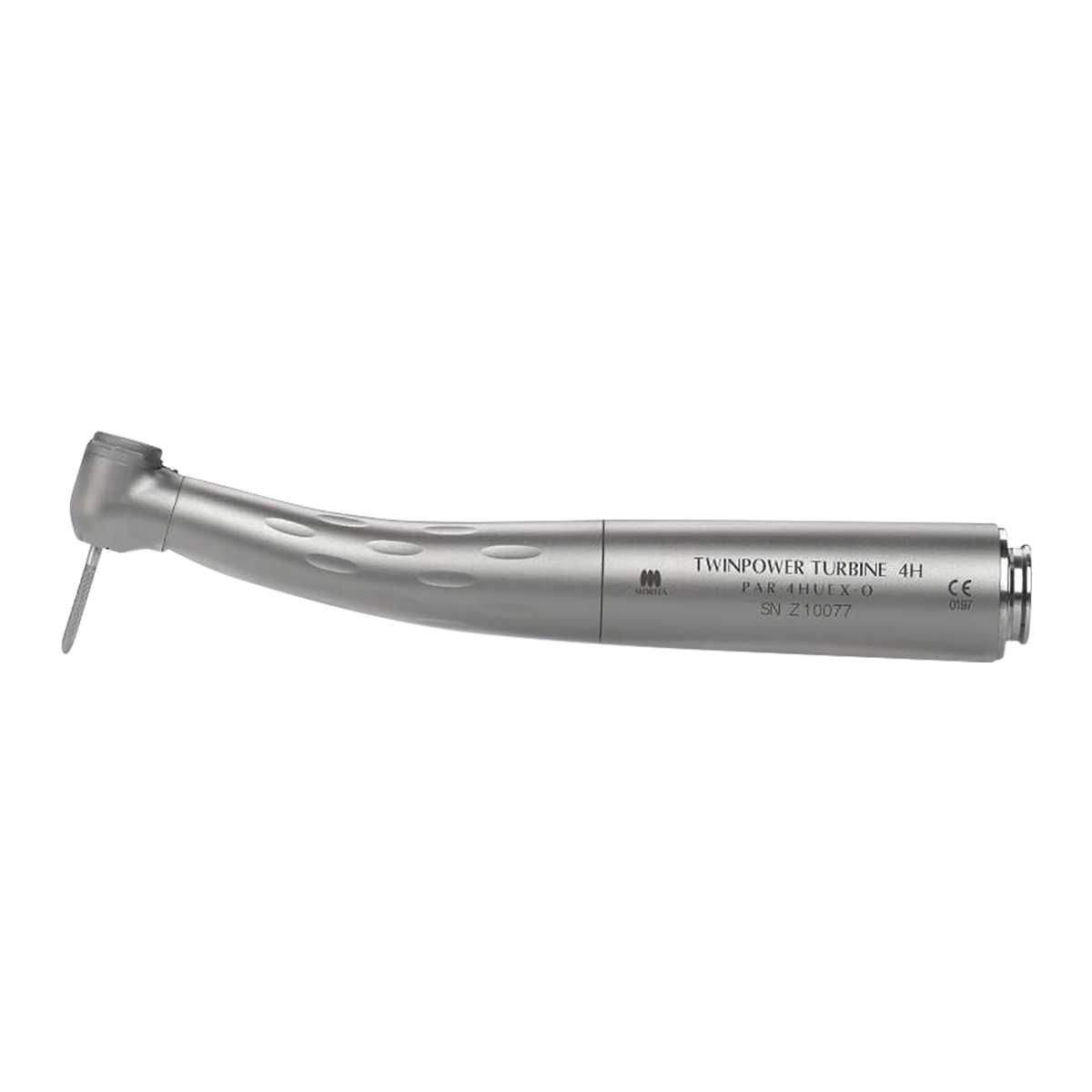

TwinPower Turbine UltraE Optic Handpiece (NSK Style)

TwinPower Turbine UltraE fiber optic handpiece with a NSK style coupler offers excellent cutting ability with smooth, chatter-free revolutions. Although they are mini handpieces, clinicians noted their power for every day tooth preparations. Use for both ceramic and metal prosthetics.

The UltraE style is slightly larger and more powerful compared to the UltraM style. Its head height of 12.7 mm and has up to 20 watts of power. UltraE facilitates an improved view with a mirror or a microscrope. Handpiece accepts any standard sized bur.

TwinPower Turbine Features:

• Zero-Drawback in the Air Line: promotes optimal contamination control.

  1. Drive air flows into an anti-drawback diffuser located inside the impeller capsule. The diffuser builds up air pressure thanks to the centrifugal force engendered by rotation.
  2. The rotation and centrifugal force enable the air to flow into the diffuser, where it remains compressed – even after the drive air ceases to flow.
  3. The compressed air in the diffuser is expelled on the lower side of the head.
  4. The exhaust air also expells by the impeller on the lower side of the head, via the diffuser.
  5. The air pressure that builds up in the diffuser prevents pressure loss in the head, thus completely eliminating the drawback effect.
• Unique Double-Impeller Technology: its TwinPower Turbine unique design delivers superior cutting power even under high load conditions. Air delivered from three drive air nozzles powers the primary impeller. The exhaust air directs through multiple fixed fins to power the second impeller. The operational result is far greater power, control, and precision. Has 36 impeller blades.
• Quick-Stop System: Rapid braking poses a particular challenge for ball bearing high-speed handpieces. The unique rubber brake ring, in its quick stop system, rapidly stops the turbine within 2 seconds, which allows for safer and more efficient preparations. During rotation, the uniquely designed rubber brake ring is pulled away from the turbine axis. During braking, the rubber brake ring rubs against the turbine axis, stopping it significantly faster – safer for both operator and patient.

Product Details:

• Directly compatible with a NSK® FlexiQuick Coupling
• Head Diameter: 9 mm | Head height: 12.7 mm
• Weight: 48g to 57g
• Glass rod optics, 25,000 LUX
• Rotation Speed: 370,000 ± 30,000
• Quiet and long-lasting ceramic ball bearings
• Ceramic coated surface
• Push button chuck
• Two year manufacturer warranty

SHIPPING: TwinPower Turbine UltraE optic NSK style handpiece ships directly from the manufacturer. Please allow 7-10 business days for delivery. This is a non-returnable item.
