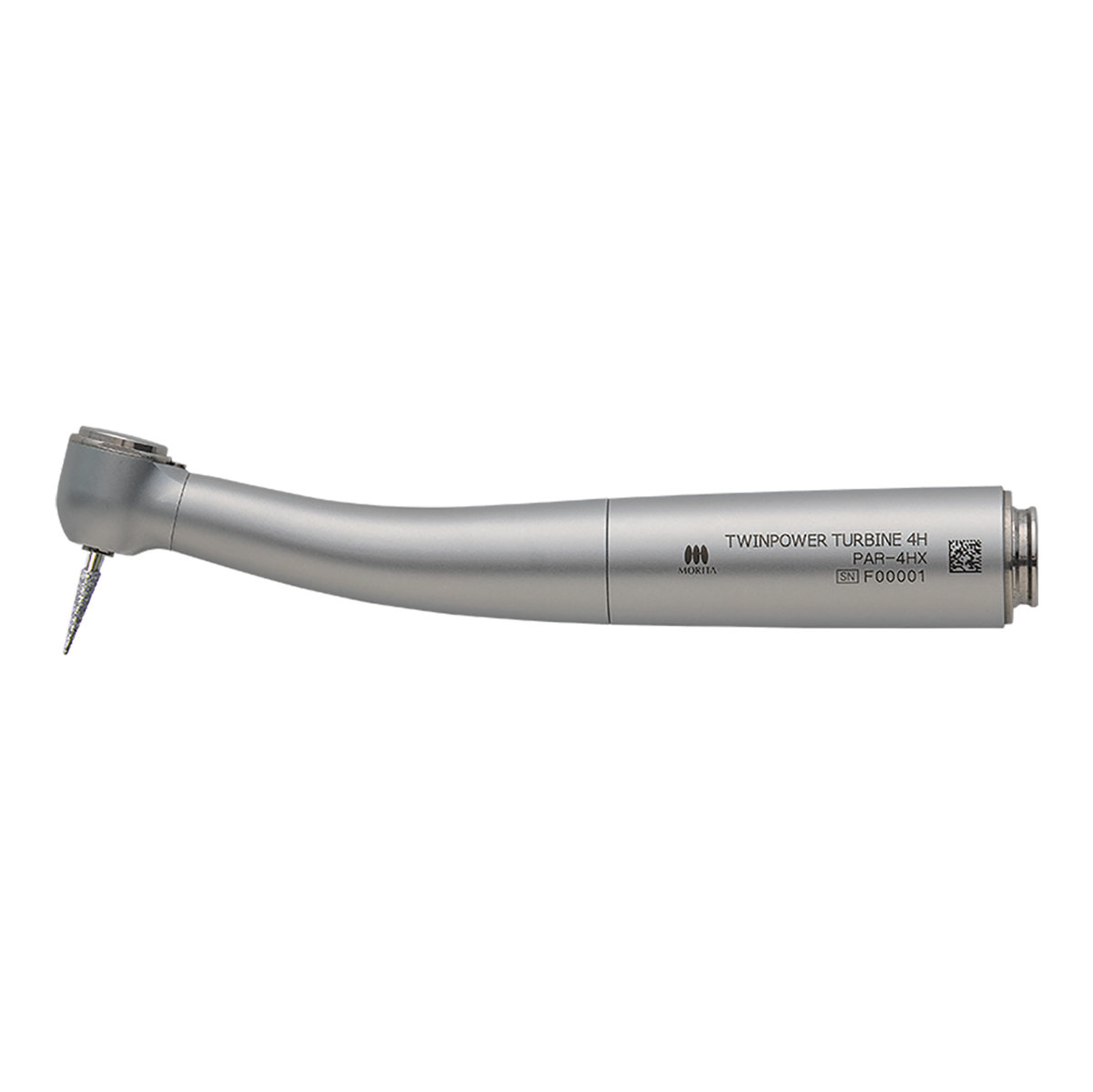

TwinPower Turbine High Torque Non Optic Handpiece (NSK Style)

Brand:

J. Morita

SKU#:

15-073

MPN#:

16-1818195
Price
Regular price $649.95
Quantity

The TwinPower Turbine High Torque non fiber optic handpiece with a NSK style coupler delivers superior cutting efficiency and reduced preperation time. Handpiece is equipped with the power to tackle nearly any clinical situation. For large preparations, or simply more power, this model is an exceptional choice.

Product Features:

  • Zero-Drawback in the Air Line: promotes optimal contamination control.
    1. Drive air flows into an anti-drawback diffuser located inside the impeller capsule. The diffuser builds up air pressure thanks to the centrifugal force engendered by rotation.
    2. The rotation and centrifugal force enable the air to flow into the diffuser, where it remains compressed – even after the drive air ceases to flow.
    3. The compressed air in the diffuser is expelled on the lower side of the head.
    4. The exhaust air also expells by the impeller on the lower side of the head, via the diffuser.
    5. The air pressure that builds up in the diffuser prevents pressure loss in the head, thus completely eliminating the drawback effect.
  • Unique Double-Impeller Technology: its TwinPower Turbine unique design delivers superior cutting power even under high load conditions. Air delivered from three drive air nozzles powers the primary impeller. The exhaust air directs through multiple fixed fins to power the second impeller. The operational result is far greater power, control, and precision. Has 36 impeller blades.
  • Quick-Stop System: Rapid braking poses a particular challenge for ball bearing high-speed handpieces. The unique rubber brake ring, in its quick stop system, rapidly stops the turbine within 2 seconds, which allows for safer and more efficient preparations. During rotation, the uniquely designed rubber brake ring is pulled away from the turbine axis. During braking, the rubber brake ring rubs against the turbine axis, stopping it significantly faster – safer for both operator and patient.

Product Details:

  • Directly compatible withNSK® FlexiQuick Coupling
  • Head diameter: 12 mm / Head height: 13.2 mm
  • Weight: 43g to 57g
  • Rotation Speed (rpm): 350,000 ± 30,000
  • Quiet and long-lasting ceramic ball bearings
  • Chrome body
  • Push button chuck
  • 1-1/2 year manufacturer warranty

SHIPPING: TwinPower Turbine torque handpiece NSK style ships directly from the manufacturer. Please allow 7-10 business days for delivery. This is a non-returnable item.
