Main Transport Repair Kit (Air Techniques)

Brand:

Replacement Parts Industries, Inc.

SKU#:

AT-291

MPN#:

ATK663
Price
Regular price $163.95
Quantity

Main transport repair kit compatible with the Air Techniques Peri Pro III film processor. Fits the transport assembly.

(OEM #94988)

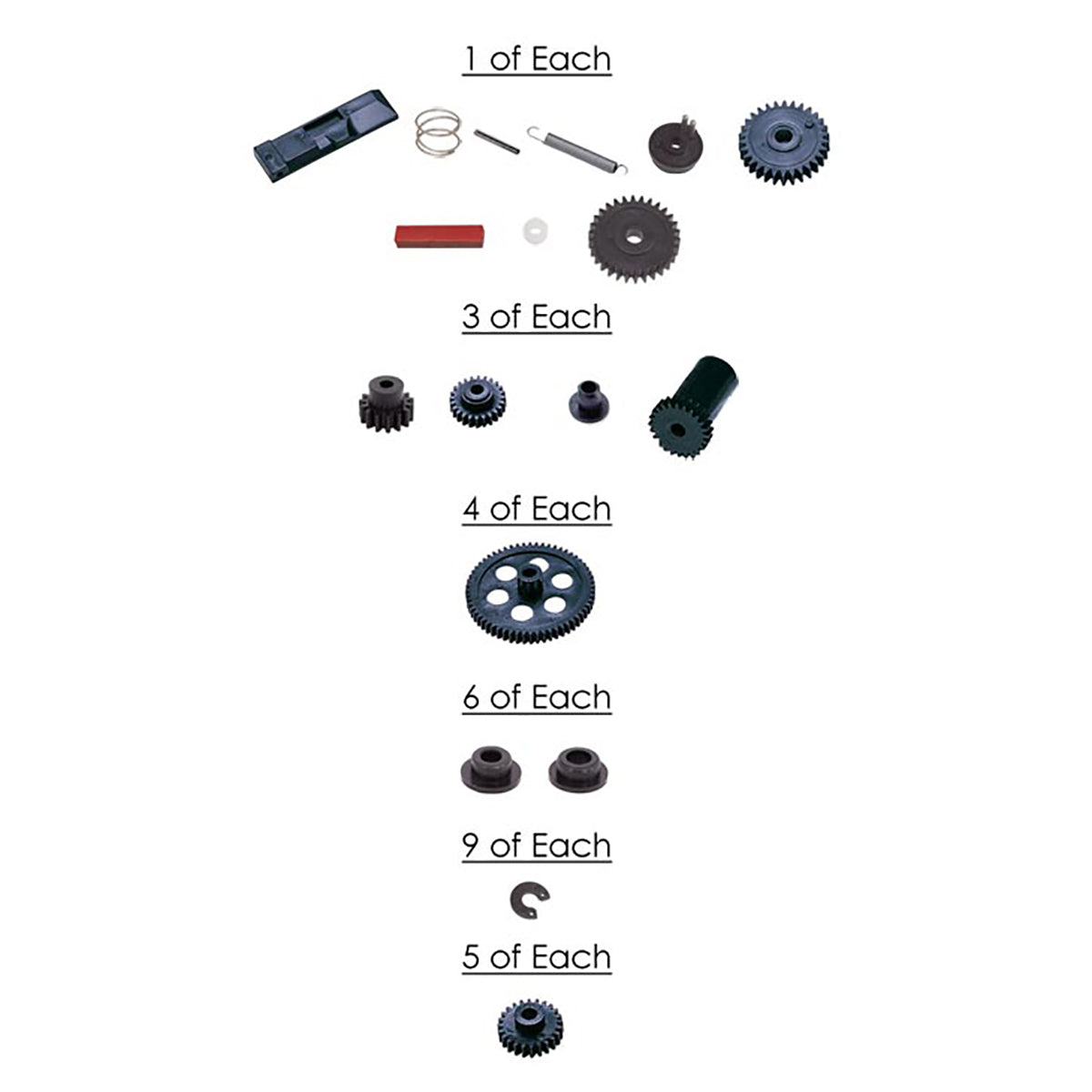

Air Techniques Transport Repair Kit Includes:

  • 1 each of: shutter release bar (#AT-00), compression spring (#AT-01), spring pin (#AT-02), extension spring (#AT-03), hub & pin assembly (#AT-041), timer gear (#AT-05), rubber plate bumper (#AT-09), spacer (#AT-042), speed reducer gear (#AT-051)
  • 3 each of: "L" arm gear (#AT-13), "U" transfer arm gear (#AT-20), "U" arm bearing (#AT-24), "L" transfer arm assembly without metal bracket (#AT-25)
  • 6 each of: "L" arm gear bushing (#AT-21), "U" arm gear bushing (#AT-22)
  • (5) idler gears (#AT-14)
  • (9) retaining rings (#AT-06)
  • (4) "U" drive arm gear (#AT-19)

INSTALL TIP: Use a pin punch or center punch to tap gears, shafts, and bushings for removal or installation. To avoid damage to the transport while tapping these parts, support the underside of transport frame with a several strips of wood in varying sizes (eg. 1"x1", 2"x2" and 2"x4") as needed. Installation Instructions (PDF)

NOTE: See #AT-29 for a Air Techniques Peri Pro I & II models.
