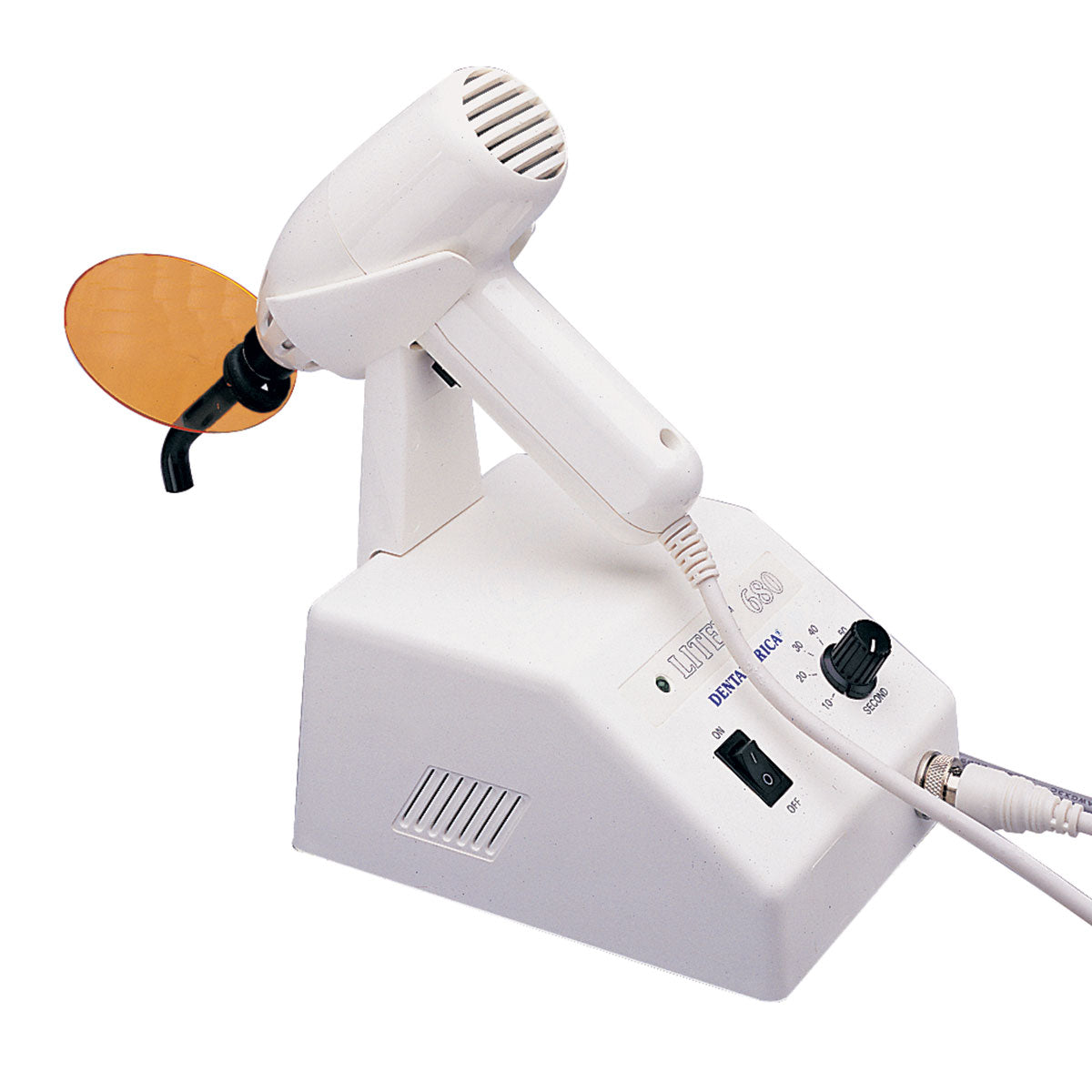

Litex 680A Curing Light

Litex 680A Curing Light

$339.95
Regular price

Product Number:

59-93
Unit price  per

The Litex 680A curing light has a variable timer setting from 10-60 seconds with reminder beep.

Product Details:

  • Ergonomically designed "pistol grip" for maximum comfort.
  • Power output of 400-500 mw/cm².
  • Input Power: 115V 60 Hz AC
  • Output Power: 75W
  • Light bulb: 12V 75W
  • Dimensions: 6.3" W x 4.9" D x 3.2" H
  • One year warranty.
  • Includes: control unit, Litex 680A curing light handpiece, handpiece rest, 9 mm probe, cable, eye protection shield, and instructions.

To Replace Bulb:

  1. Remove the screw located in the lower part of the handle and separate housing.
  2. Then remove and replace curing bulb. Do NOT tough the light bulb surface with your fingers. Oil from hands cause uneven radiation on the surface and result in a broken bulb.
  3. Finally align both pieces of the housing, reinsert screw, and tighten.

Replacement Parts:
Bulb (#20-125)
Eye shield (#59-92)
9mm probe (#59-94-9)
Wall mount kit (#59-93-W)
Handle back (#59-93-680B)
Fan & motor (#59-93-FM)
