Lares 557 Push Button Turbine
Price
Regular price
$122.95
Quantity
Couldn't load pickup availability

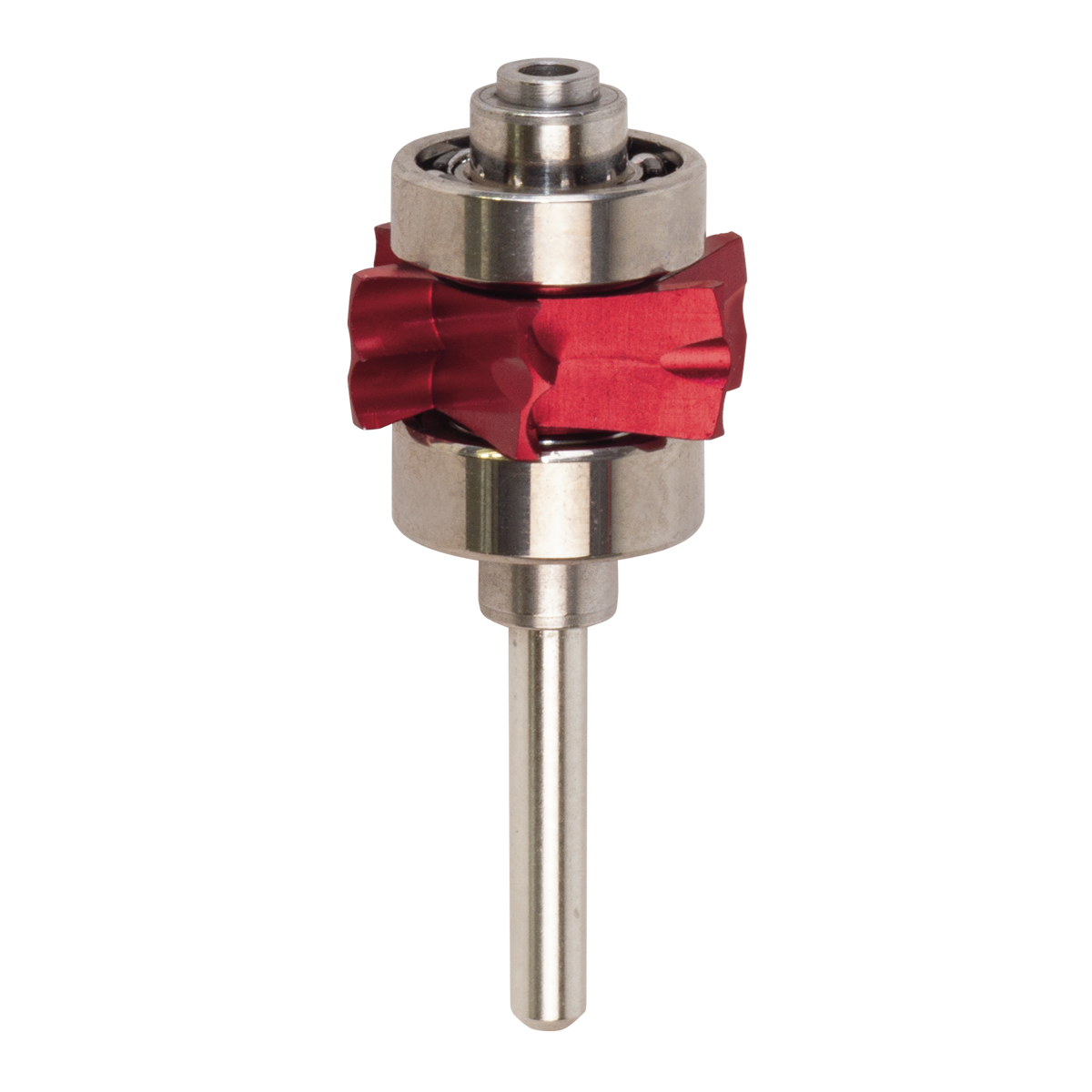

This is a replacement turbine for the Lares 557 push button handpiece.
Product Details:
- Does NOT include the end cap.
- Made in the USA.
- Six month warranty.
Replacement Parts:
- End cap (#25-77-C)
- End cap wrench (#25-77-W)
- Bearing kit (#25-206)
- Turbine spindle (#25-313)
- Two-piece turbine impeller (#25-408)
Replacement Instructions for Lares 557 Push Button Turbine (PDF):
- Using specialized wrench provided with your handpiece, unscrew cap from handpiece head and remove worn turbine by pushing out from the front.
- Interior of head must be inspected for foreign material and debris—remove if present.
- Compare worn turbine to new turbine to identify any components that may still be present in your handpiece. Use a scaler or explorer to remove all old turbine components including any shims, o-rings, washers, or bearing retainers.
- Once all old turbine components have been removed, use a cotton swab and handpiece lubricant to clean handpiece head. Using air from the air/water syringe, blow out handpiece head to remove any cotton fibers.
- Generously lubricate the interior of the handpiece, paying particular attention to the o-rings.
- Hold handpiece face down and insert turbine fully into handpiece head.
- Using the appropriate tool, screw end cap down until flush against handpiece head.
