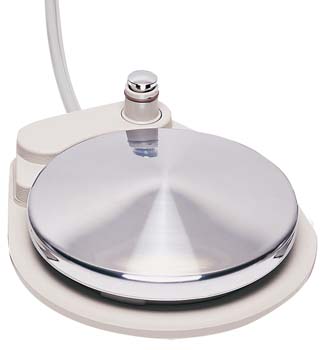

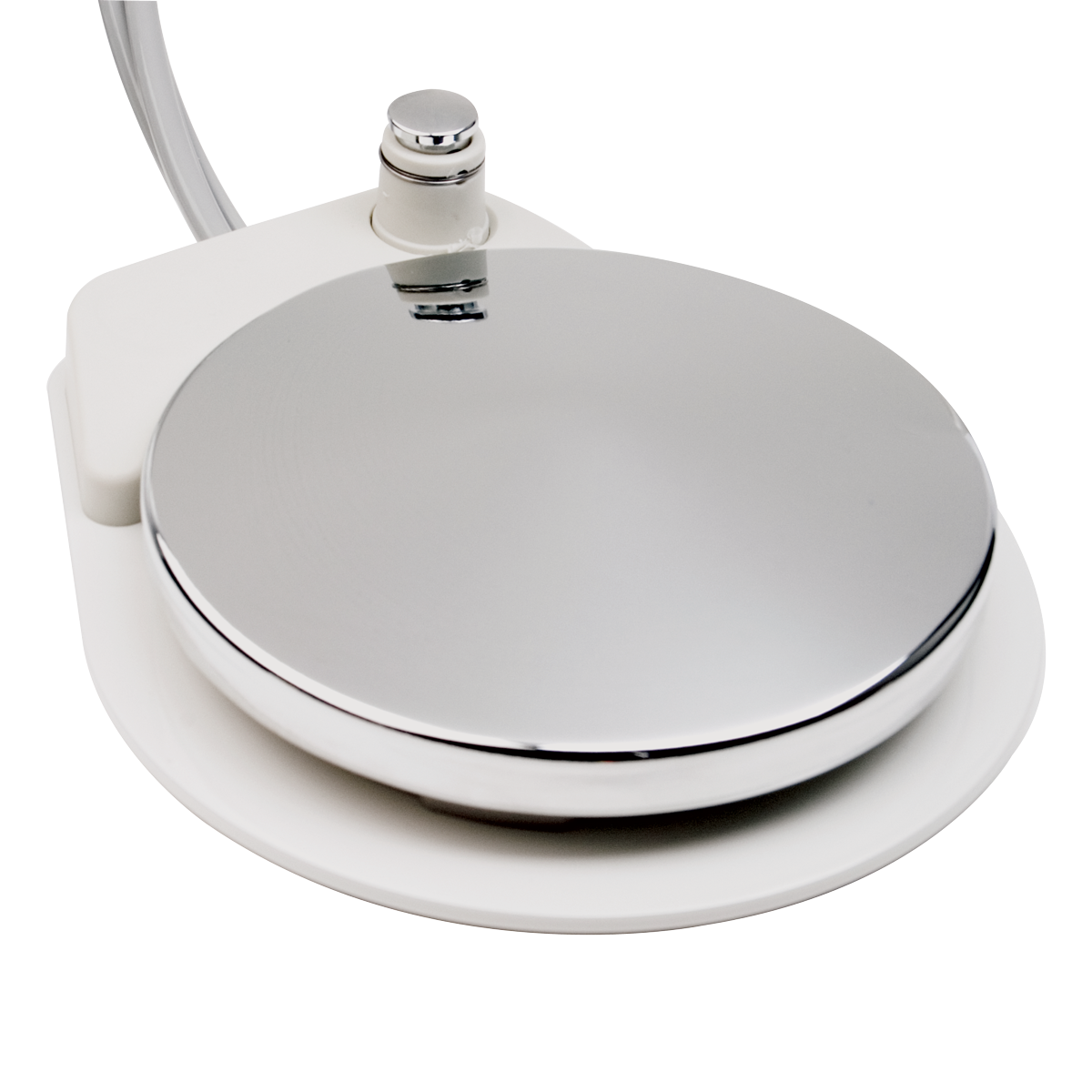

Chip Blower/Scaler Foot Control (3 Hole)

Brand:

DCI Equipment

SKU#:

04-03
Price
Regular price $139.95
Quantity

Universal chip blower/scaler foot control with 3 hole tubing for use with non A-dec equipment.

Product Details:

  • Provides consistent variable speed operation.
  • Features an air on/off button for chip blower or scaler option. Accessories must be pre-configured on the delivery unit with an existing line for each accessory.
  • Foot control has a 5-1/4" diameter activation disk with a non-skid metal base.
  • Includes: 7' of 3 hole tubing.

Installation Instructions (PDF):

  1. Turn the delivery unit off.
  2. Note where each line of your existing foot control connects and disconnect them. The large "ribbed" tubing connects to the source of air in the junction box. The large "non-ribbed" tubing connects to the unit for drive and coolant air. The small tubing connects to the unit for an air signal to activate accessories.
  3. Then, apply liquid soap to the tubings and slip sleeve clamps over tubings (approximately 3/8" from the end) with the internal bevel facing the barb.
  4. Next, slip the tubing over the barb and lock tubing by sliding sleeve clamp over the tubing portion on the barb with a pliers or sleeve tool.
  5. Lastly, turn your unit on and test for leaks and proper function.
