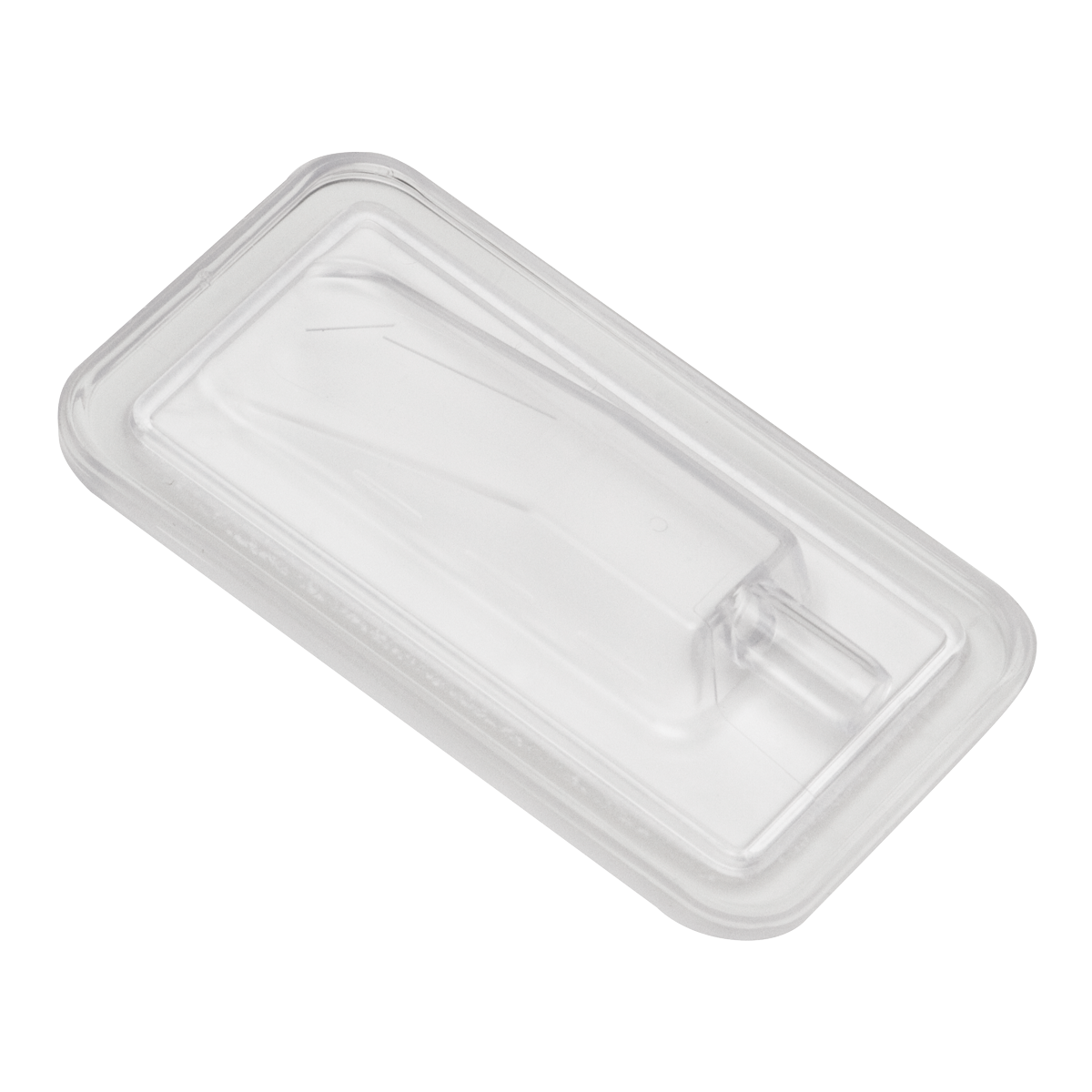

Biological Filter (Statim)

Replacement biological filter fits the air compressor on Statim autoclaves.

Product Details:

• For models 5000 and 2000 (with a serial number of 2101DK0274 and above).
• Overall Dimensions: 1-3/5" W X 2-7/10" L X 4/5" T
• Has a 3/16" inner diameter hose connector.
• Recommended to be relaced every 6 months or every 500 cycles (whichever comes first).
• OEM #01-102119S

Instructions for Changing the Filter:

1. Turn the power switch at the back of the unit off.
2. Disconnect tube A from the Statim biological filter and remove the filter from the bracket. As you remove the filter from the bracket, note the orientation of the arrow mark on the filter.
3. When the filter is free of the bracket, carefully disconnect tube B from the filter.
4. Before installing the replacement bacteria retentive filter, check that the arrow mark on the filter matches the direction of the arrow on the bracket. Push the left hand filter fitting into tube B.
5. Gently press the replacement filter into the filter bracket. The arrow mark of the filter should be facing out and pointing to the left.
6. Re-connect tube A to the right hand filter fitting.
