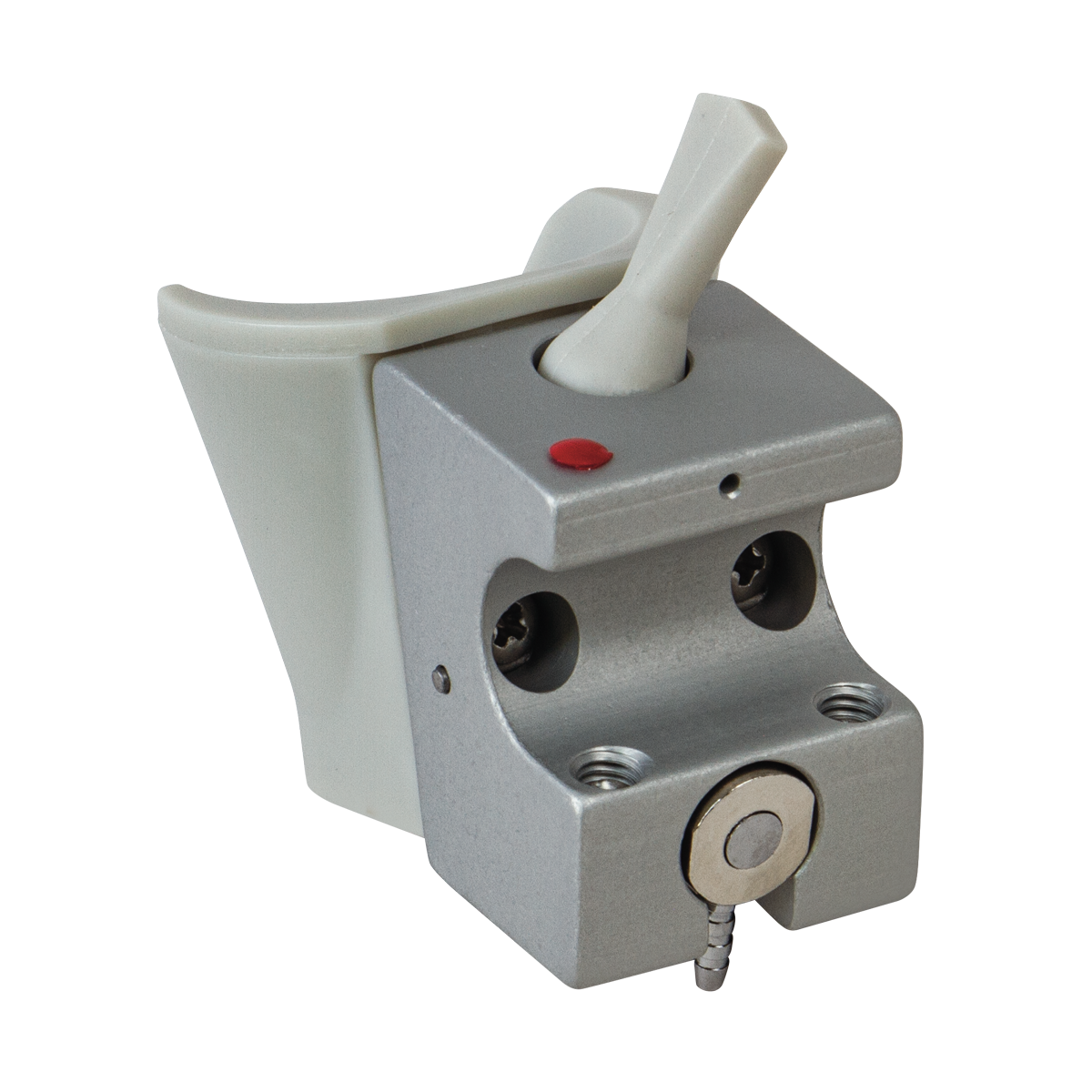

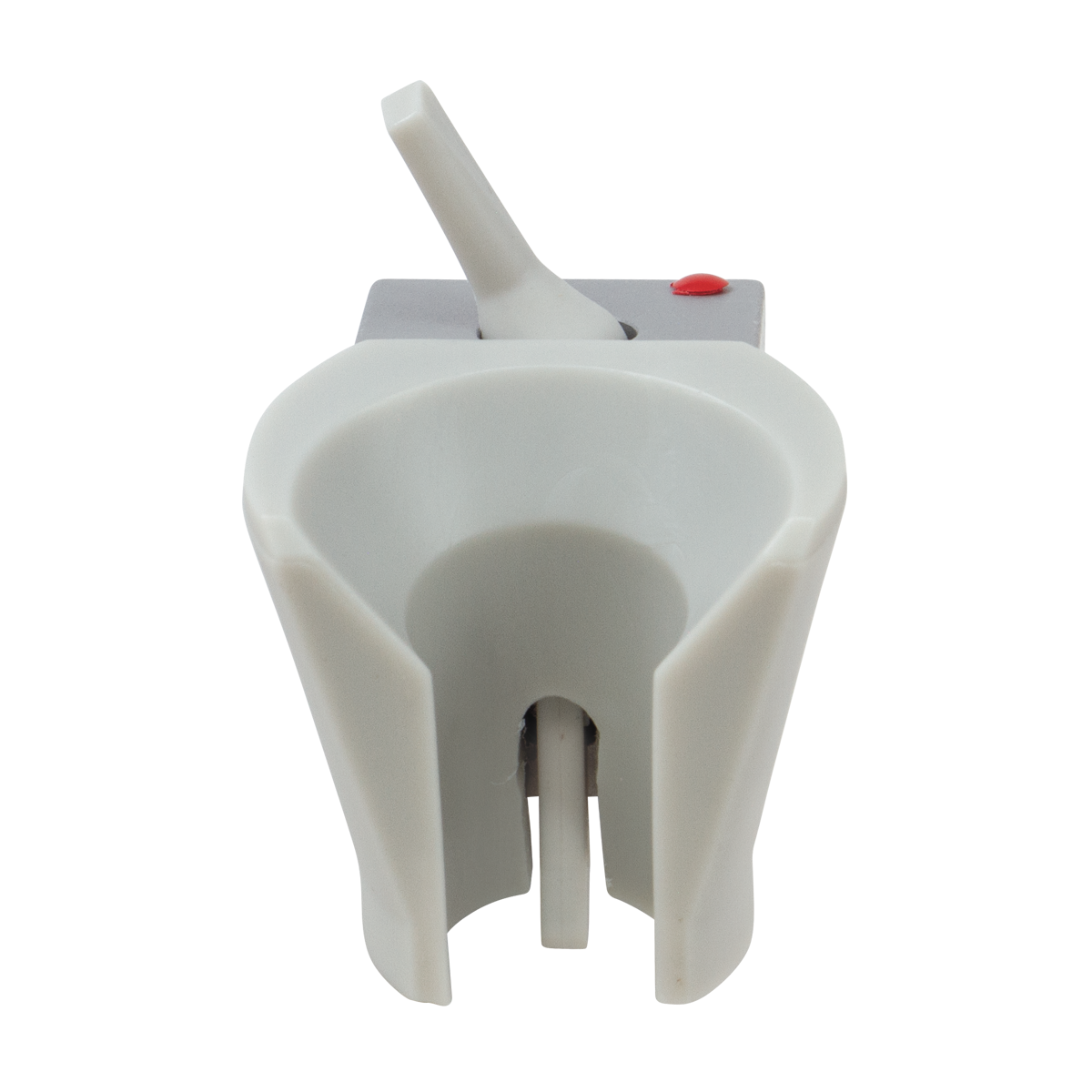

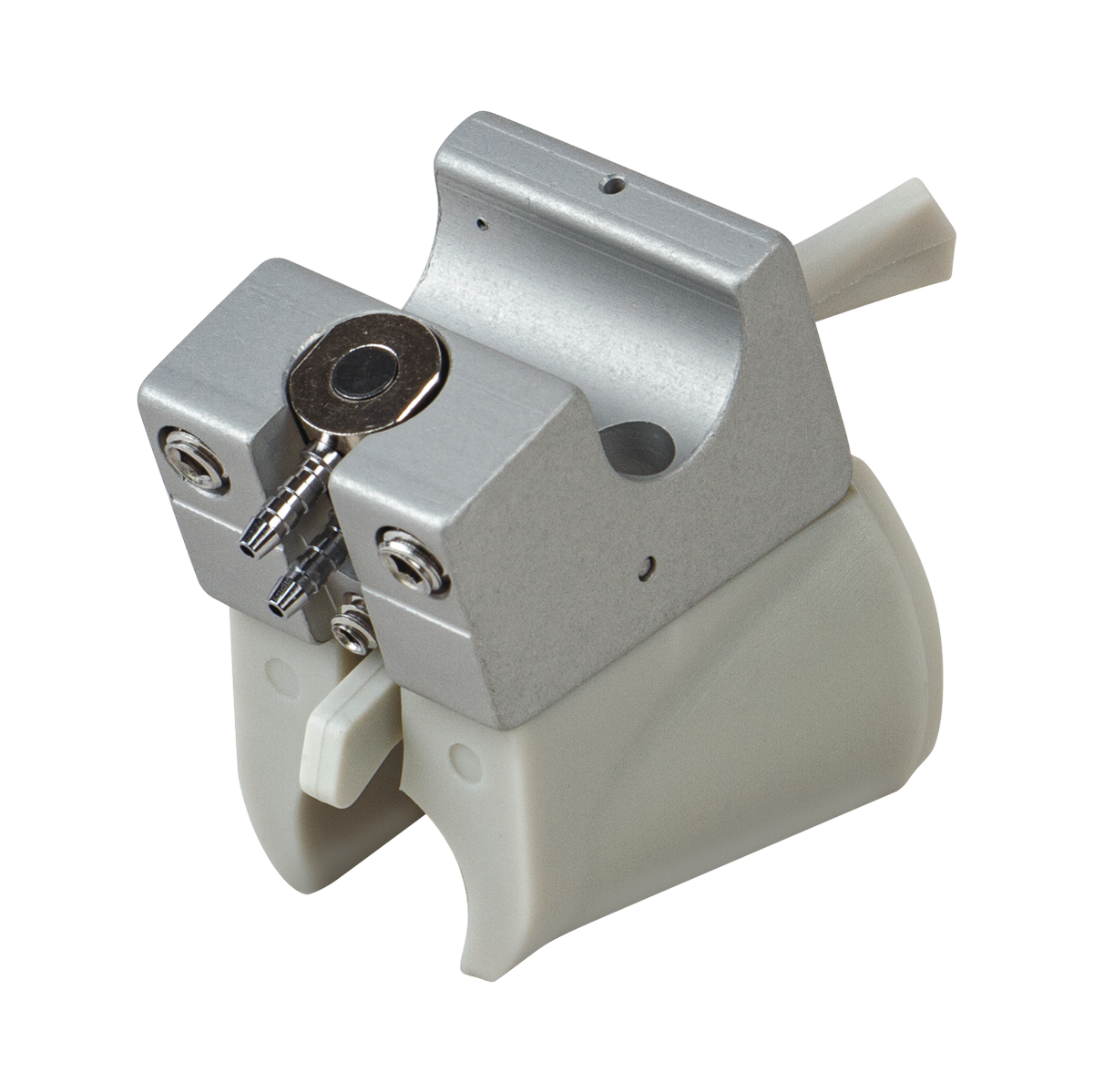

The auto handpiece holder with top lockout is a space-saving solution for dental operatories. It automatically activates your handpiece when removed from the holder and shutting it off when returned. The convenient top-mounted lockout toggle gives you instant on/off control without reaching for foot pedals, improving workflow efficiency and reducing assistant fatigue during procedures.
Key Benefits:
-
Automatic Activation: Handpiece turns on when lifted from holder and off when returned - no foot pedal needed for basic on/off.
-
Top Lockout Toggle: Convenient top-mounted switch allows instant handpiece shutdown without using the foot control.
-
Improved Workflow: Reduces reliance on foot pedals, freeing up foot control for speed adjustment only.
-
Reduced Assistant Fatigue: Eliminates constant foot pedal operation for simple on/off functions.
-
Space-Saving Design: Keeps handpiece organized and accessible while freeing up counter space.
-
Universal Mounting: Attaches to standard 1/2" diameter holder bars with secure set screws.
-
Durable Construction: Built to withstand daily clinical use and repeated handpiece placement.
Installation Instructions:
-
Position on Bar: Slide the holder onto your 1/2" diameter holder bar in the desired location.
-
Align Properly: Orient the holder so the top lockout toggle is easily accessible and the handpiece opening faces the operator.
-
Tighten Set Screws: Use an allen wrench to tighten the set screws securely (do not over-tighten).
-

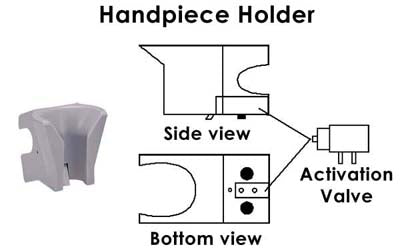

Connect Air Line: Attach your handpiece air supply line to the holder's activation valve.
-
Test Activation: Place handpiece in holder and remove it to verify automatic activation works properly.
-
Test Lockout: Toggle the top switch and verify handpiece remains off when removed from holder.
-
Adjust Position: If needed, loosen set screws and reposition for optimal ergonomics.
NOTE: For a replacement activation valve, see #10-10.
