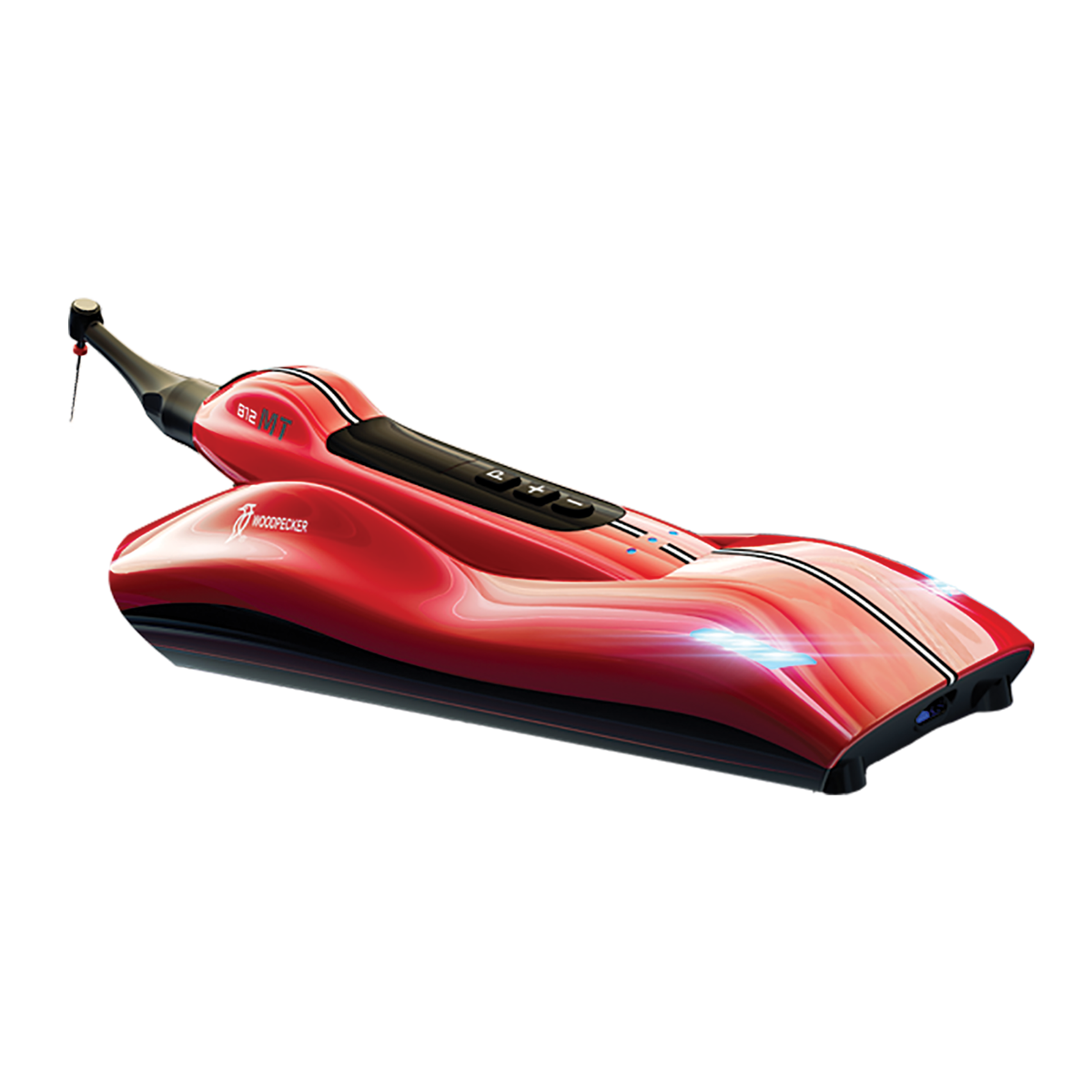

The Woodpecker 812 MT endo motor handpiece with apex locator was designed by internationally known endodontist Dr. Yoshi Terauchi. Cordless handpiece for the preparation and enlargement of root canals or for measuring canal lengh, as well as agitation compaction of MTA. Also for enlarging the canals while monitoring the position of the file tip inside the canal.
Product Features:

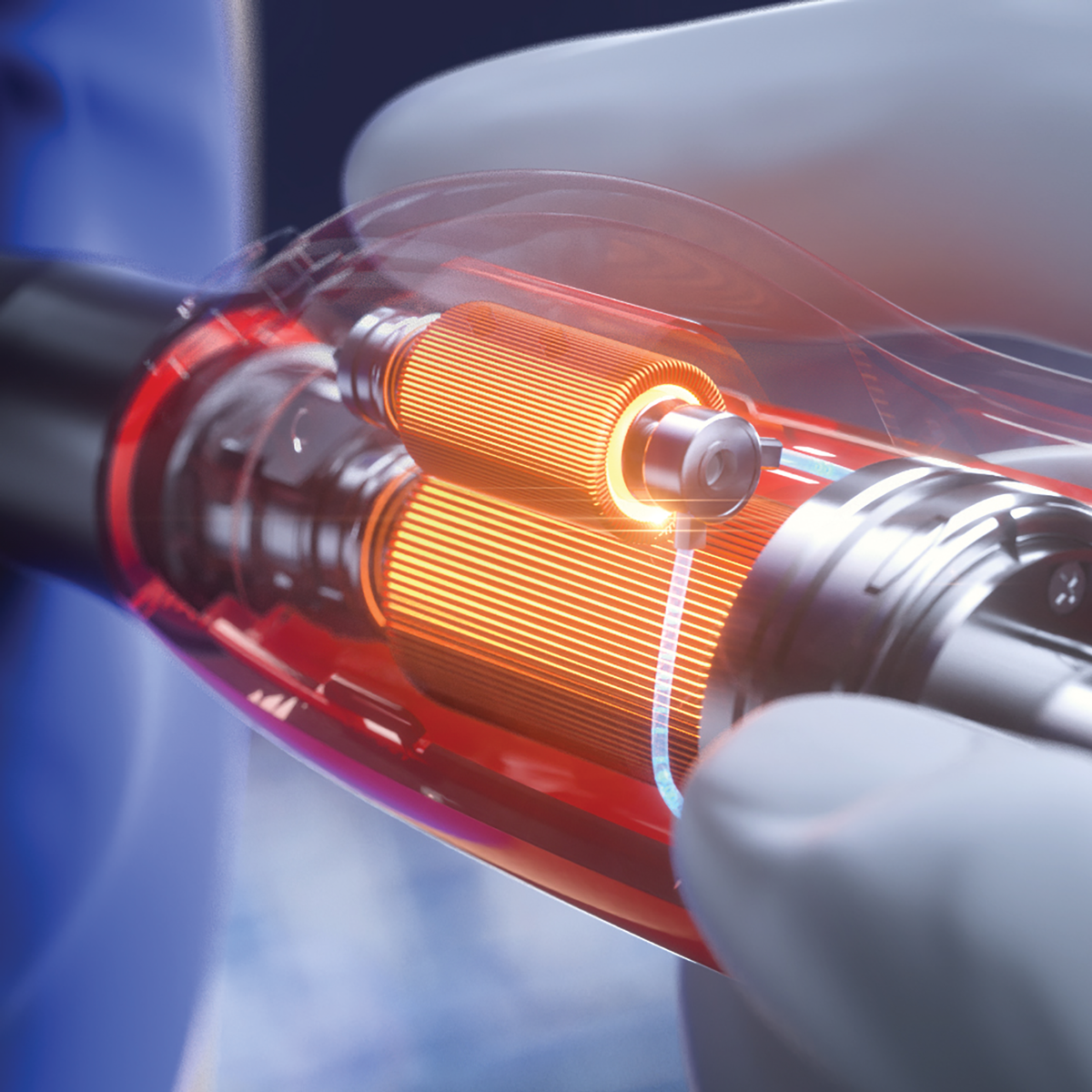

- Brushless motor with low noise and 10x the service life of a brush motor.

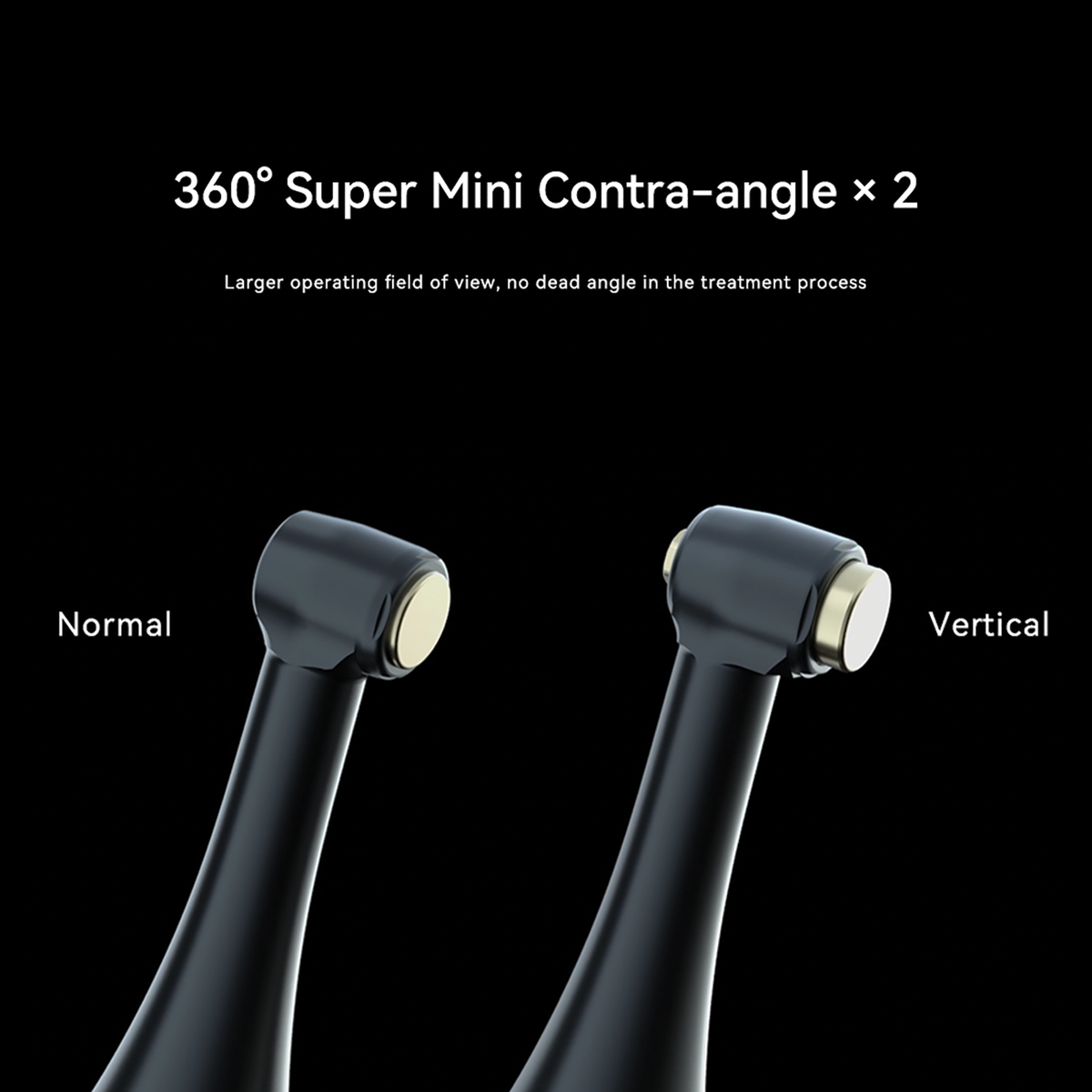

- Contra angle rotates up to 360°.
- Adopts real-time feedback technology and dynamic torque control, which helps with file separation.

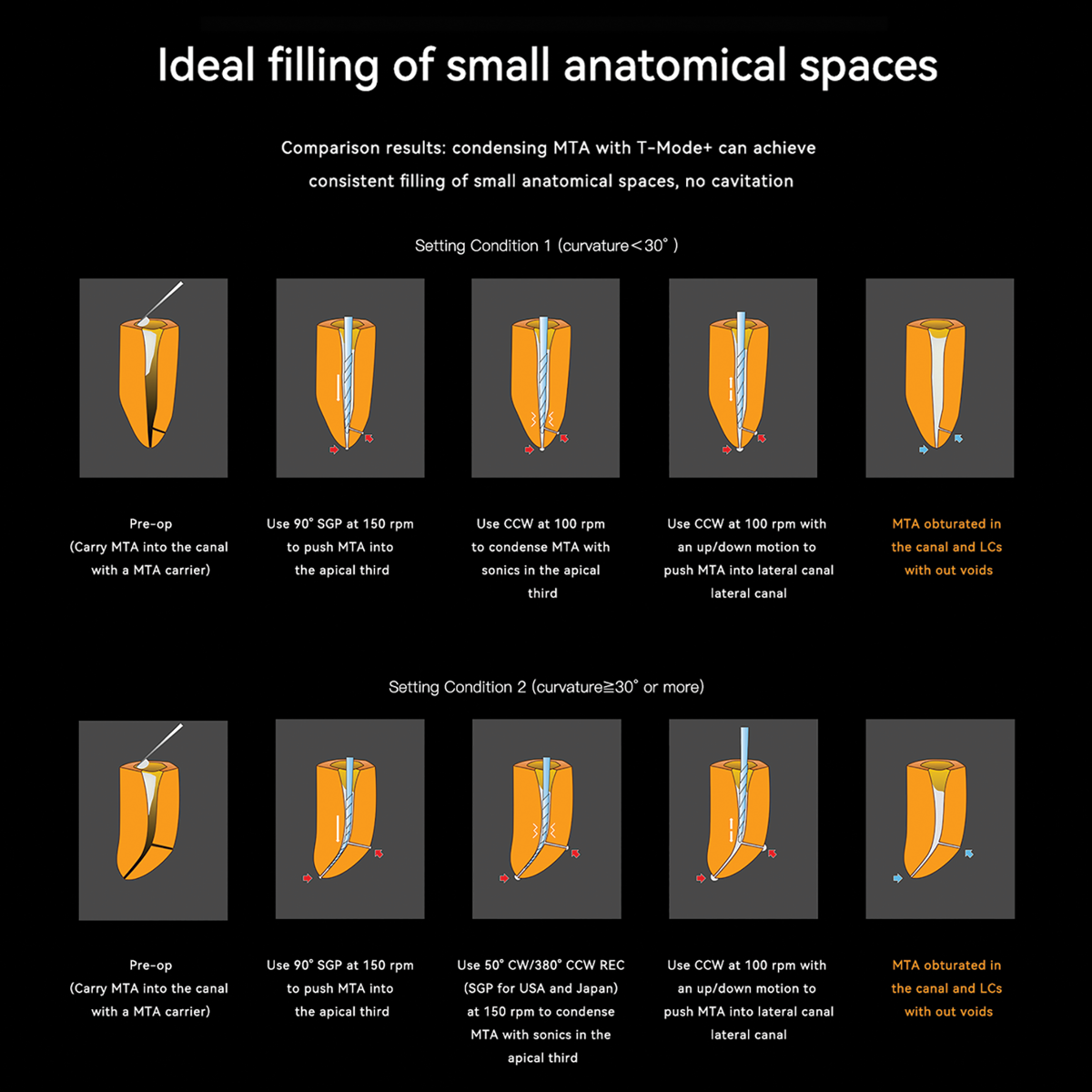

- Its rotation and vibration works together to assist in the compaction of MTA.

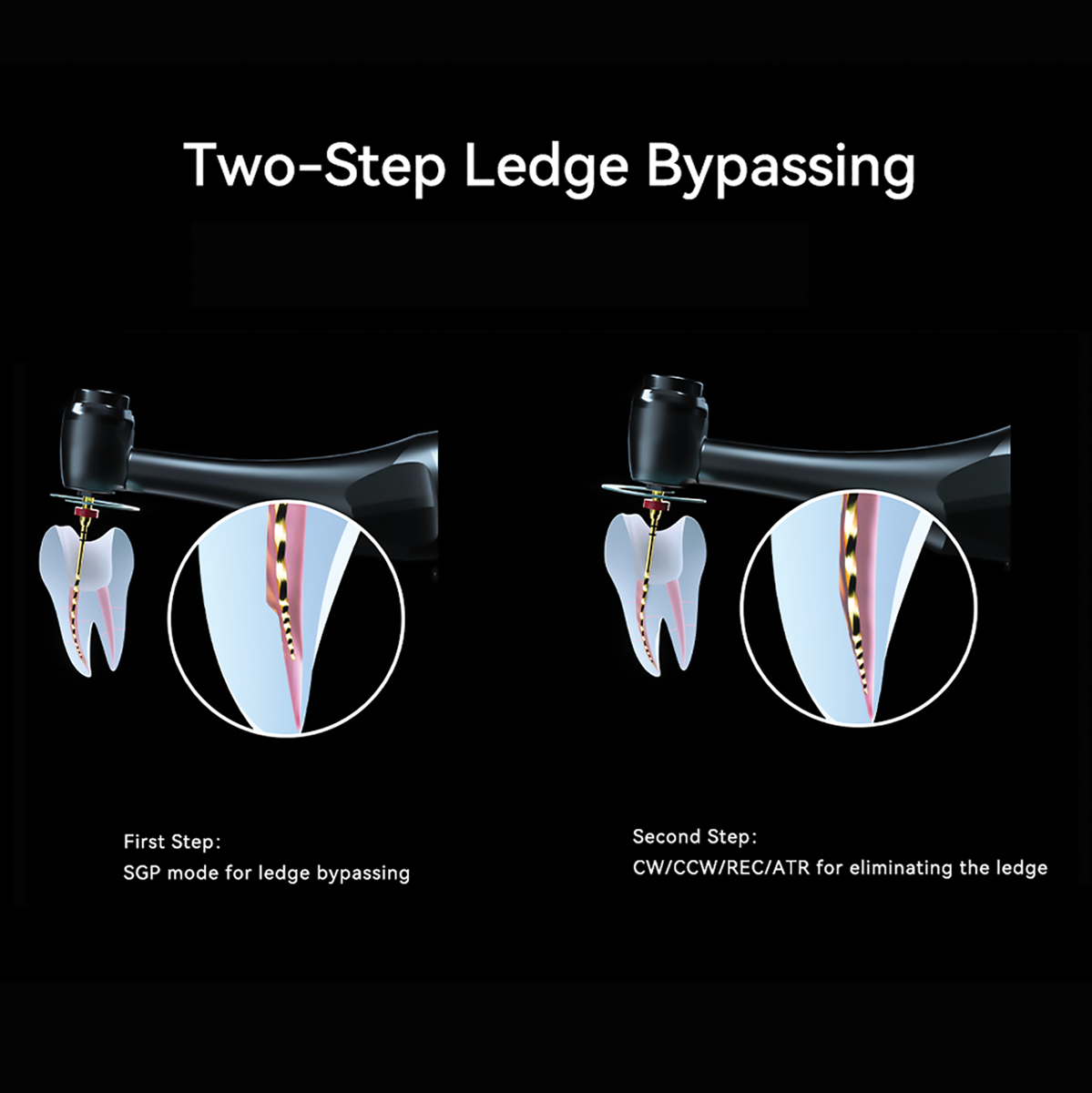

- Two-step ledge bypassing of root canal.

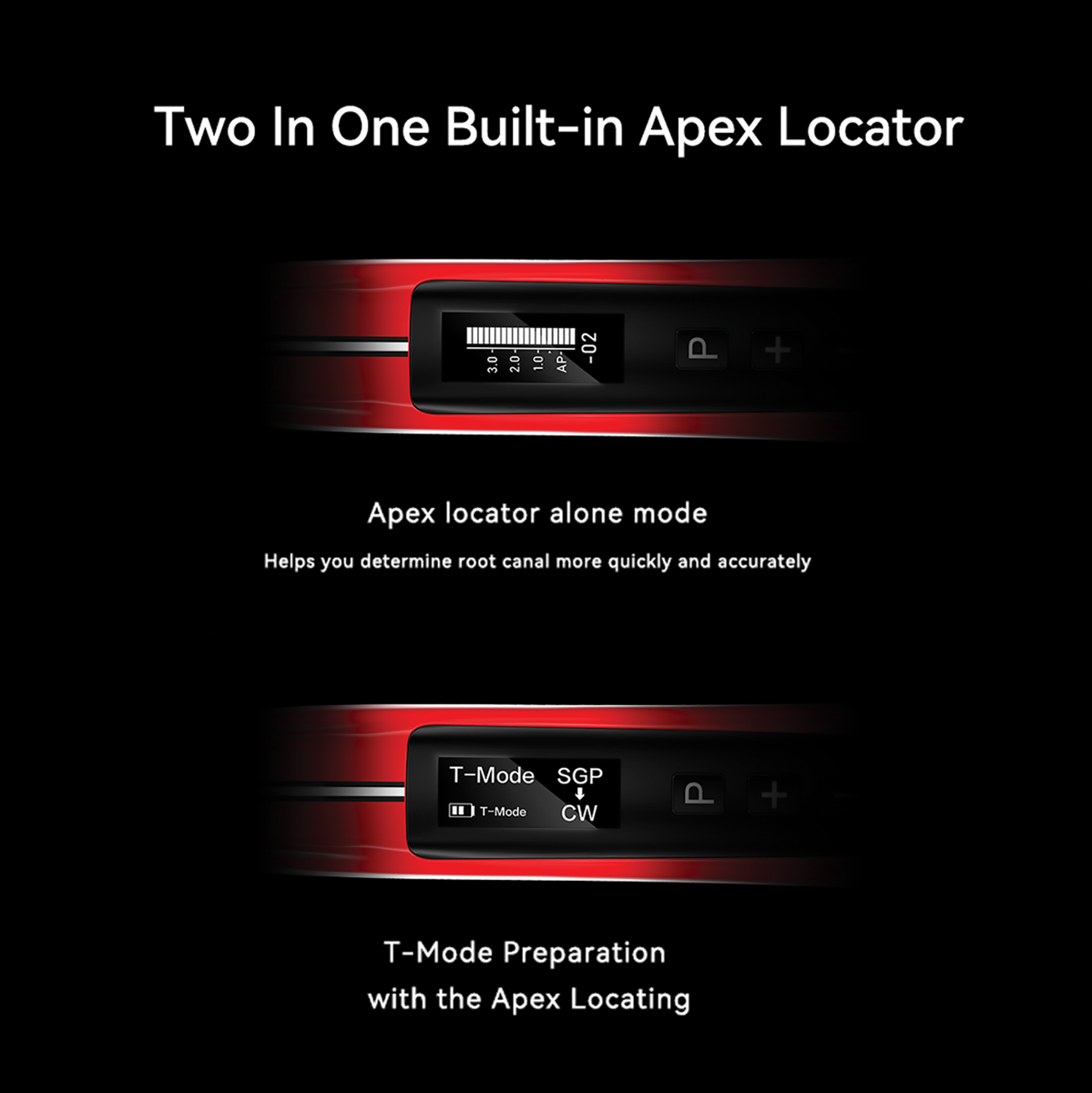

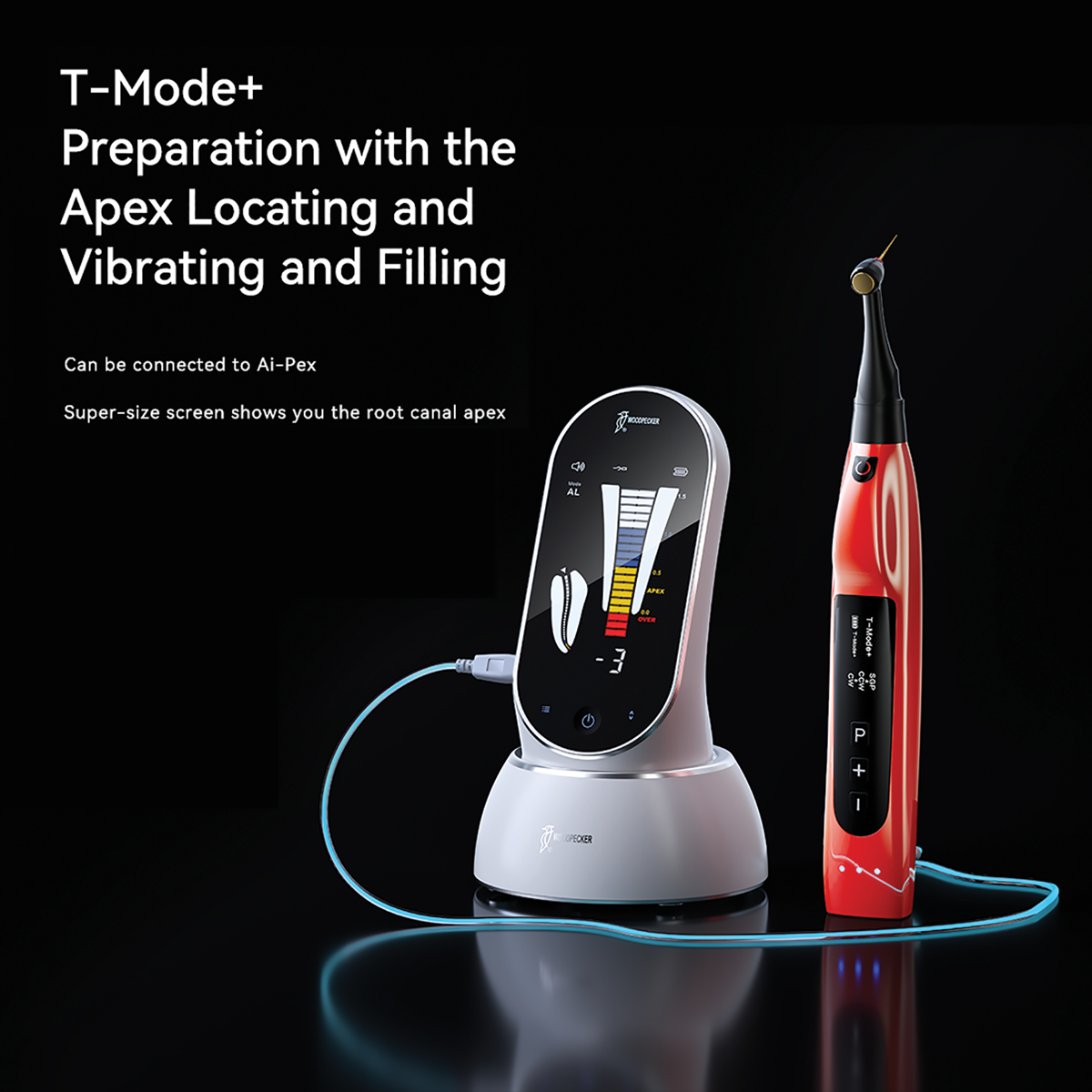

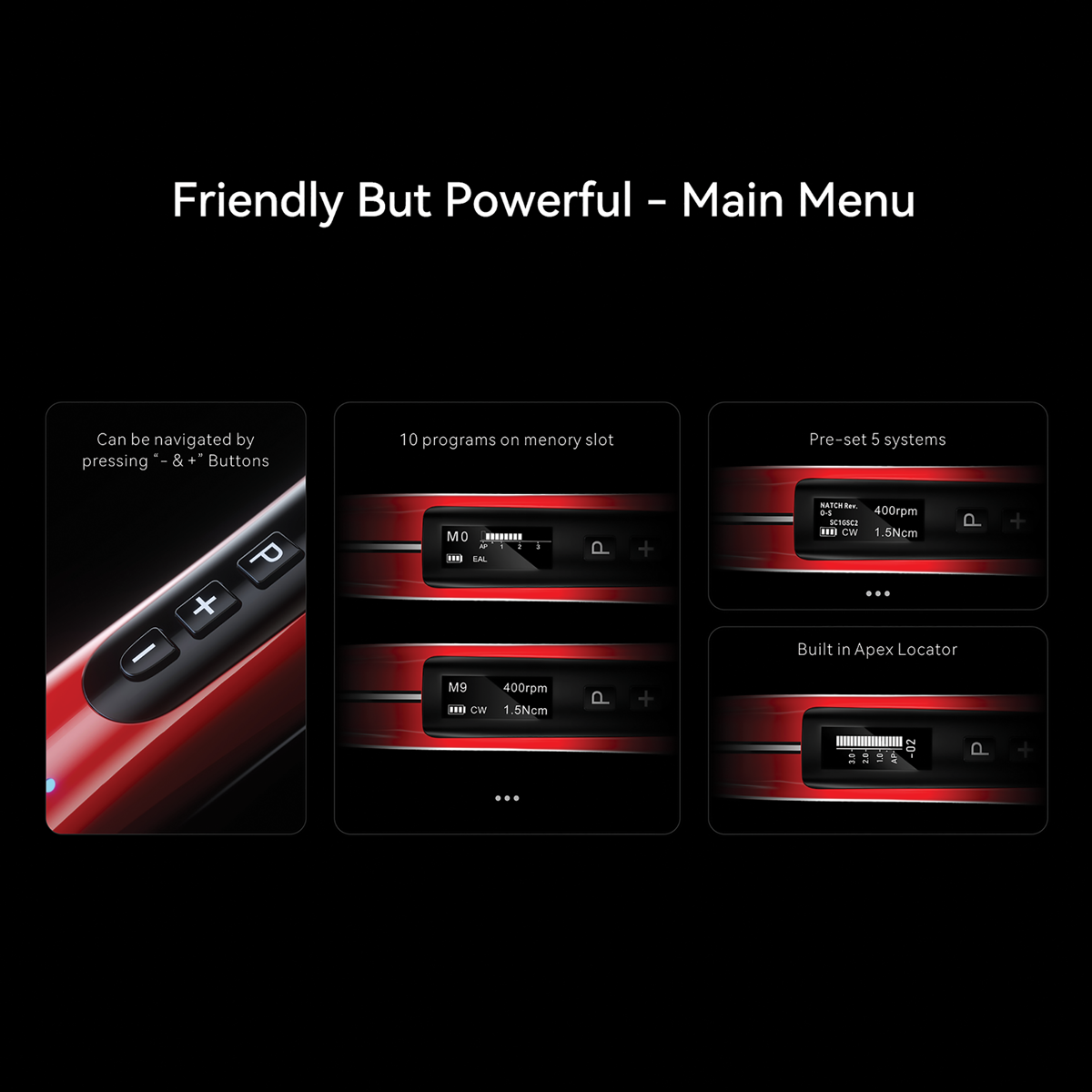

- 2-in-1 built-in apex locator with display on the handpiece.

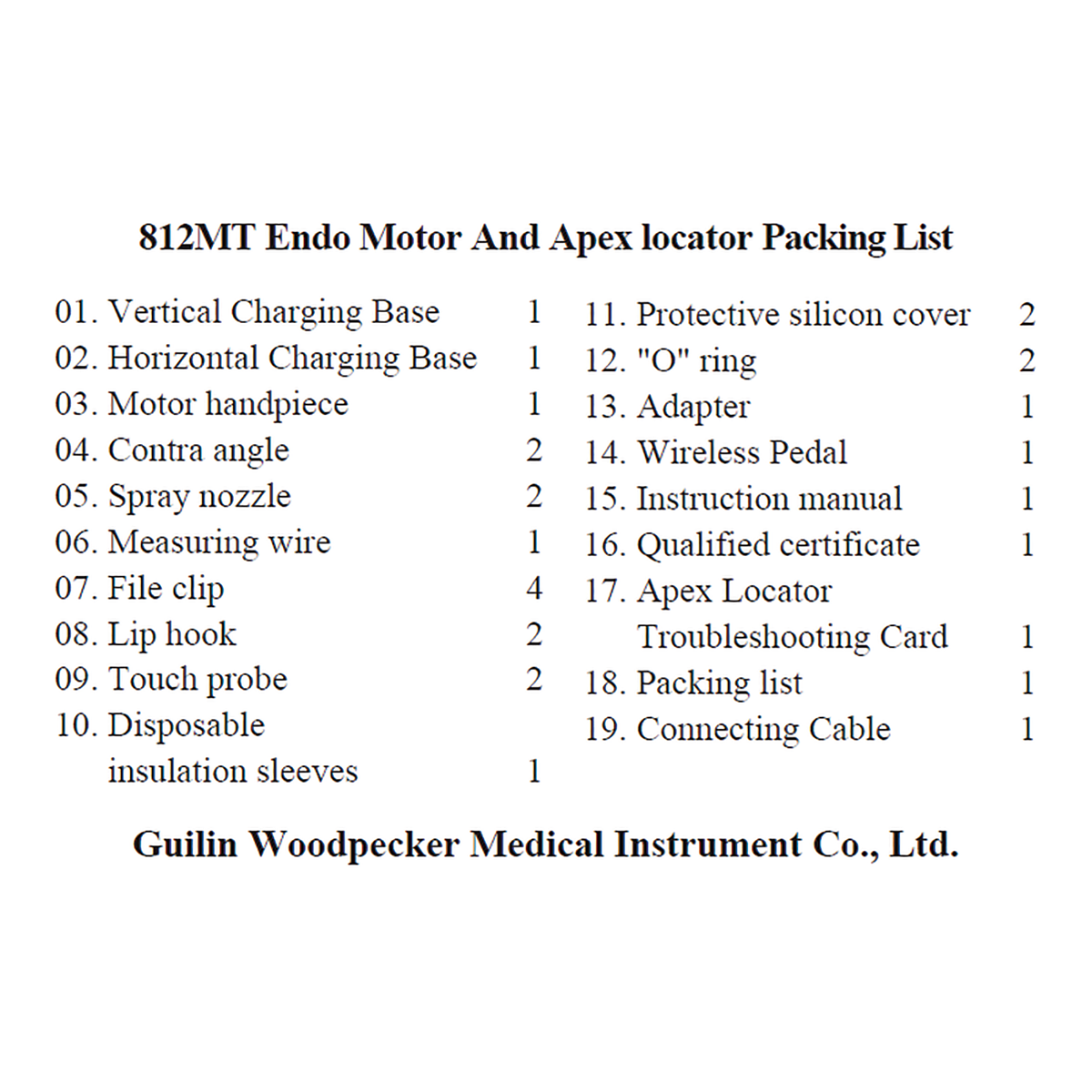

- Includes: Woodpecker 812 MT Endo Handpiece, (2) charging bases (horizontal and vertical), contra angle, spray nozzle, measuring wire, lip hook, file clip, touch probe, disposable sleeves, adapter, protective silicone cover, and a wireless foot pedal.

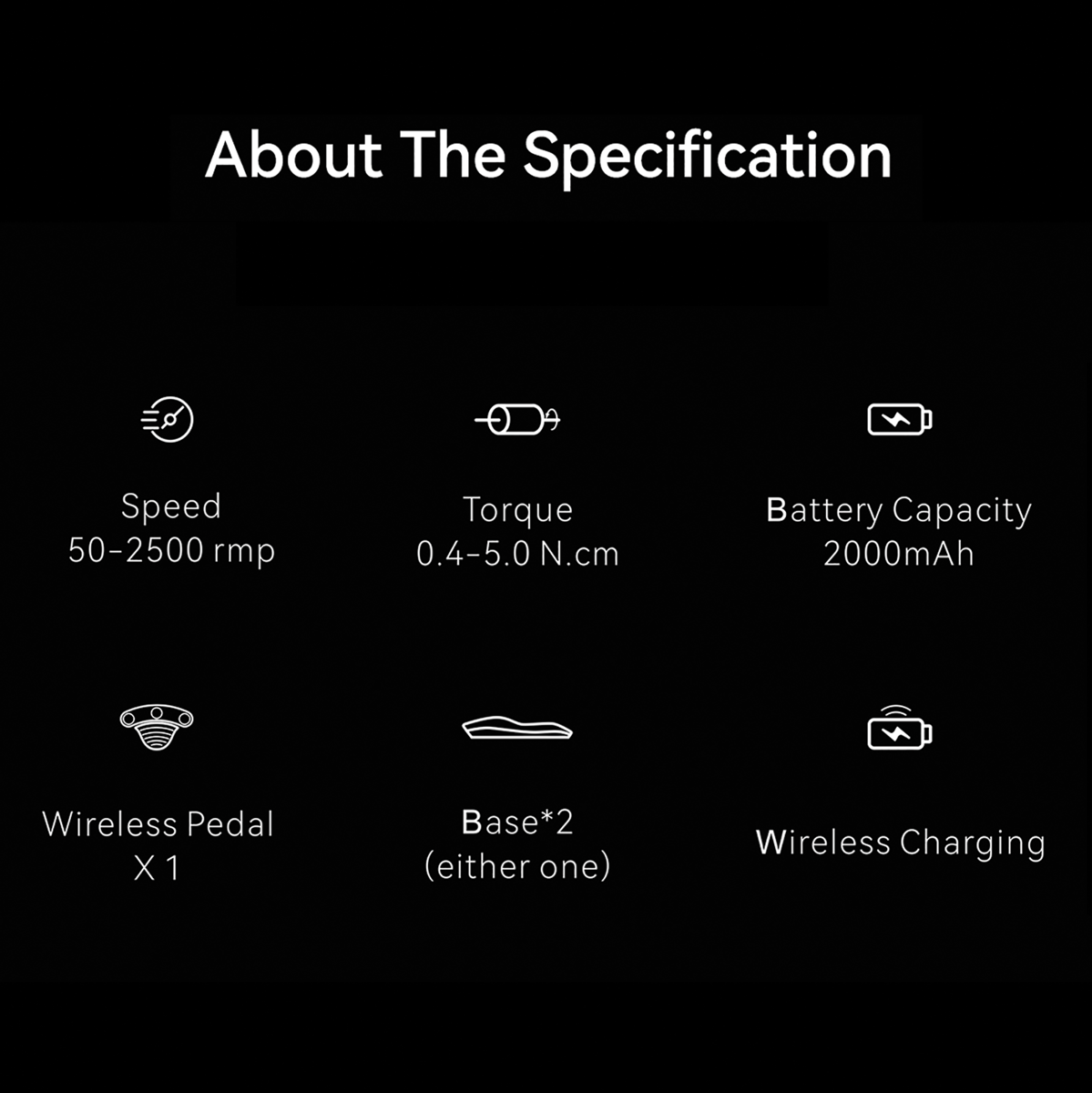

Technical Specifications:
- Lithium battery in motor handpiece: 3.7V /2000mAh
- Power adapter (Model: ADS-6AM-06N 05050/UE08WCP- 050100SPA)
Input: ~100V-240V 50Hz/60Hz 0.4A Max
Output: 5.0V 1A
- Torque range: 0.4N▪cm-5.0N▪cm (4mN▪m ~ 50mN▪m)
- Speed range: 50r/min~2500r/min
- Frequency of oscillation: 100Hz-250Hz
- Wireless charging - Frequency range: 112-205KHz; Maximum RF output power of the product: 3 0 .64dBuA/m@3m
- Bluetooth connecting (for Handpiece & Wireless Pedal) - Frequency range: 2402-2480MHz; Maximum RF output power: 4.63dBm for Handpiece, 5.73dBm for Wireless Pedal
Manufacturer Instruction Manual (link)
