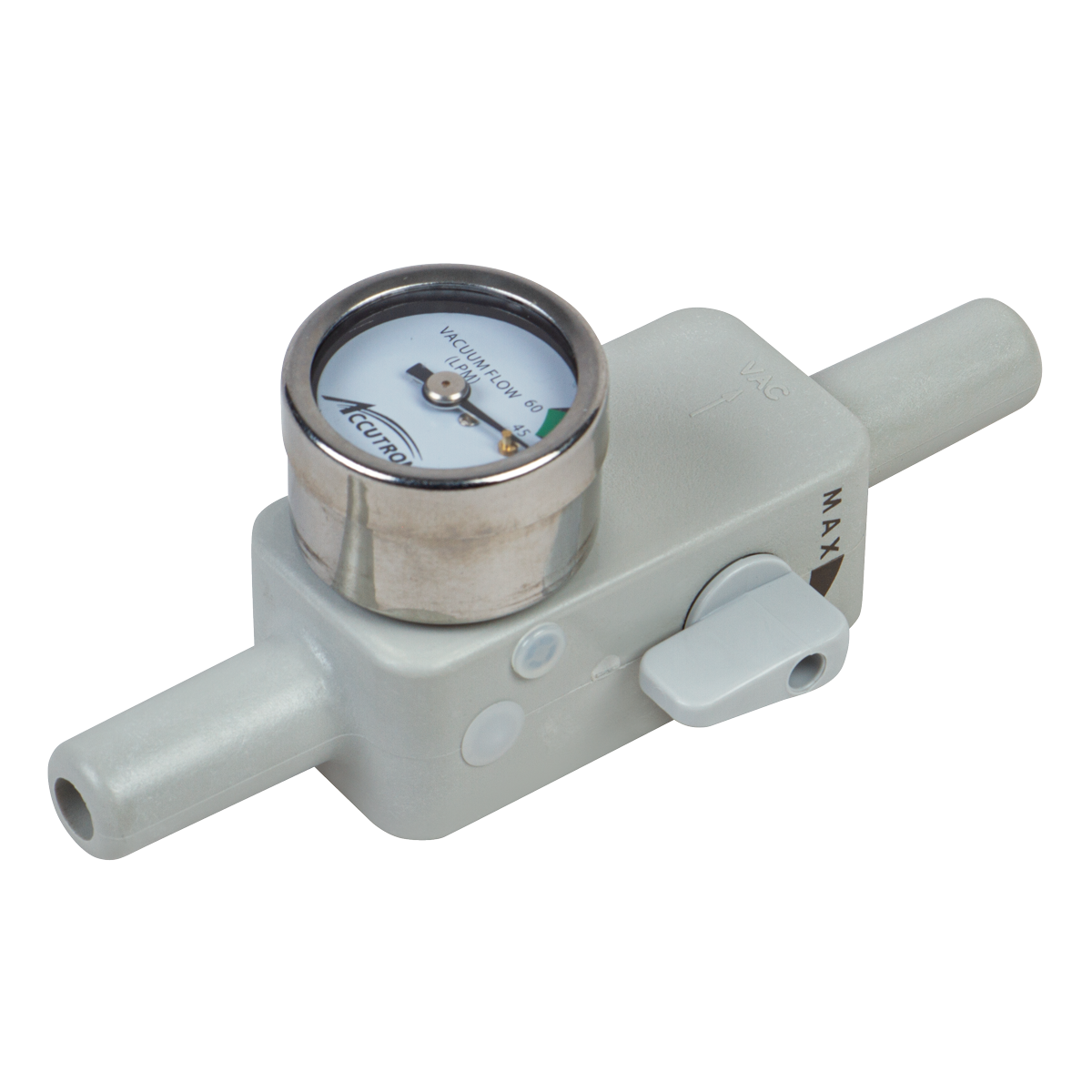

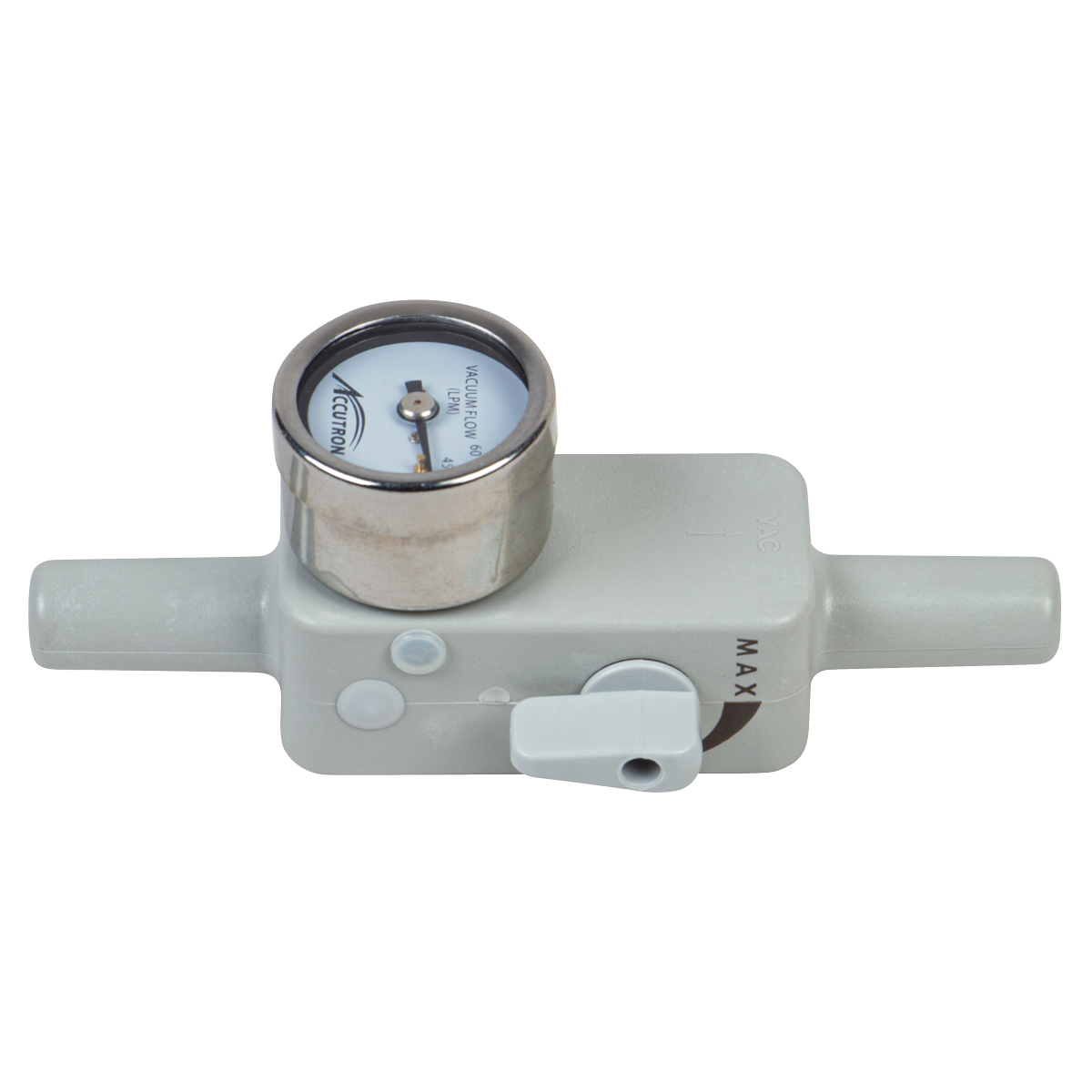

Scavenging Circuit Vacuum Gauge

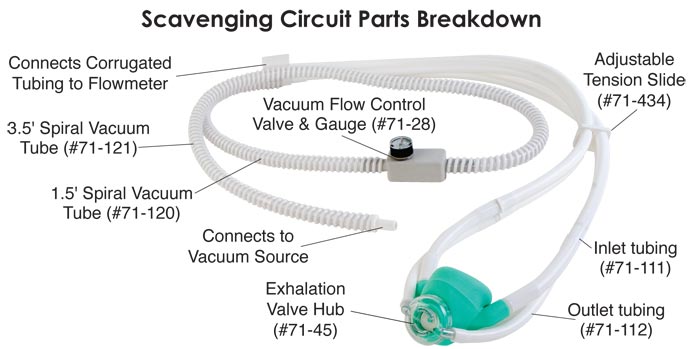

The Scavenging Circuit Vacuum Gauge is a critical safety component for nitrous oxide sedation systems, ensuring proper waste gas evacuation to protect dental staff from chronic exposure. This precision gauge monitors vacuum flow in real-time, allowing you to maintain optimal scavenging performance and comply with OSHA and NIOSH exposure guidelines. Specifically a replacement gauge for the P.I.P. scavenging circuits (#71-30 and #71-301).

Key Features:

• Color-Coded Green Zone: Easy-to-read gauge with green zone indicating optimal vacuum range (5-10 inHg)
• Precision Measurement: Accurate vacuum pressure monitoring in inches of mercury (inHg)
• Adjustable Control Knob: Side-mounted knob allows fine-tuning of vacuum flow during procedures
• Universal Compatibility: Works with Accutron and Belmed scavenging circuits
• Durable Construction: Built to withstand daily clinical use and repeated adjustments
• Direct Replacement: Exact fit for Personal Inhaler Plus Scavenging Circuits

Installation & Setup Instructions:

1. Verify Compatibility: Ensure your scavenging circuit is compatible (Accutron or Belmed systems).
2. Turn Off System: Shut down nitrous oxide delivery system and vacuum source.
3. Remove Old Gauge: If replacing, carefully disconnect the existing vacuum gauge.
4. Install New Gauge: Connect the new gauge to your scavenging circuit according to manufacturer specifications.
5. Restore Power: Turn on vacuum source and nitrous oxide system.
6. Adjust Vacuum Flow: Turn the control knob on the side of the gauge until the needle reaches the green zone (5-10 inHg).
7. Test Operation: Verify gauge responds properly to vacuum adjustments.
8. Document: Record gauge installation date for maintenance tracking.

Maintenance & Inspection:

• Daily: Verify gauge reads in green zone before each sedation procedure
• Weekly: Check control knob operates smoothly without sticking
• Monthly: Inspect all connections for leaks or wear
• Annually: Have gauge calibration verified by qualified technician
• Replace When: Gauge becomes unresponsive, cracked, or fails to maintain accurate readings
