RAM BP50 Brushless Lab Micromotor System

The BP50 brushless lab micromotor system by RAM Products offers high torque performance for your dental practice. Its brushless motor is totally sealed, along with a powerful magnet motor shaft in a sealed case, in order to eliminate noise and vibration.

Two Styles Available:

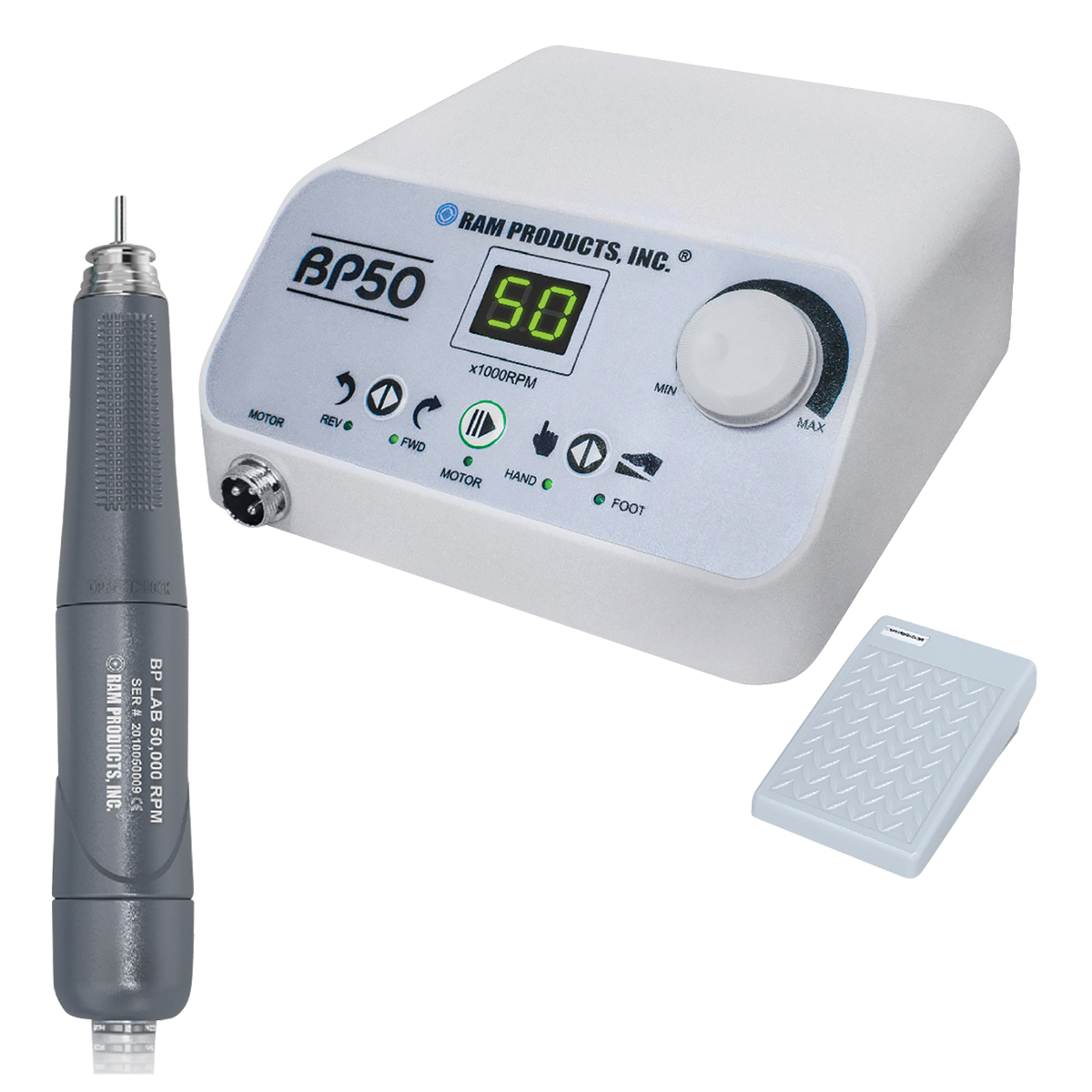

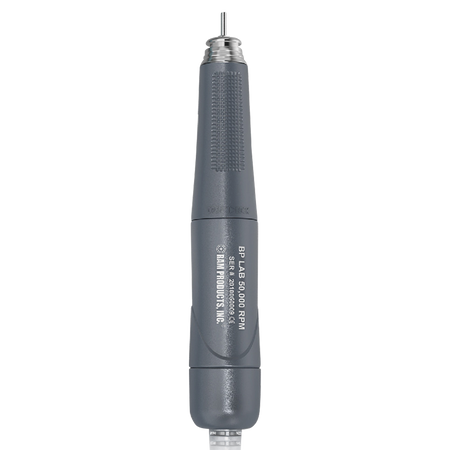

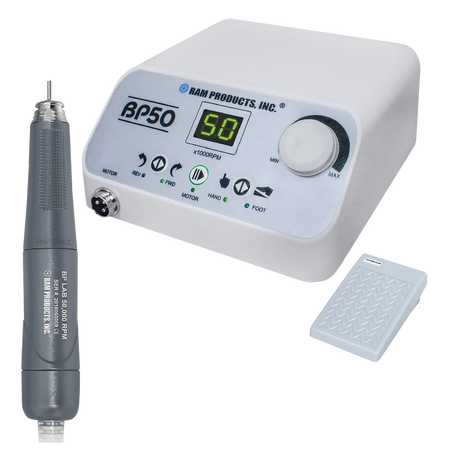

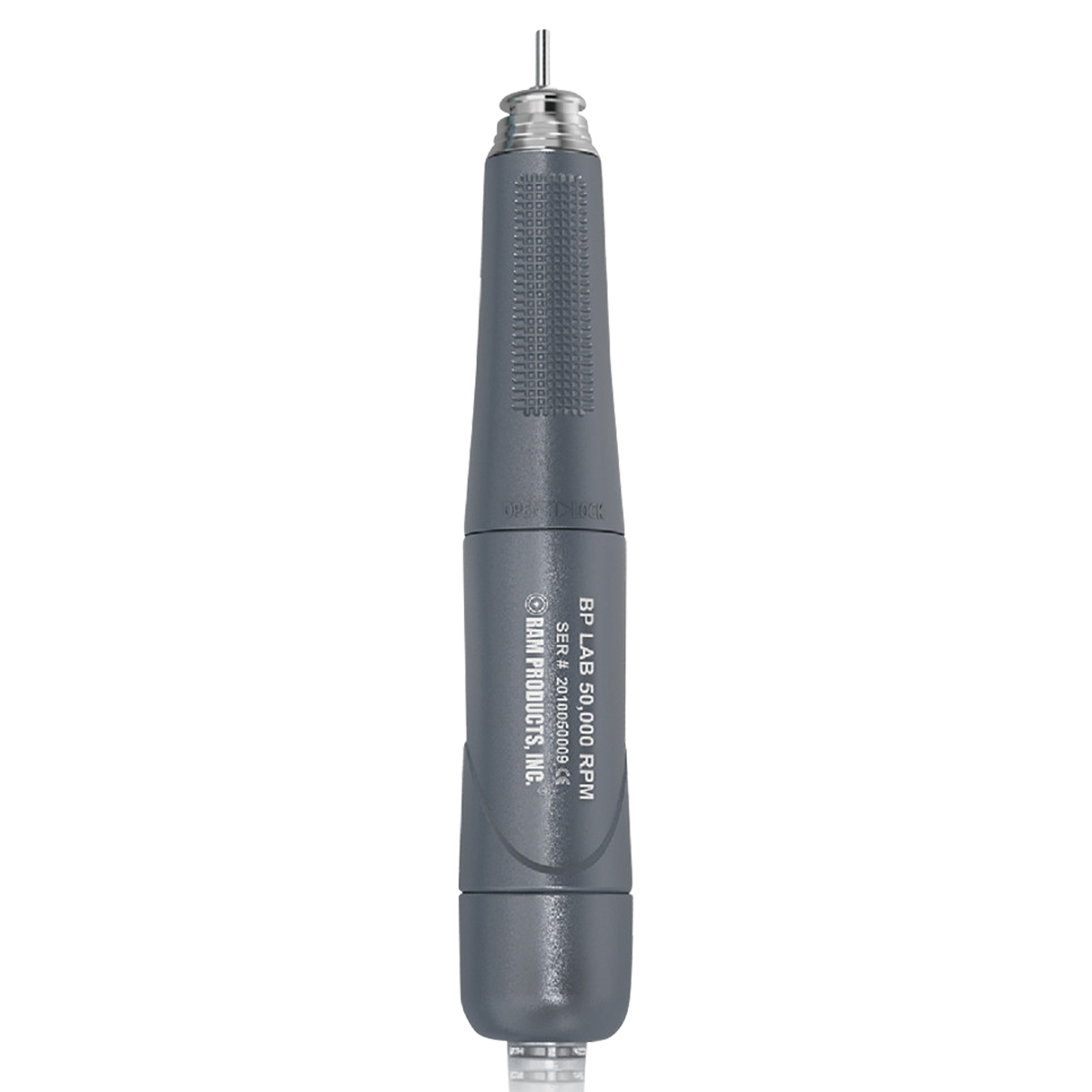

1. Regular Handpiece: has 7.8 Ncm torque, measures 6" x 11" - 16", and weighs 7 oz.

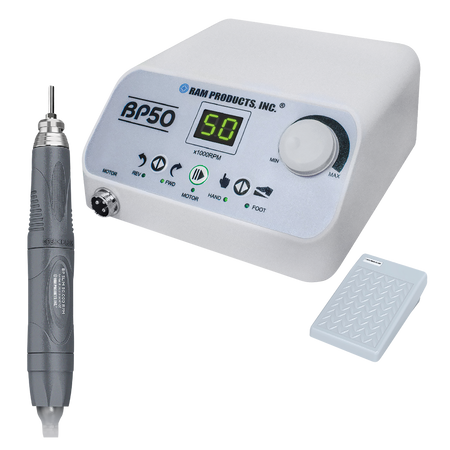

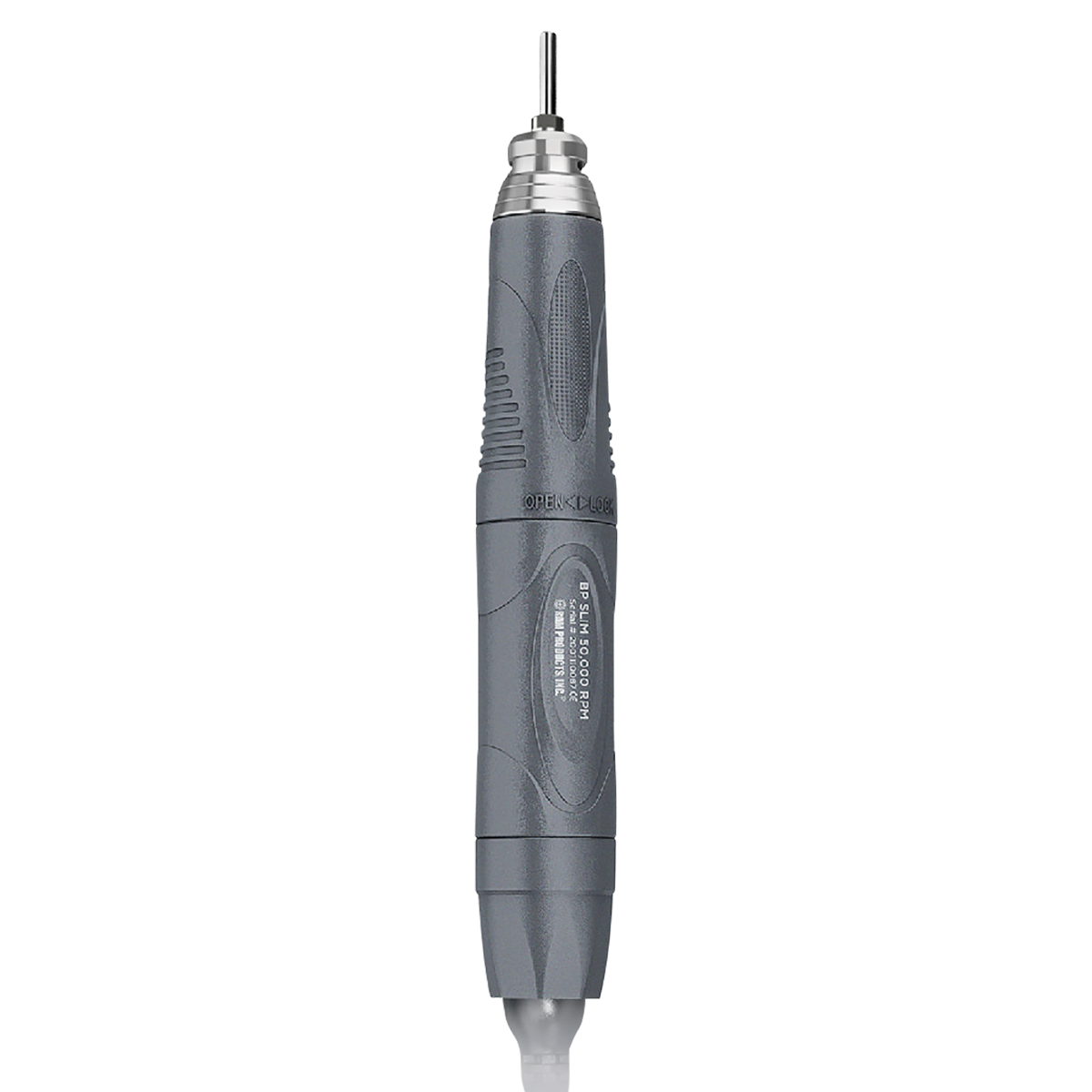

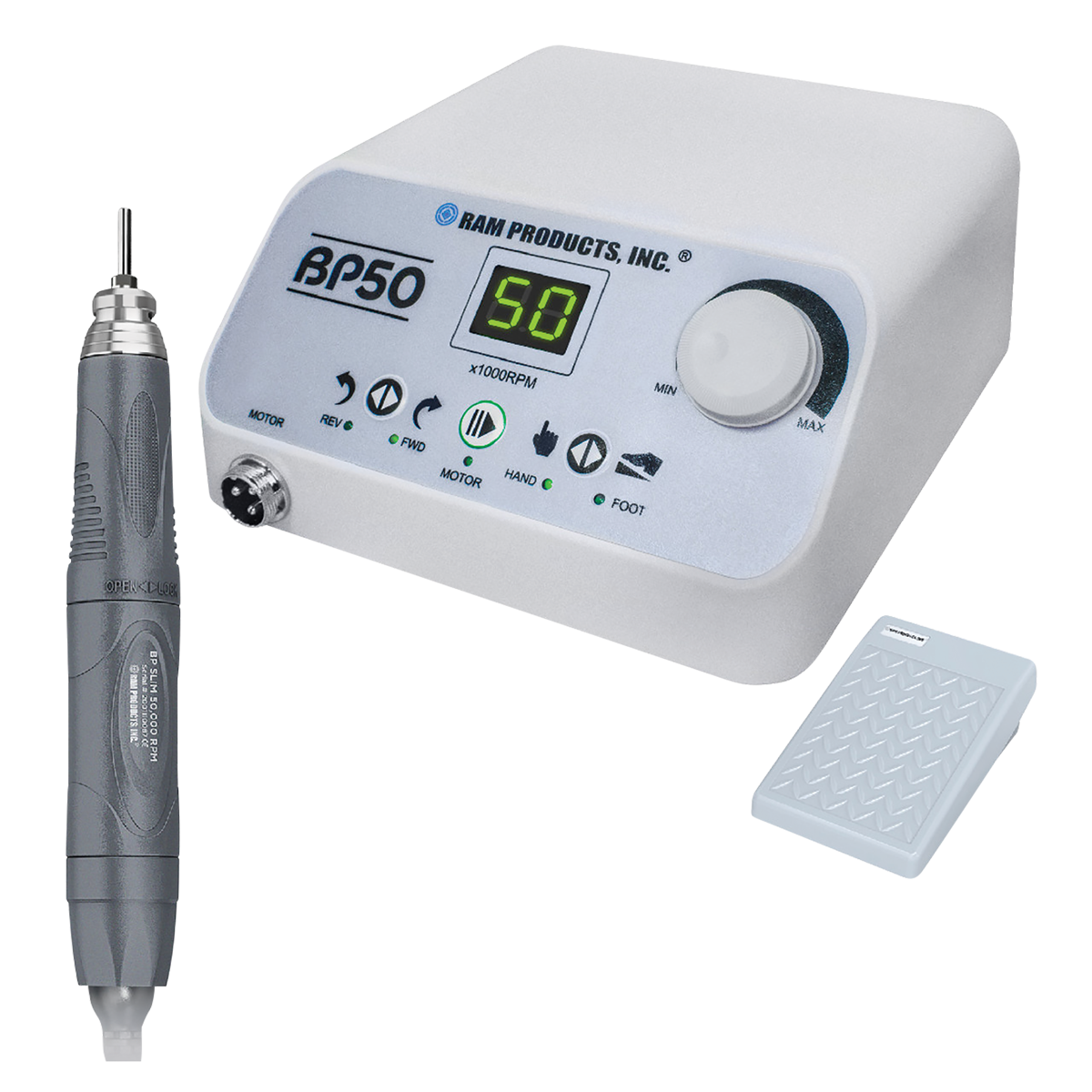

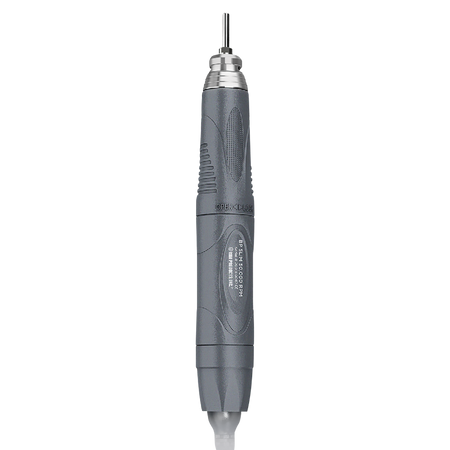

2. Slim Handpiece: has 7.2 Ncm torque, measures 6" x 11" - 16", and weighs 5.68 oz.

The BP50 slim handpiece style provides 20% lighter weight than the regular style of handpiece, while offering superior comfort with only 10% less torque. It has the exact same spindle and bearings as the regular style, but only a slightly different motor.

Product Features:

• Speed: 0 - 50,000 RPM.
• High torque and high power make it less likely to stall during use.
• High performance brushless motor runs better and quieter than brush-type motors.
• More power means greater productivity and comfort with less fatique.
• Has a flexible, coiled cord.
• Heavy duty bearings and spindle design.
• Sealed rear motor helps to eliminate dust, which means no cooling fan creating a louder lab handpiece experience.
• The BP50 control box features a LED display, forward or reverse rotation, standby mode for handpiece, hand or foot control, and a speed dial limits speed for safety.
• The variable foot control pedal helps to control the speed of the handpiece.
• Control Box Measurements: 6.8" L x 6.4" W x 3.2" H
• Control Box Weight: 3.43 lbs.
• Foot Pedal Measurements: 6.75" L x 4" W x 2.75" H
• Manufactury Warranty: For USA purchases only. Electrical components have a one year warranty. Handpieces have a 6 month warranty, but does not cover misuse, normal bearing, or carbon brush wear. Visit RAM Products for warranty claims HERE.

Owner's Manual for the RAM BP50 Lab System (link)

SHIPPING: The RAM BP50 Brushless Lab Micromotor System dropships from the manufacturer. Please allow 7-10 business days for shipping confirmation.
