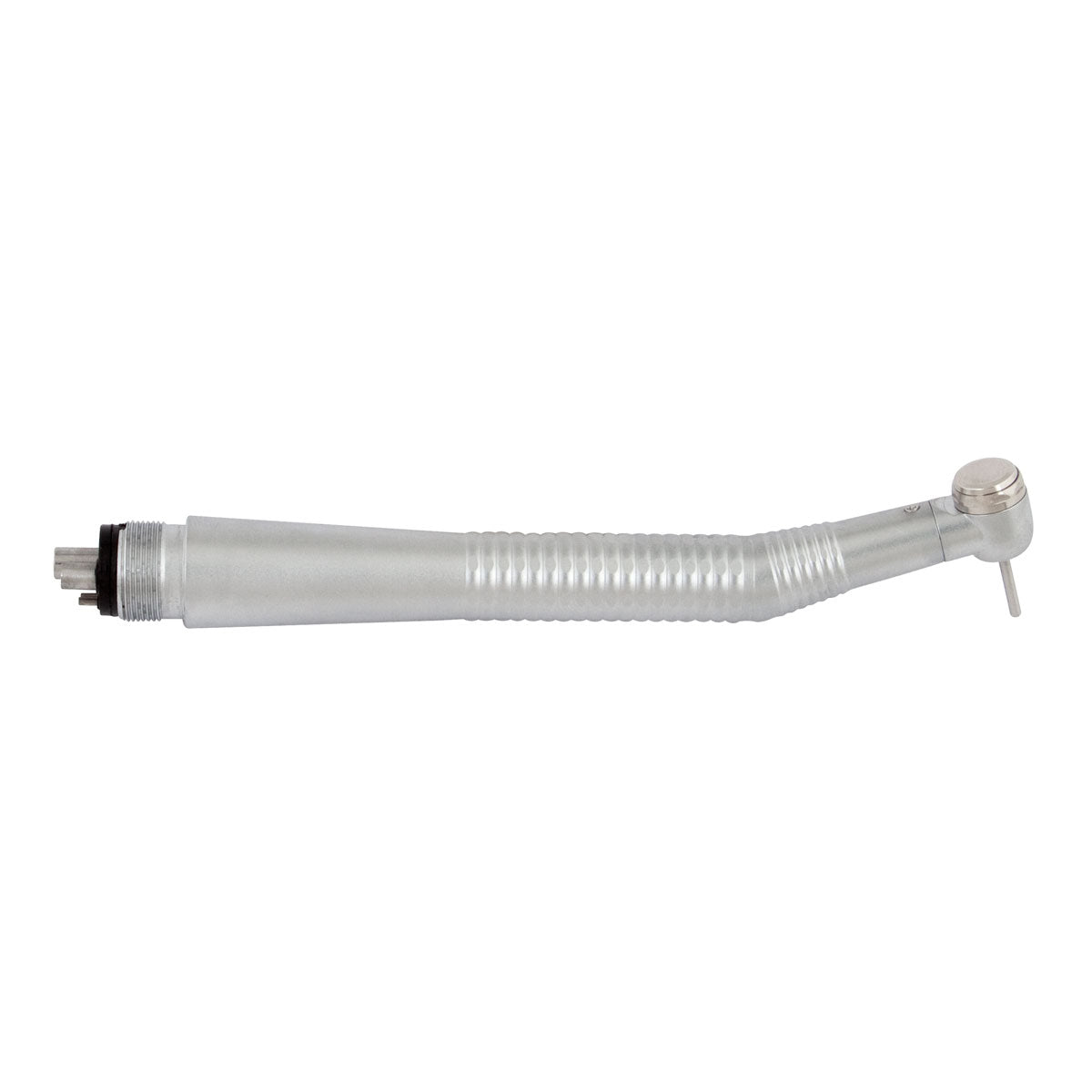

Mini Head Push Button Handpiece

Mini Head Push Button Handpiece

$198.95
Regular price

Product Number:

15-350
Unit price  per

Mini head push button handpiece with a 4 hole screw-on, non-swivel connector.

Product Details:

  • 400,000 RPM handpiece.
  • Gripped surface provides excellent tacticity.
  • Autoclavable.
  • One year warranty on handpiece.
  • Three month warranty on the push button canister.

Operating Instructions (PDF):

  1. Depress & hold end cap button to open chuck.
  2. Insert bur fully into turbine and release button to close chuck on the bur.
  3. Gently pull on bur with fingers to assure it is secured.
  4. Then with bur secured, test handpiece for proper function.
  5. Using gauge on your delivery system, verify drive air pressure is 30-35 psi. Adjust air & water coolant as desired for correct coolant spray pattern.
  6. Lastly if handpiece performs abnormally, re-install bur & check bur for damage. If bur is bent or otherwise damaged, then replace. If bur is intact and securely seated in turbine and handpiece still performs abnormally, then set aside. DO NOT USE ON A PATIENT until you are able to return handpiece to proper performance.

Replacement Parts for Push Button Handpiece:
Canister (#25-79)
Turbine (#25-78)
Connector gasket (#12-22)
End cap (#15-89-C)

  • Details

    Mini head push button handpiece with a 4 hole screw-on, non-swivel connector.

    Product Details:

    • 400,000 RPM handpiece.
    • Gripped surface provides excellent tacticity.
    • Autoclavable.
    • One year warranty on handpiece.
    • Three month warranty on the push button canister.

    Operating Instructions (PDF):

    1. Depress & hold end cap button to open chuck.
    2. Insert bur fully into turbine and release button to close chuck on the bur.
    3. Gently pull on bur with fingers to assure it is secured.
    4. Then with bur secured, test handpiece for proper function.
    5. Using gauge on your delivery system, verify drive air pressure is 30-35 psi. Adjust air & water coolant as desired for correct coolant spray pattern.
    6. Lastly if handpiece performs abnormally, re-install bur & check bur for damage. If bur is bent or otherwise damaged, then replace. If bur is intact and securely seated in turbine and handpiece still performs abnormally, then set aside. DO NOT USE ON A PATIENT until you are able to return handpiece to proper performance.

    Replacement Parts for Push Button Handpiece:
    Canister (#25-79)
    Turbine (#25-78)
    Connector gasket (#12-22)
    End cap (#15-89-C)
