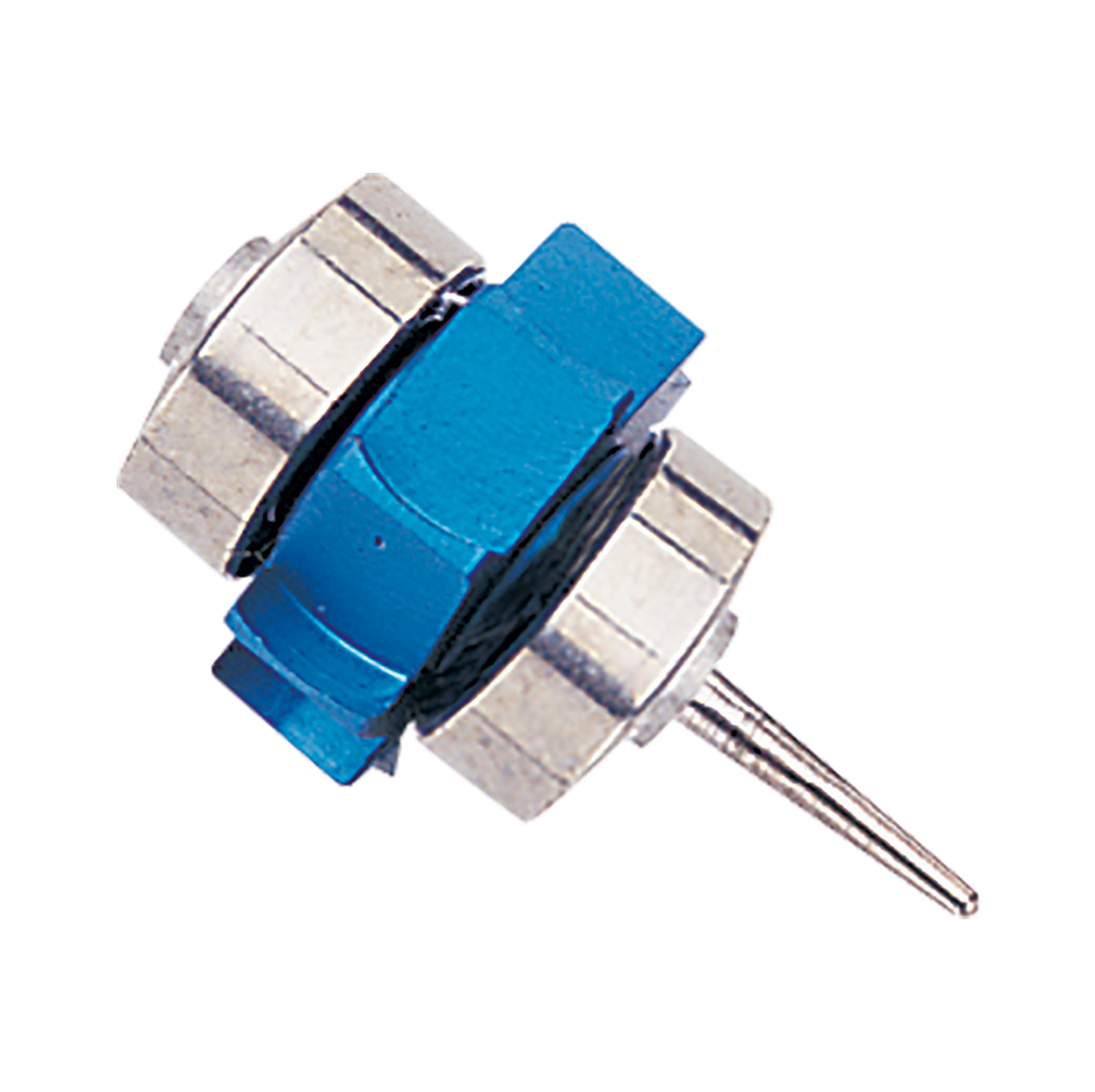

Lares 757 Push Button Turbine

Replacement turbine for the Lares 757 push button high-speed handpiece.

Product Details:

• End cap NOT included.
• Made in the USA.
• Turbine has a 6 month warranty.

Installation Instructions for Lares 757 Push Button Turbine (PDF):

1. Using specialized wrench provided with your handpiece, unscrew cap from handpiece head and remove worn turbine by pushing out from the front.
2. Inspect interior of head for foreign material and debris—remove if present.
3. Compare worn turbine to new turbine to identify any components that may still be present in your handpiece. Use a scaler or explorer to remove all old turbine components including any shims, o-rings, washers, or bearing retainers.
4. Once all old turbine components have been removed, use a cotton swab and handpiece lubricant to clean handpiece head. Using air from the air/water syringe, blow out handpiece head to remove any cotton fibers.
5. Generously lubricate the interior of the handpiece, paying particular attention to the o-rings.
6. Hold handpiece face down and insert turbine fully into handpiece head.
7. Using the appropriate tool, screw end cap down until flush against handpiece head.

Replacement Parts:

• End cap (#25-75-C)

• End cap wrench (#25-77-W)

• Spindle with impeller (#25-314)
