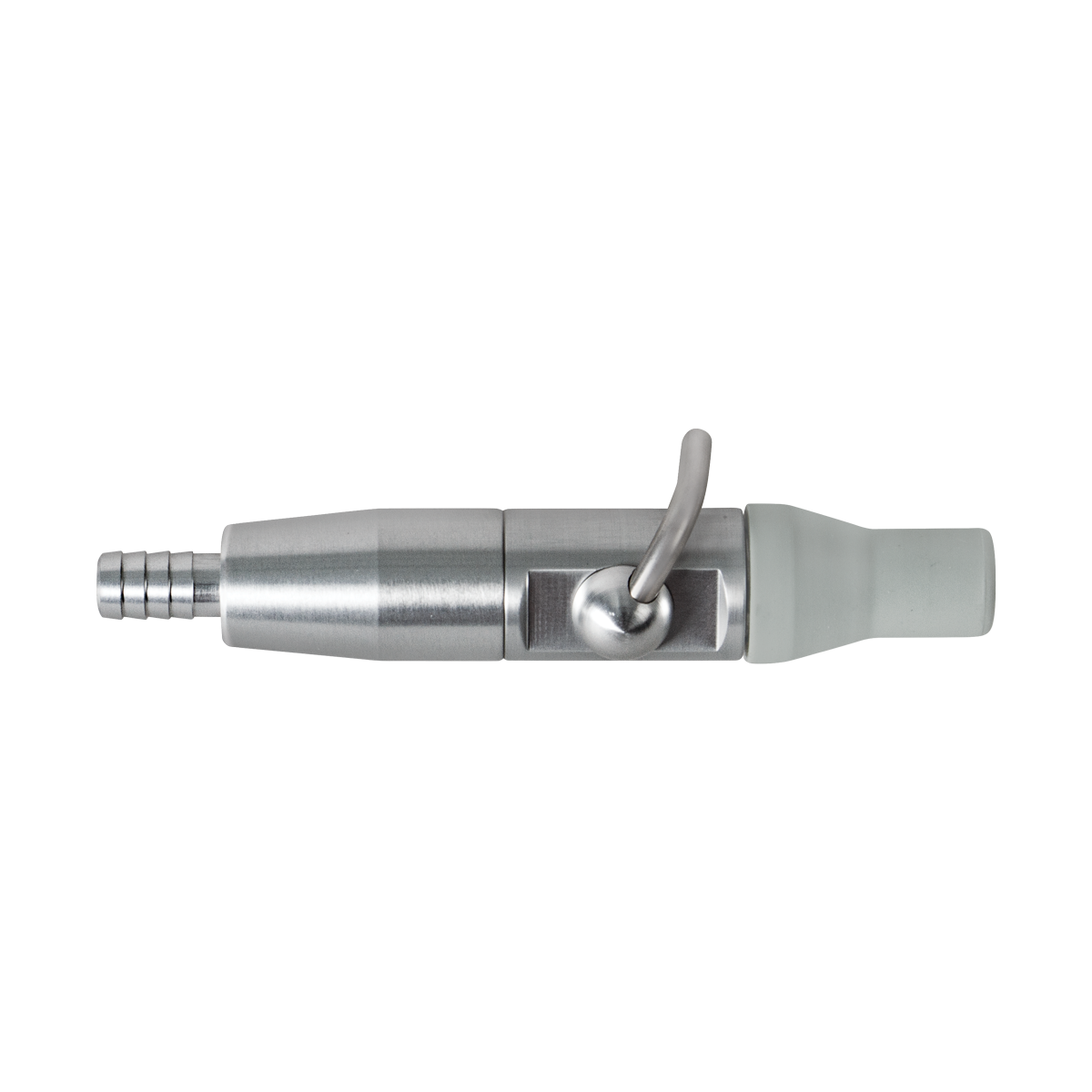

Aluminum Metal Lever SE Valve

Metal lever style saliva ejector (SE) valve with variable on/off vacuum control and a 360° swivel base connector.

Autoclavable aluminum valve is easily disassembled for cleaning, but should NOT be cleaned by sonic methods.

Installation Instructions (PDF):

1. Turn off vacuum.
2. Cut valve tubing directly below existing valve.
3. Attach the valve to the tubing by inserting the barbed base into your tubing. Dip the end of your tubing in hot water to make it easier to slide over the barb.

Replacement Parts for Metal Lever SE Valve:
On/off lever with valve cylinder (#03-935)
Valve cylinder o-ring (#03-19-SE)
Aluminum base connector (#03-24A)
White delrin base connector (#03-24)
Anti-back flow base connector (#05-63)
Base connector and tip o-ring (#03-43)
Rubber saliva ejector tip (#03-31 or #03-32)
Alcryn saliva ejector tip (#03-37 or #03-38)
Plastic debris basket (#18-99)
